Description
Wide range of available as Japanese high quality products

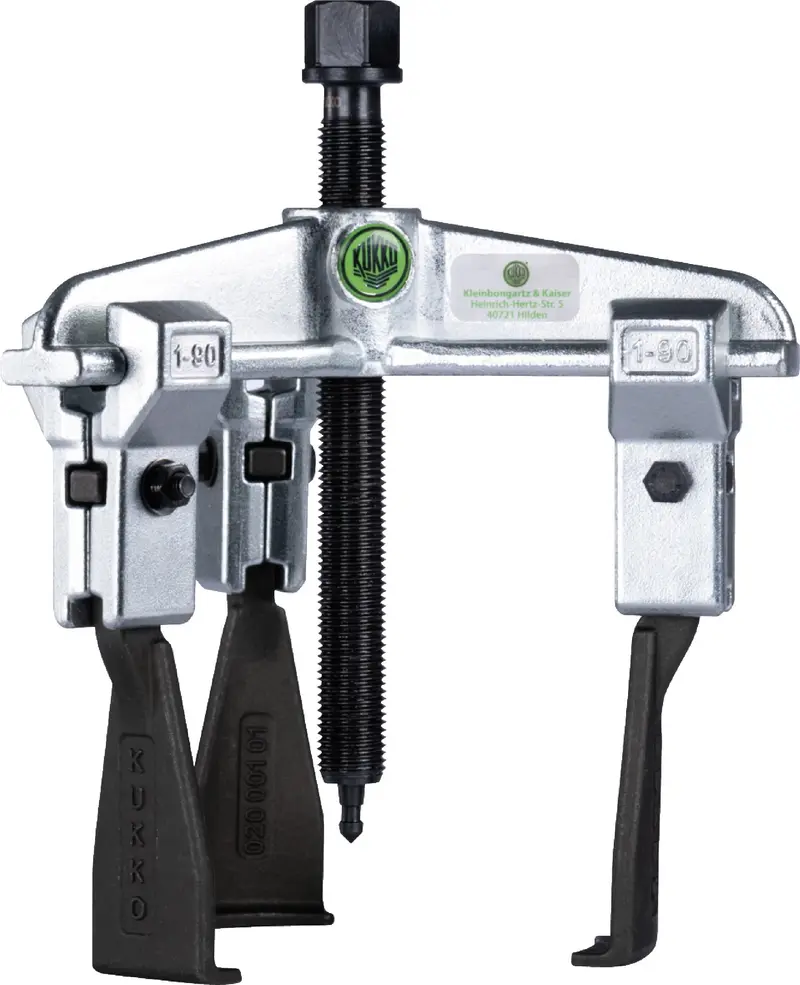

Equipment : KUKKO – 3-jaw Pullers with Narrow Jaws
KMVL P/N & Description : Below
| Parts number |
External Pulling Capacity (mm) |
Arm Length (mm) |
Maximum Load (t) |
Spindle Parts Number |
| 30-1-S | 27-90 | 100 | 3 | 614135 |
| 30-10-S | 27-130 | 100 | 3 | 614135 |
| 30-2-S | 35-160 | 150 | 5 | 621220 |
| 30-20-S | 35-200 | 150 | 5 | 621220 |
| 30-3-S | 46-250 | 200 | 7 | 626300 |
Description :
• For removing bearings, gears, discs, etc
• Thin pulling hooks.
• Parallel pulling hooks in every position, even with full load.
• Pulling hooks with infinitely variable adjustment on the cross-beam.
• Optimal adjustment of the spindle to the shaft with 2-sided spindle tip.
• Mechanical pressure screw.
Advantage :
• The thin pulling hooks are suitable for narrow, difficult-to-access locations.
• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
• Turning the pulling hooks enables them to be used both internally and externally.
• Suitable for pulling asymmetric workpieces.
• Spindle head band prevents the wrench from slipping off.
If you have any questions, please do not hesitate to contact us!
