Description
Wide range of available as Japanese high quality products

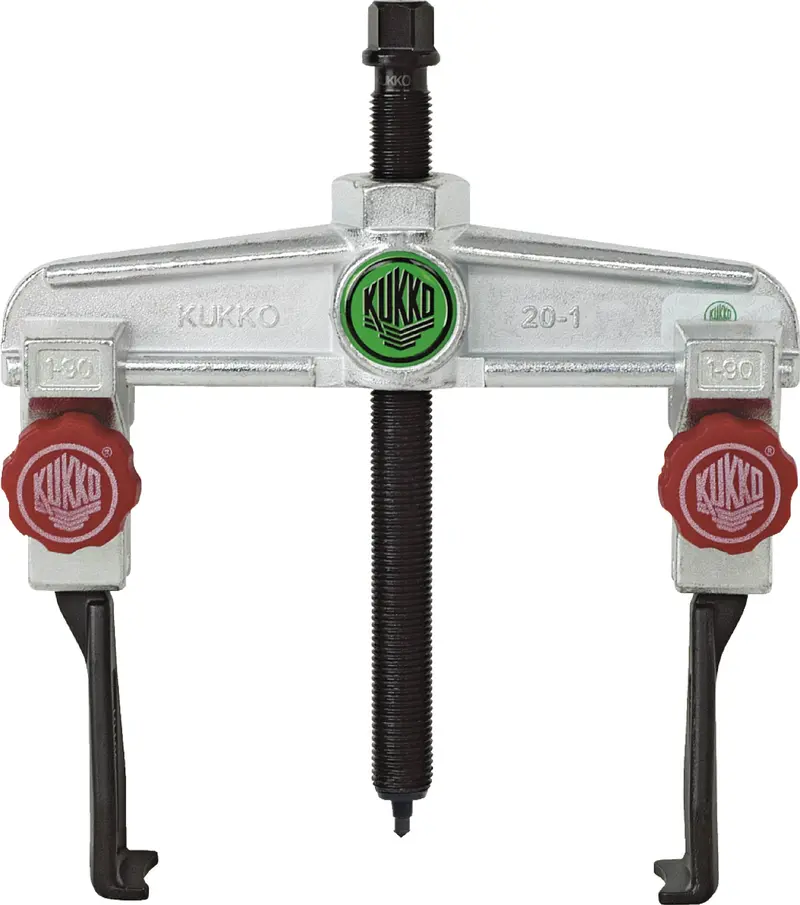

Equipment : KUKKO – 2-jaw Pullers with Narrow & Quickly Adjustable Jaws
KMVL P/N & Description : Below
| Parts number |
External Pulling Capacity (mm) |
Internal Pulling Capacity (mm) |
Arm Length (mm) |
Maximum Load (t) |
| 20-1+S | 4-90 | 70-140 | 100 | 2.5 |
| 20-10+S | 4-120 | 70-180 | 100 | 2.5 |
| 20-2+S | 16-160 | 100-220 | 150 | 5 |
| 20-20+S | 16-200 | 100-260 | 150 | 5 |
| 20-3+S | 21-250 | 180-340 | 200 | 9 |
| 20-30+S | 21-350 | 180-440 | 200 | 9 |
Description :

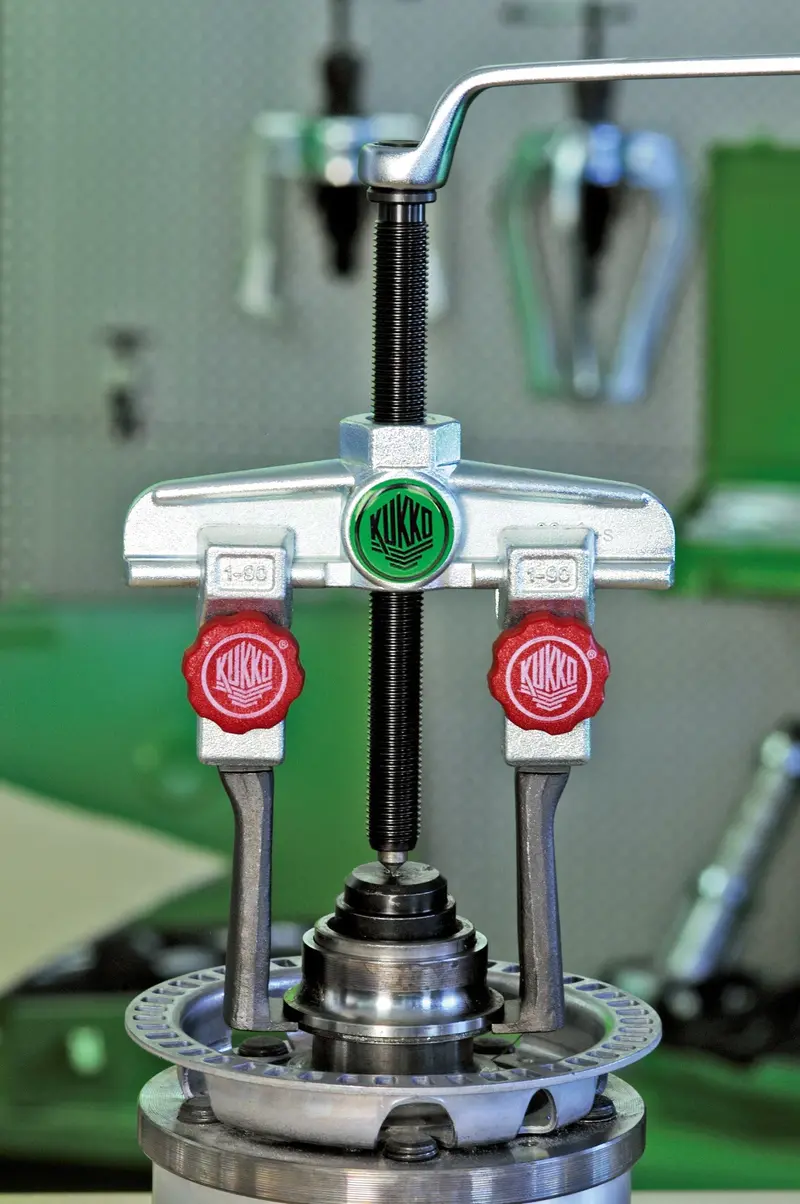

The 2-jaw universal puller with narrow, quickly adjustable jaws is used for the safe and user-friendly removal of bearings, gears, and discs in all common sizes for craft, workshop, and industry. This allows for the loosening of any component seated on a shaft and freely accessible from the outside. The narrow jaws ensure that even tight and hard-to-reach gaps can be accessed.
Advantage :
• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
• Narrow jaws grip optimally in tight and hard-to-reach places.
• Simple manual release of the jaws with hand knob (Quick Adjust Technology)
• Application also for eccentric components through freely movable, sliding puller jaws on the crossbar.
• Hexagonal profile on the crossbar for secure counterholding.
• Quick-adjustable jaws guarantee immediate adjustment to any spread between 4 mm – 350 mm.
If you have any questions, please do not hesitate to contact us!
