Description
Wide range of available as Japanese high quality products

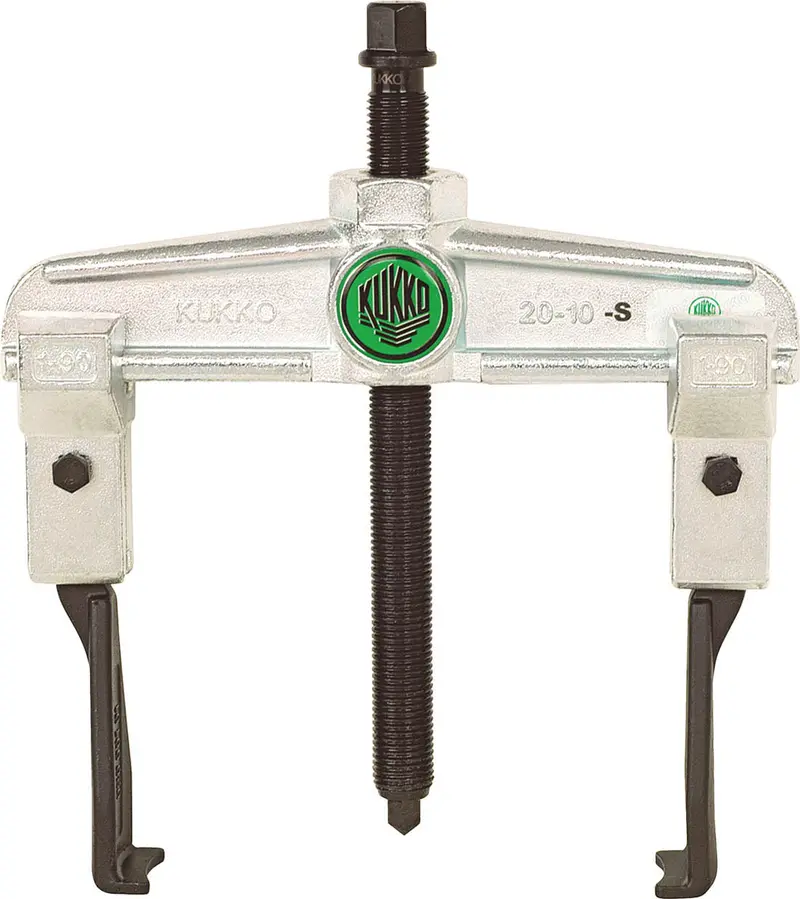

Equipment : KUKKO – 2-jaw Pullers with Narrow Jaws
KMVL P/N & Description : Below
| Parts number |
External Pulling Capacity (mm) |
Arm Length (mm) |
Maximum Load (t) |
Spindle Parts Number |
| 20-1-S | 30-90 | 100 | 2.5 | 614160 |
| 20-10-S | 30-120 | 100 | 2.5 | 614160 |
| 20-2-S | 40-160 | 150 | 5 | 621220 |
| 20-20-S | 40-200 | 150 | 5 | 621220 |
| 20-3-S | 65-250 | 200 | 7 | 626300 |
| 20-30-S | 65-350 | 200 | 7 | 626300 |
Description :

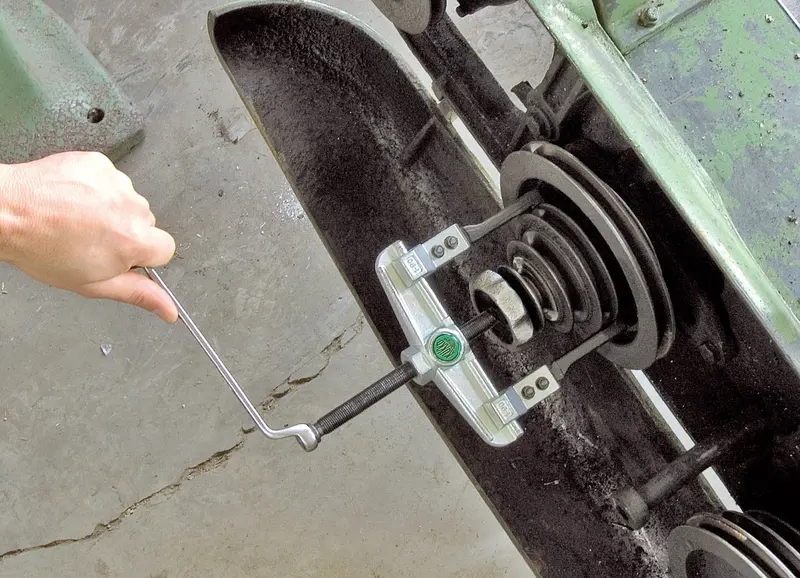

• For removing bearings, gears, discs, etc
• Thin pulling hooks.
• Parallel pulling hooks in every position, even with full load.
• Pulling hooks with infinitely variable adjustment on the cross-beam.
• Optimal adjustment of the spindle to the shaft with 2-sided spindle tip.
• Mechanical pressure screw.
Advantage :
• The thin pulling hooks are suitable for narrow, difficult-to-access locations.
• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
• Turning the pulling hooks enables them to be used both internally and externally.
• Suitable for pulling asymmetric workpieces.
• Spindle head band prevents the wrench from slipping off.
