Description
Wide range of available as Japanese high quality products
Equipment : KUKKO – Narrow Jaws for replacement
KMVL P/N & Description : Below
| Parts number |
Jaw Length (mm) |
Jaw Width (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Suitable for |
| 1-91-P | 100 | 127 | 3 | 30 | 7 | 14 | 3 | 20-1-S,20-10-S |
| 1-191-P | 200 | 227 | 3 | 30 | 7 | 14 | 3 | 20-1-S,20-10-S |
| 1-251-P | 250 | 277 | 3 | 30 | 7 | 14 | 3 | 20-1-S,20-10-S |
| 1-401-P | 400 | 427 | 3 | 30 | 7 | 14 | 3 | 20-1-S,20-10-S |
| 2-151-P | 150 | 186 | 4 | 32 | 8 | 19 | 4 | 20-2-S,20-20-S |
| 2-301-P | 300 | 336 | 4 | 32 | 8 | 19 | 4 | 20-2-S,20-20-S |
| 3-201-P | 200 | 244 | 6.5 | 35 | 17 | 52 | 6.5 | 20-3-S,20-30-S |
| 3-301-P | 300 | 340 | 6.5 | 35 | 17 | 52 | 6.5 | 20-3-S,20-30-S |
| 3-401-P | 400 | 440 | 6.5 | 35 | 17 | 52 | 6.5 | 20-3-S,20-30-S |
| 3-501-P | 500 | 540 | 6.5 | 35 | 17 | 52 | 6.5 | 20-3-S,20-30-S |
| 1-91-S | 100 | 127 | 3 | 30 | 7 | 14 | 3 | 30-1-S, 30-10-S |
| 1-191-S | 200 | 227 | 3 | 30 | 7 | 14 | 3 | 30-1-S, 30-10-S |
| 1-251-S | 250 | 277 | 3 | 30 | 7 | 14 | 3 | 30-1-S, 30-10-S |
| 1-401-S | 400 | 427 | 3 | 30 | 7 | 14 | 3 | 30-1-S, 30-10-S |
| 2-151-S | 150 | 186 | 4 | 32 | 8 | 19 | 4 | 30-2-S,30-20-S |
| 2-301-S | 300 | 336 | 4 | 32 | 8 | 19 | 4 | 30-2-S,30-20-S |
| 3-201-S | 200 | 244 | 6.5 | 35 | 17 | 52 | 6.5 | 30-3-S |
| 3-301-S | 300 | 340 | 6.5 | 35 | 17 | 52 | 6.5 | 30-3-S |
| 3-401-S | 400 | 440 | 6.5 | 35 | 17 | 52 | 6.5 | 30-3-S |
| 3-501-S | 500 | 540 | 6.5 | 35 | 17 | 52 | 6.5 | 30-3-S |

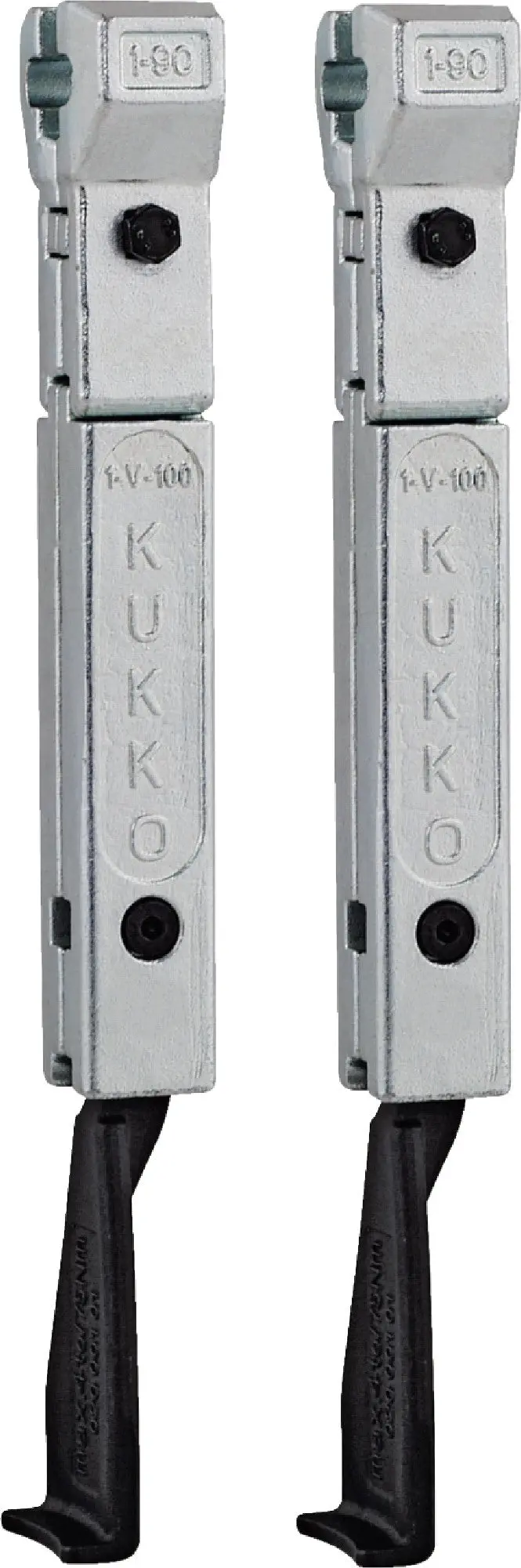

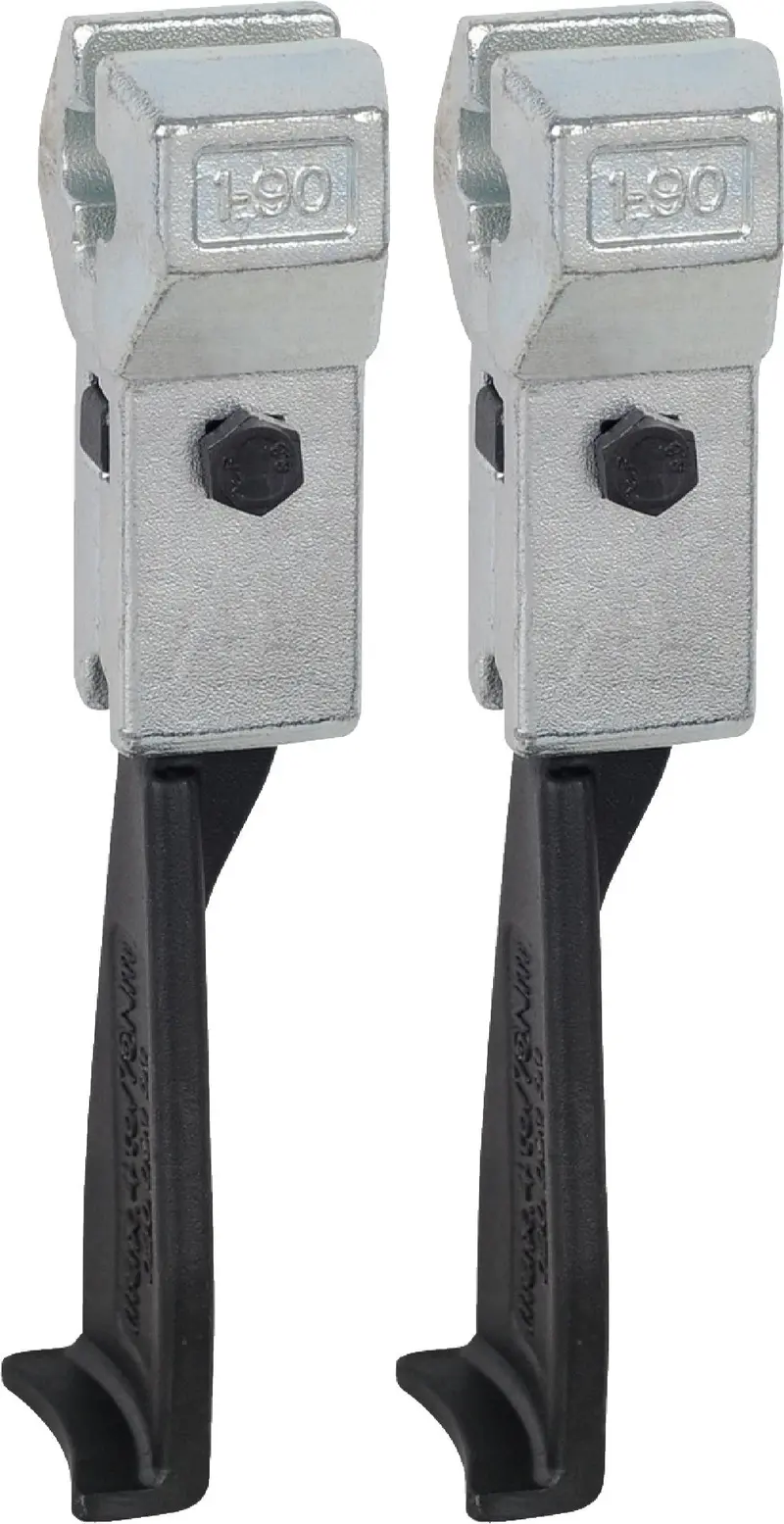

* -P = For 2-jaws (2 jaws are included per 1pc)

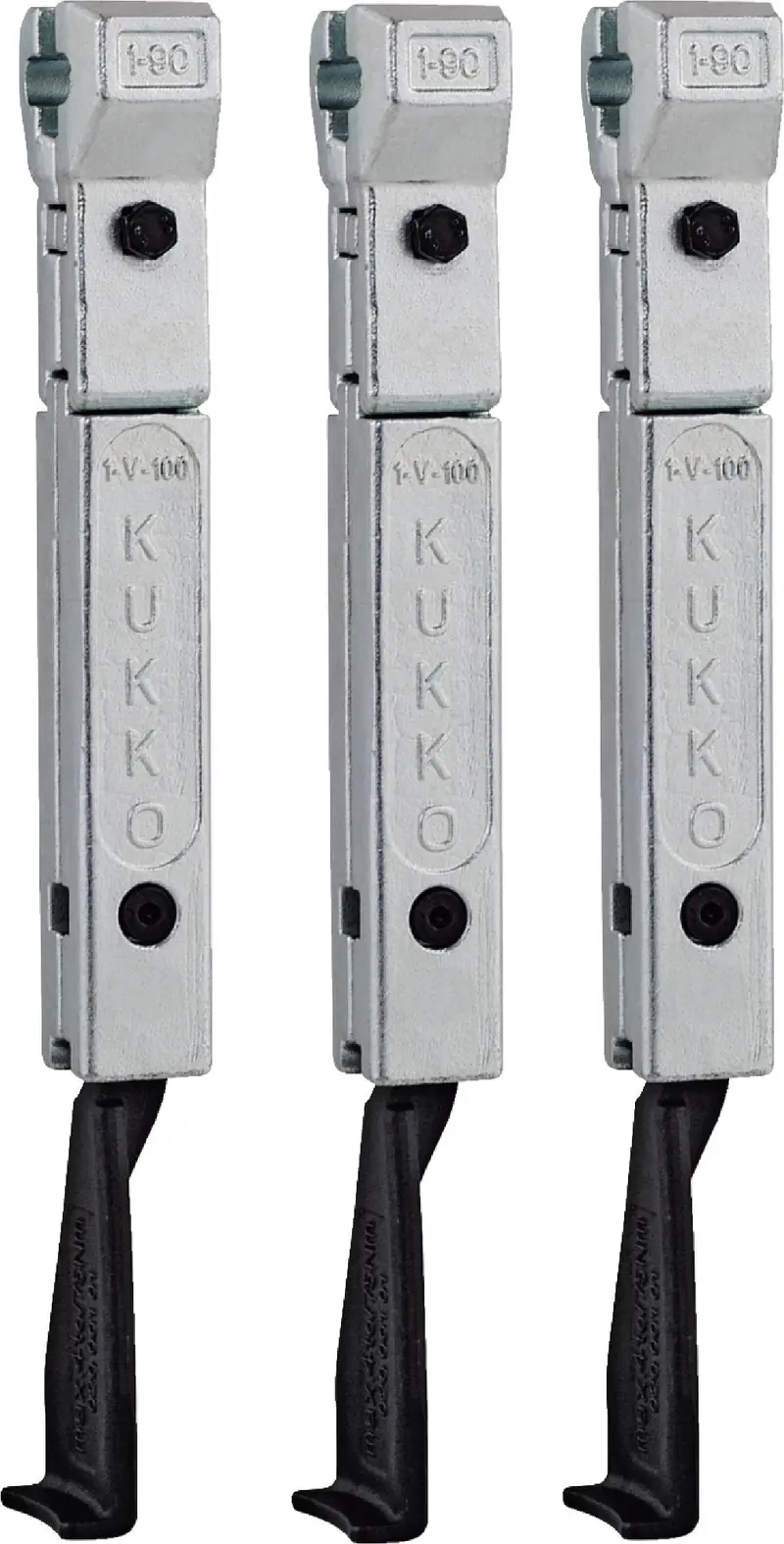

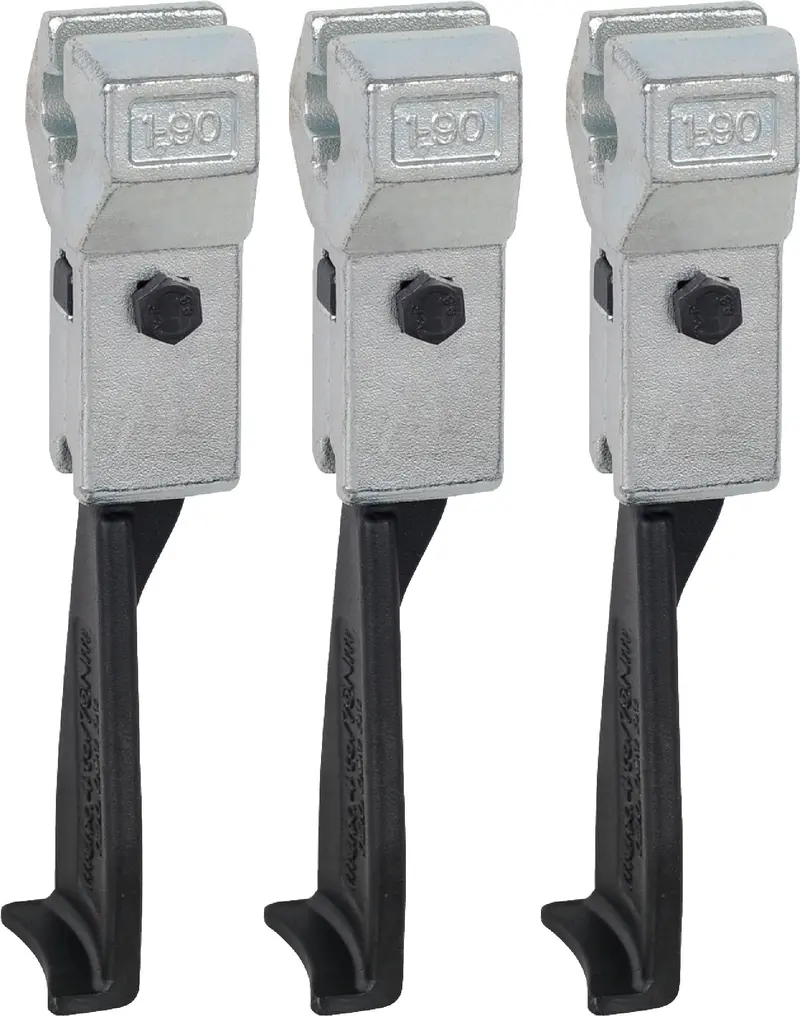

* -S = For 3-jaws (3 jaws are included per 1pc)
Description :
The narrow jaws ensure that even tight and hard-to-reach spaces can be accessed.
Advantage :
・Through the freely movable, gliding jaws on the crossbar, even eccentric components can be removed.
