Description
Wide range of available as Japanese high quality products

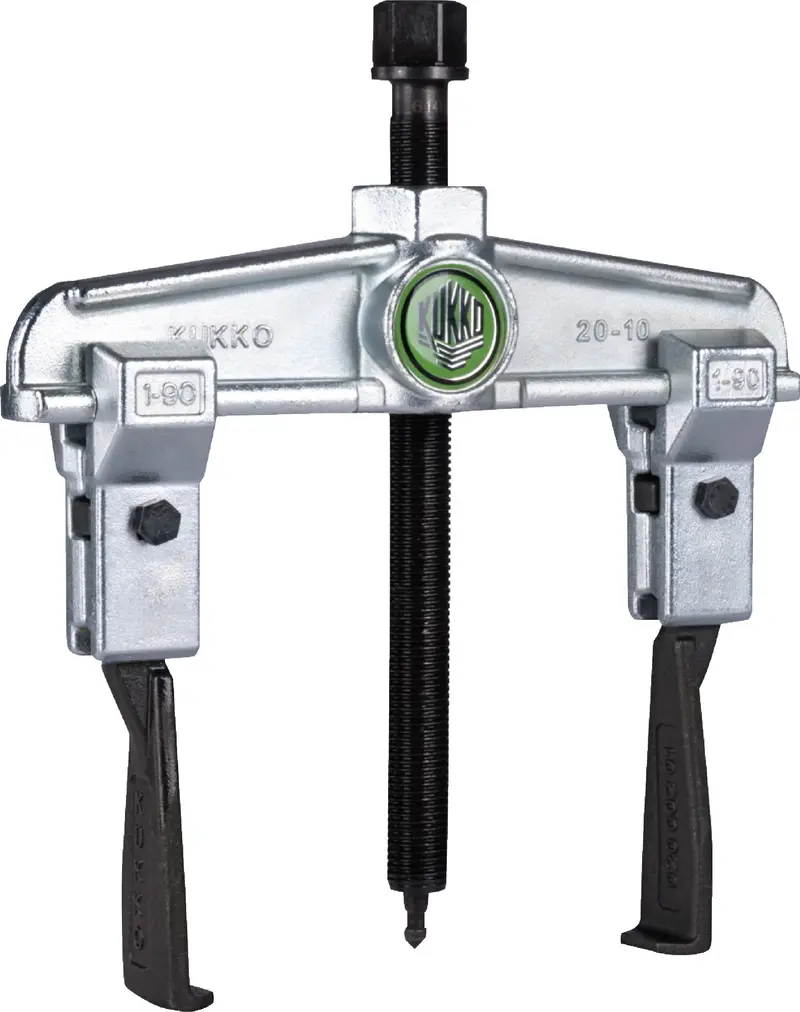

Equipment : KUKKO – 2-jaw Pullers with Extremely Narrow Jaws
KMVL P/N & Description : Below
| Parts number |
External Pulling Capacity (mm) |
Arm Length (mm) |
Maximum Load (t) |
Spindle Parts Number |
| 20-1-S-T | 30-90 | 100 | 20 | 614160 |
| 20-10-S-T | 30-120 | 100 | 15 | 614160 |
Description :
• For removing gears, bearings, sprockets, synchronizer bodies, etc
• Extra-thin trapezoidal pulling hooks.
• Parallel pulling hooks in every position, even with full load.
• Pulling hooks with infinitely variable adjustment on the cross-beam.
• Optimal adjustment of the spindle to the shaft with 2-sided spindle tip.
• Mechanical pressure screw.
Advantage :
• The narrow, trapezoidal pulling jaws are suitable for extremely narrow, difficult to access places.
• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
• Turning the pulling hooks enables them to be used both internally and externally.
• Suitable for pulling asymmetric workpieces.
• Spindle head band prevents the wrench from slipping off.
If you have any questions, please do not hesitate to contact us!
