Description
Wide range of available as Japanese high quality products

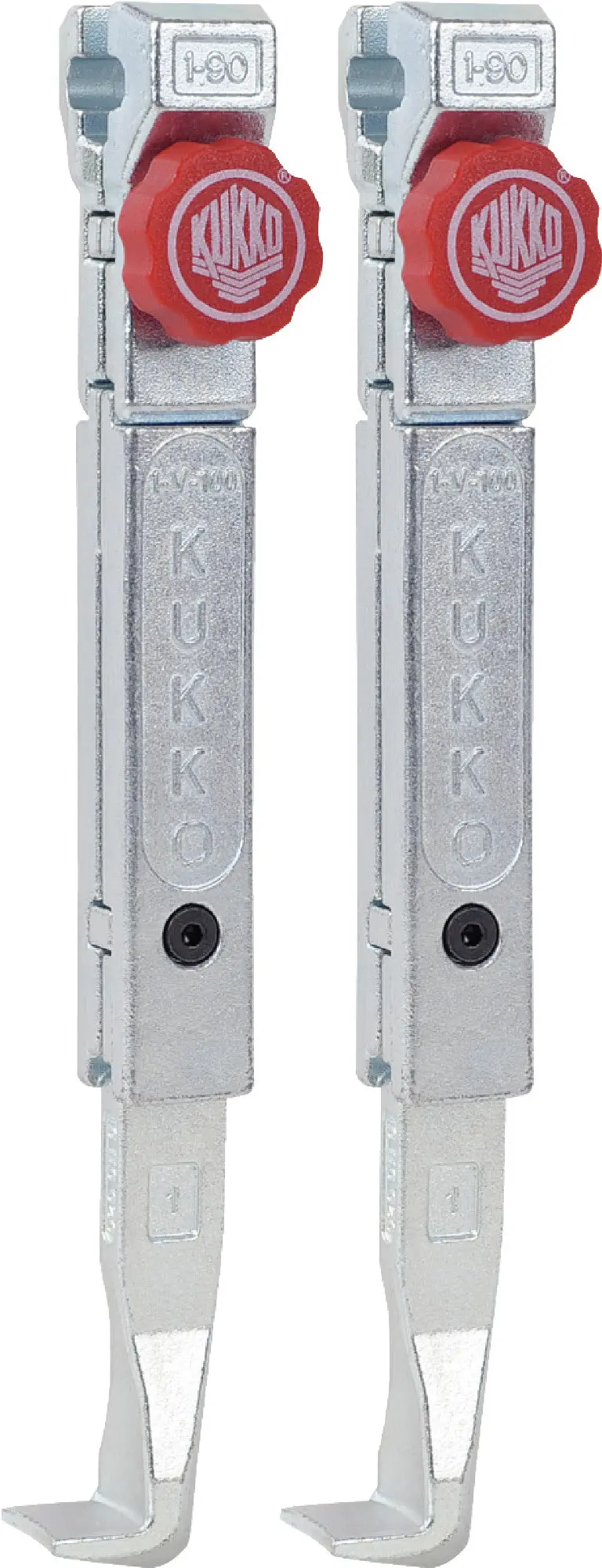

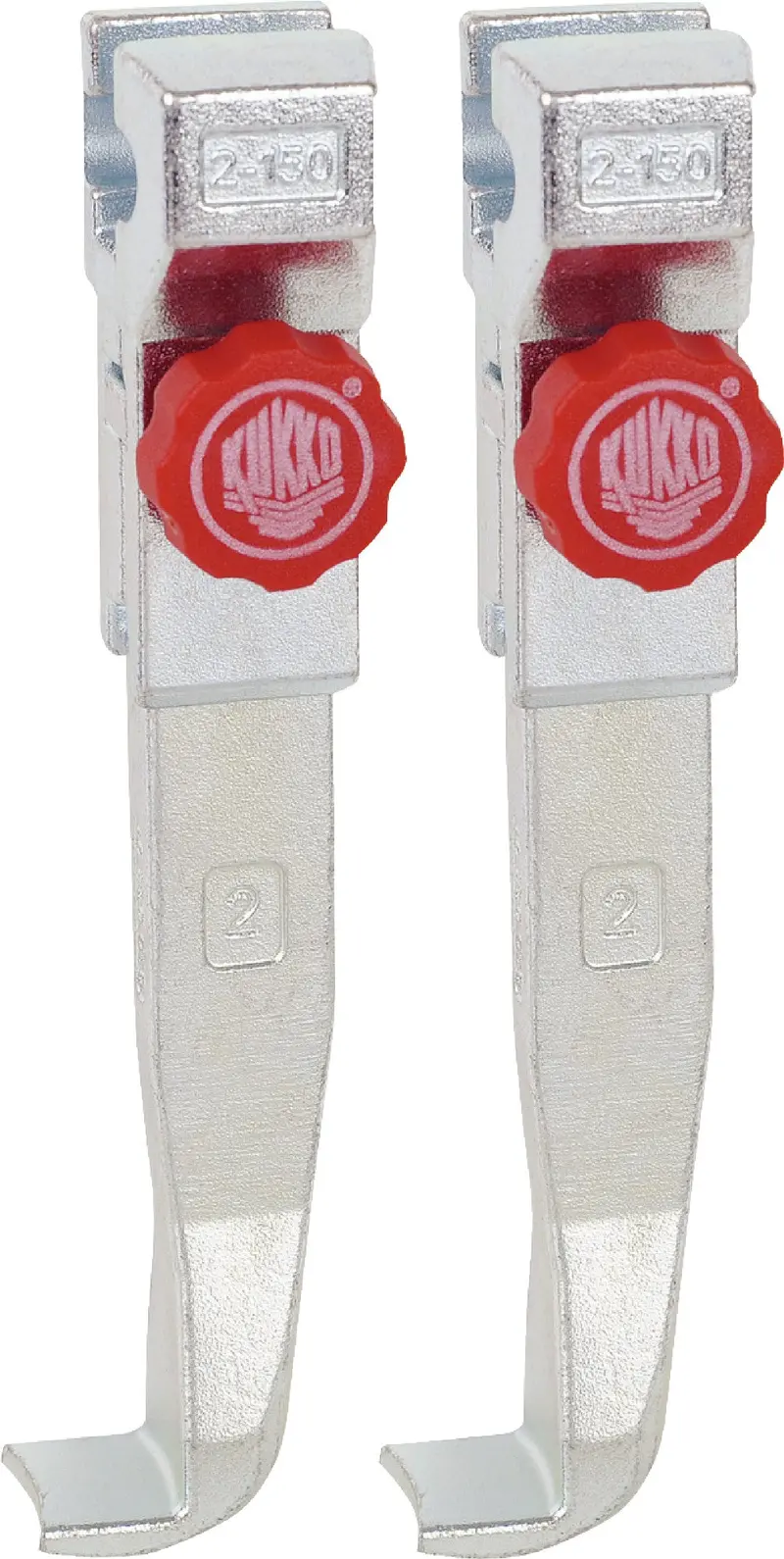

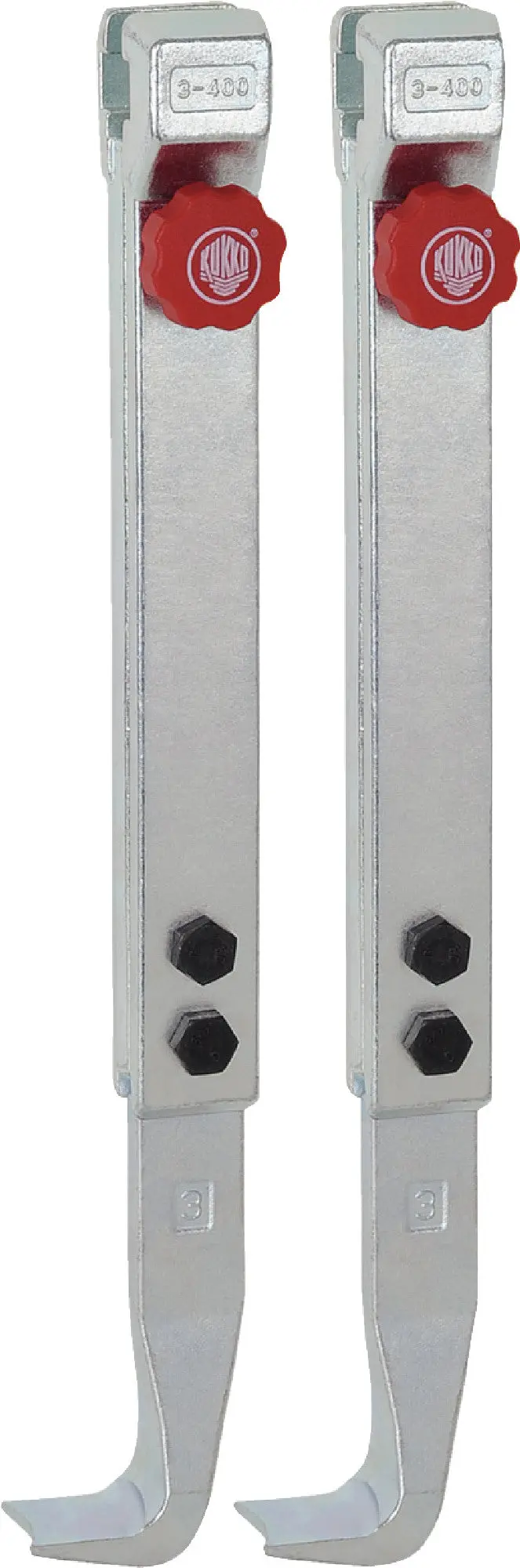

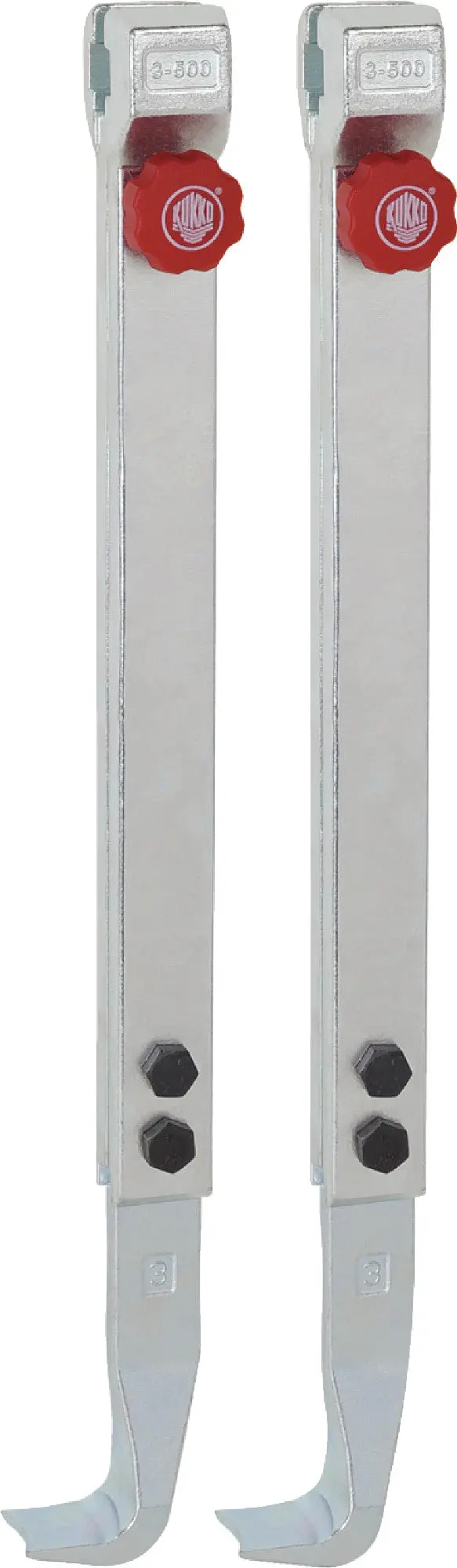

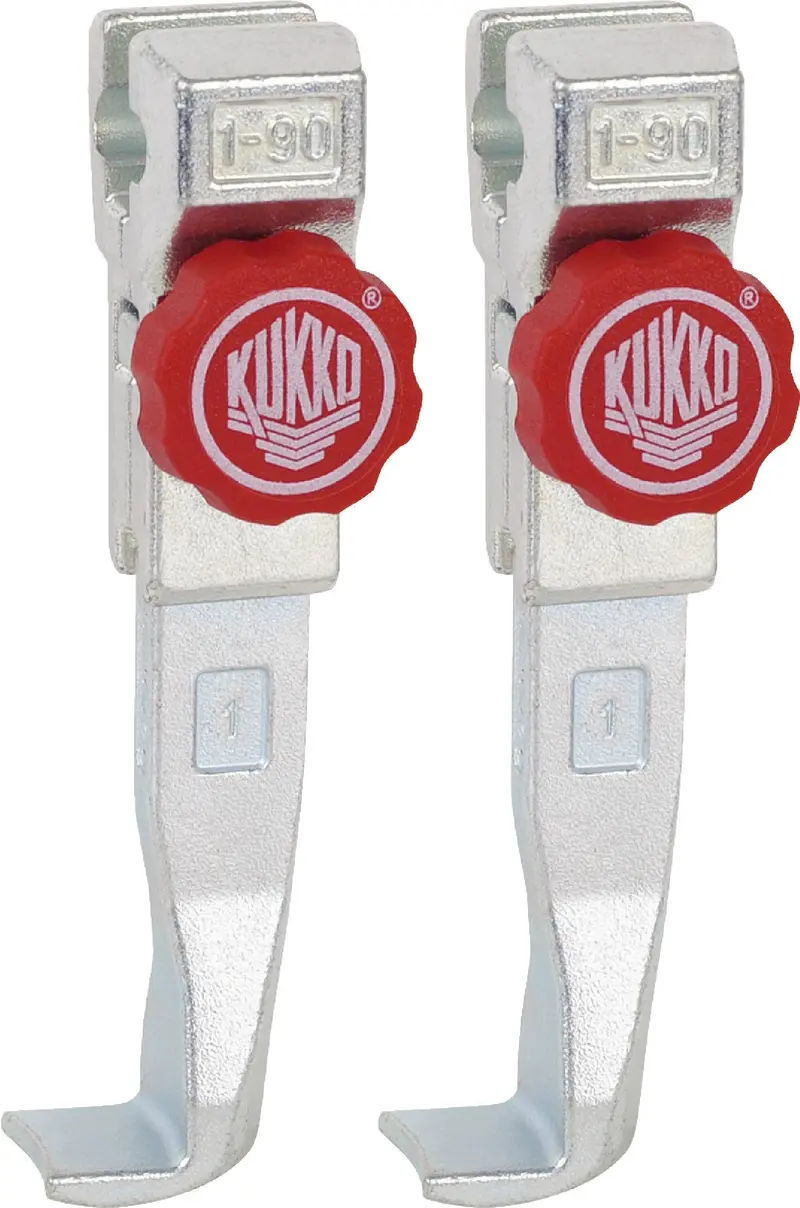

Equipment : KUKKO – Quick Adjustable Standard Jaws for replacement
KMVL P/N & Description : Below
| Parts number |
Jaw Length (mm) |
Jaw Width (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Suitable for |
| 1-92-P | 100 | 132 | 3 | 20 | 15 | 31 | 10 | 20-1+,20-10+ |
| 1-192-P | 200 | 232 | 3 | 20 | 15 | 31 | 10 | 20-1+,20-10+ |
| 1-252-P | 250 | 282 | 3 | 20 | 15 | 31 | 10 | 20-1+,20-10+ |
| 2-152-P | 150 | 193 | 4 | 24 | 18 | 40 | 9 | 20-2+,20-20+ |
| 2-302-P | 300 | 343 | 4 | 24 | 18 | 40 | 9 | 20-2+,20-20+ |
| 3-202-P | 200 | 255 | 4 | 35 | 37 | 67 | 20 | 20-3+,20-30+ |
| 3-302-P | 300 | 350 | 4 | 35 | 37 | 67 | 20 | 20-3+,20-30+ |
| 3-402-P | 400 | 450 | 4 | 35 | 37 | 67 | 20 | 20-3+,20-30+ |
| 3-502-P | 500 | 550 | 4 | 35 | 37 | 67 | 20 | 20-3+,20-30+ |
| 1-92-S | 100 | 132 | 3 | 20 | 15 | 31 | 10 | 30-1+,30-10+ |
| 1-192-S | 200 | 232 | 3 | 20 | 15 | 31 | 10 | 30-1+,30-10+ |
| 1-252-S | 250 | 282 | 3 | 20 | 15 | 31 | 10 | 30-1+,30-10+ |
| 2-152-S | 150 | 193 | 4 | 24 | 18 | 40 | 9 | 30-2+,30-20+ |
| 2-302-S | 300 | 343 | 4 | 24 | 18 | 40 | 9 | 30-2+,30-20+ |
| 3-202-S | 200 | 255 | 4 | 35 | 37 | 67 | 20 | 30-3+,30-30+ |
| 3-302-S | 300 | 350 | 4 | 35 | 37 | 67 | 20 | 30-3+,30-30+ |
| 3-402-S | 400 | 450 | 4 | 35 | 37 | 67 | 20 | 30-3+,30-30+ |
| 3-502-S | 500 | 550 | 4 | 35 | 37 | 67 | 20 | 30-3+,30-30+ |

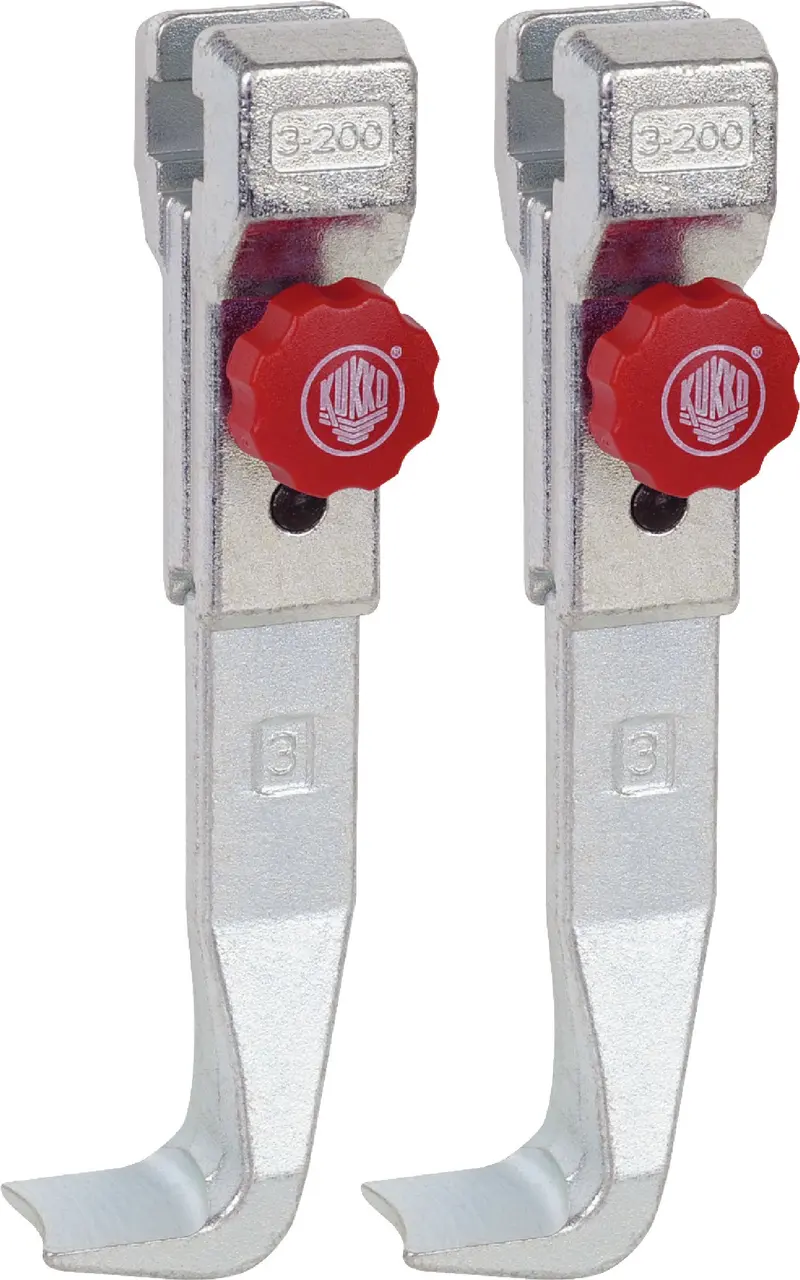

* -P = For 2-jaws (2 jaws are included per 1pc)

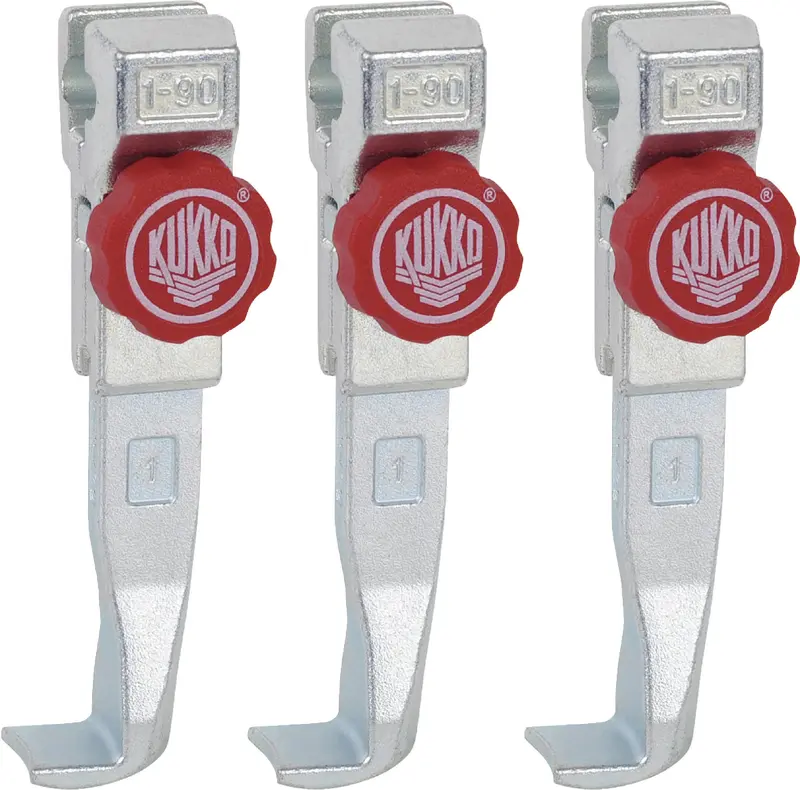

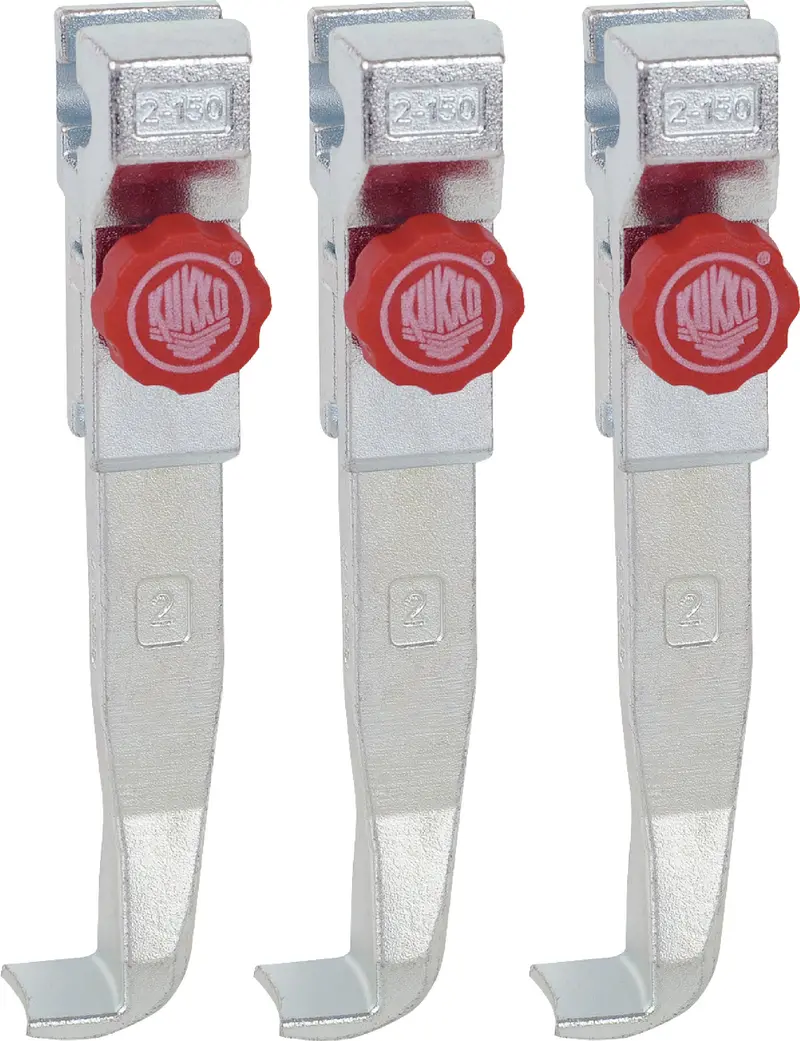

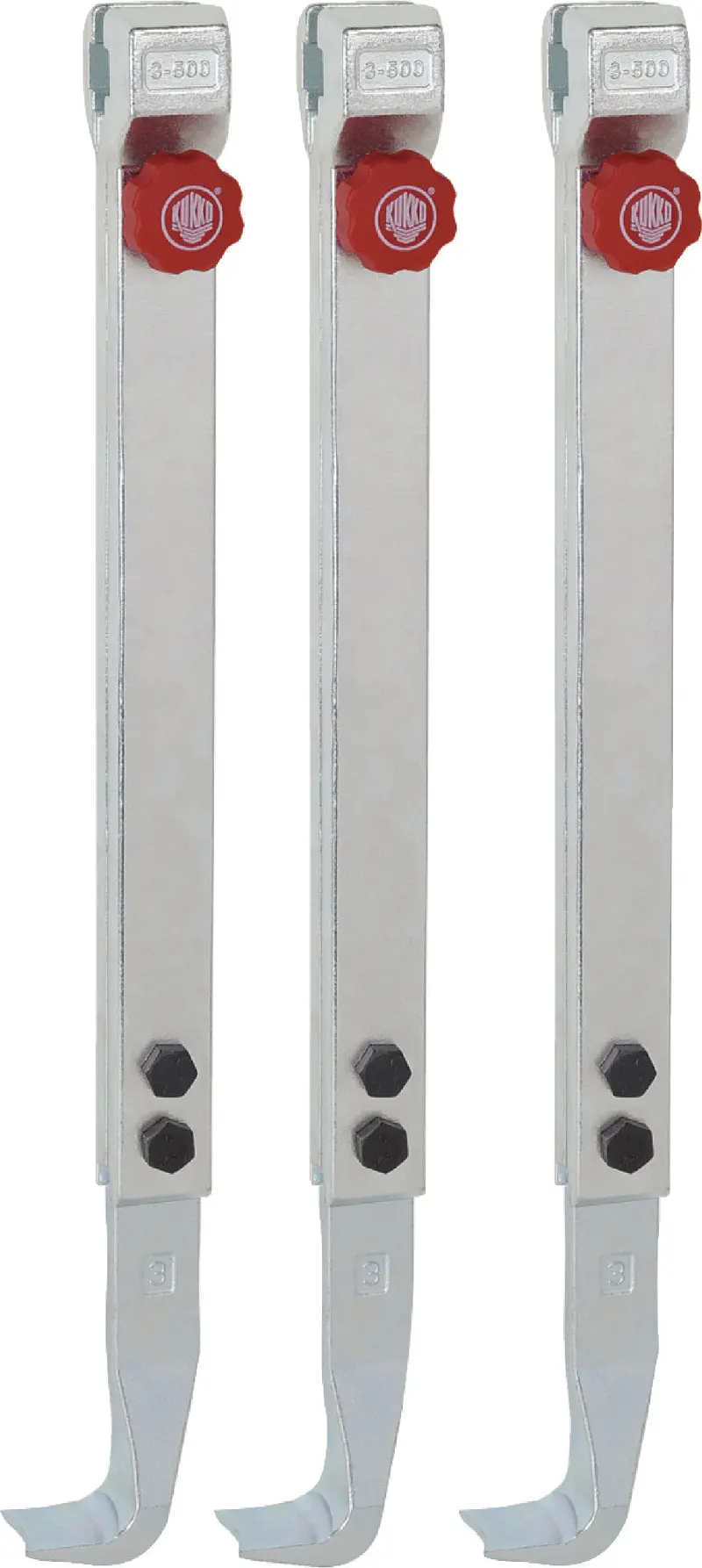

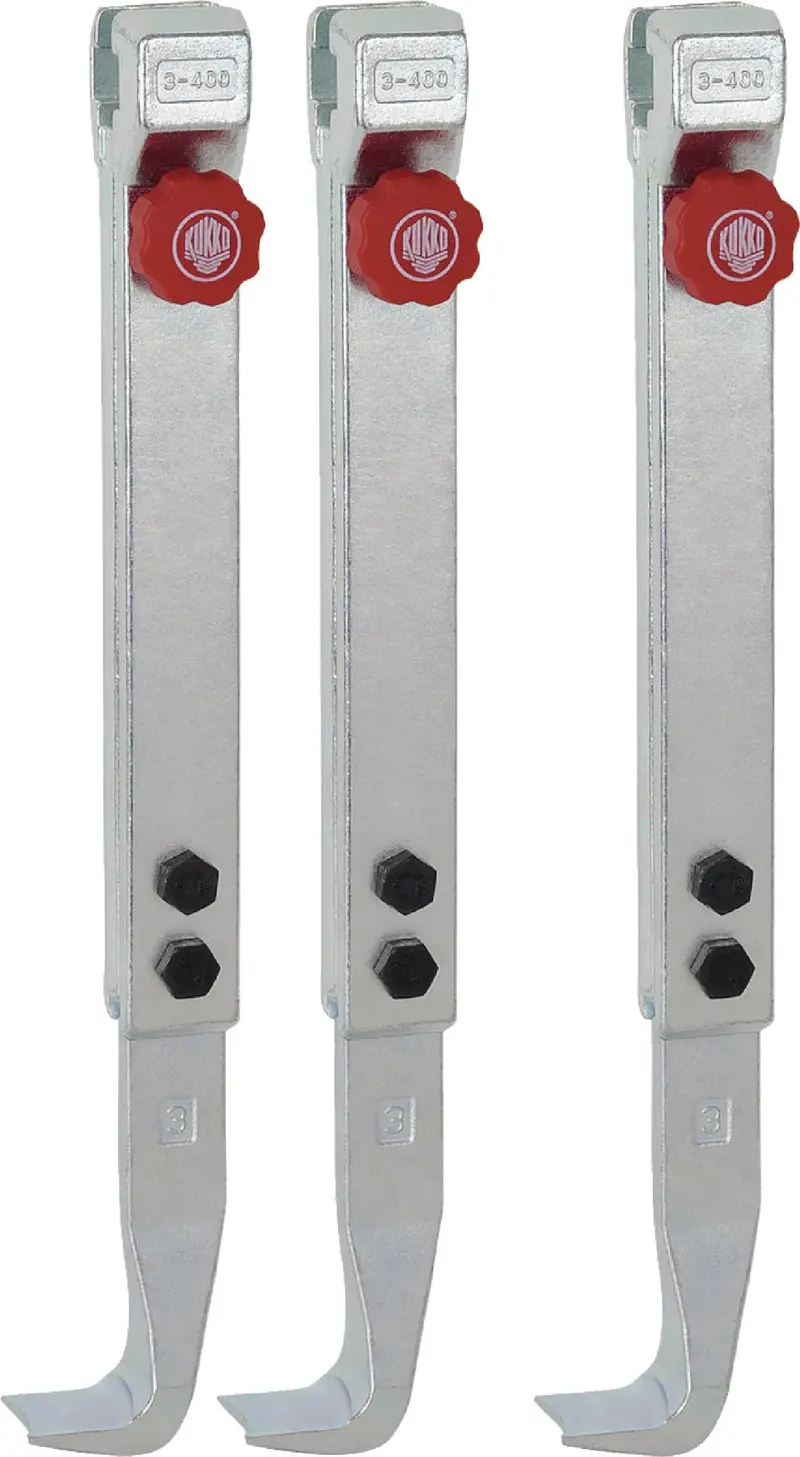

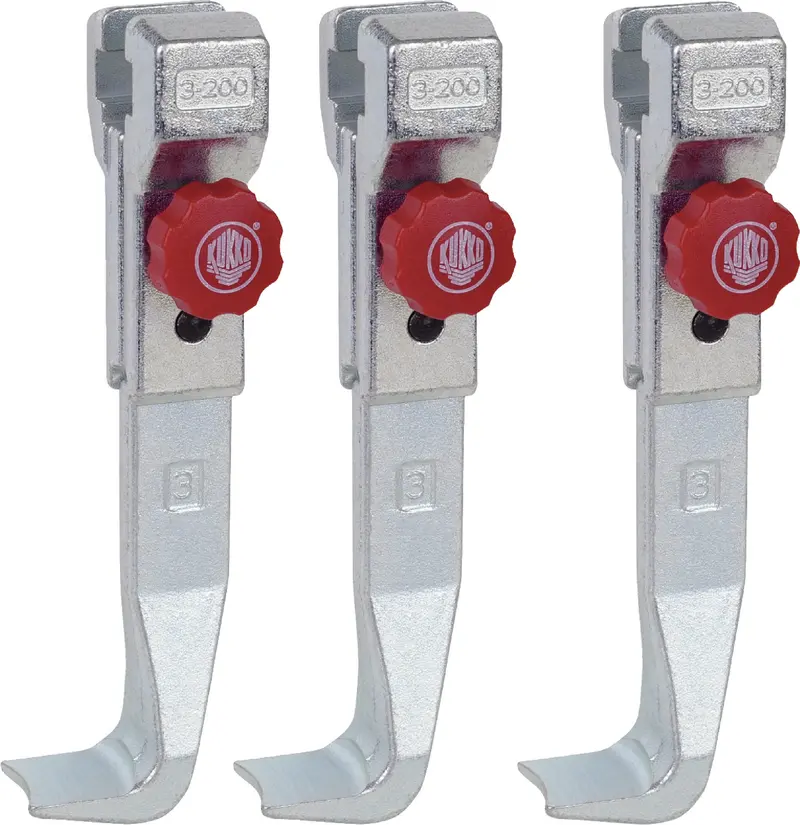

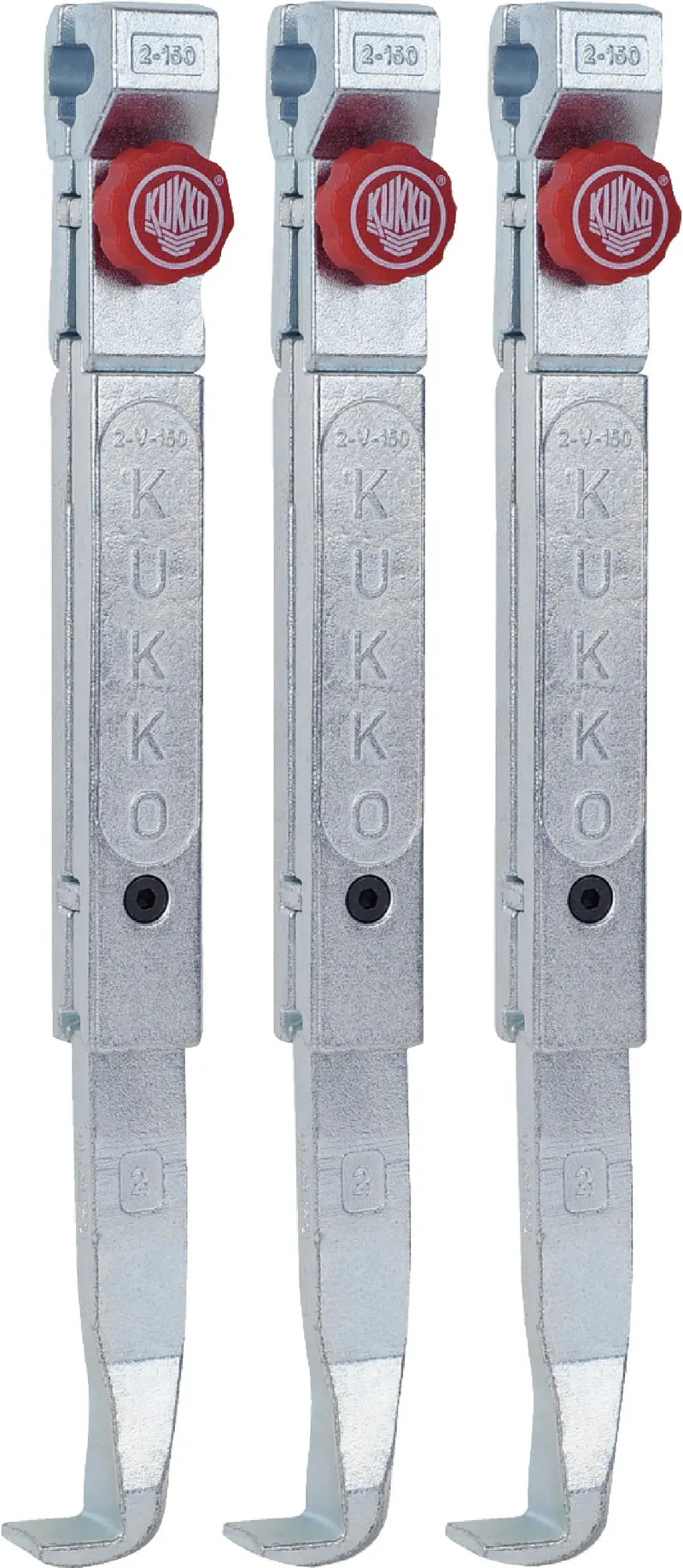

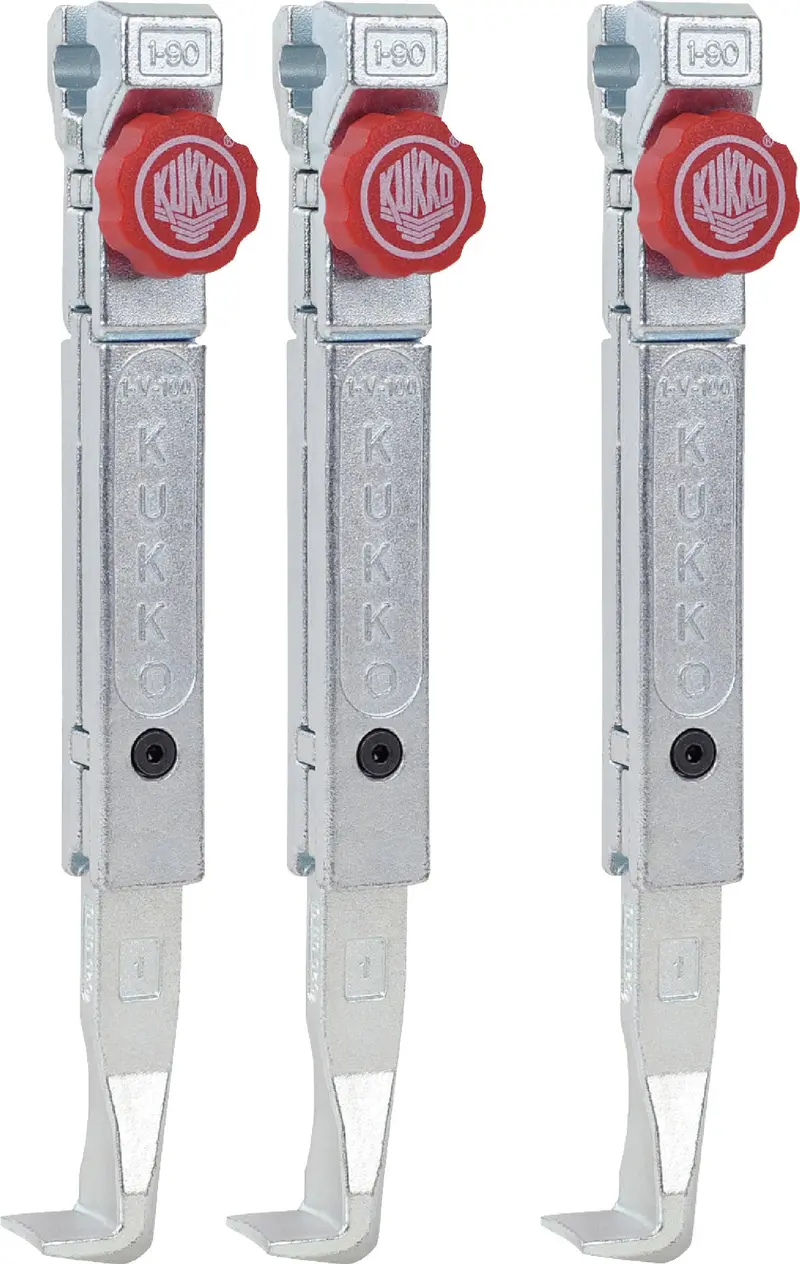

* -S = For 3-jaws (3 jaws are included per 1pc)
Description :
The robust jaws guarantee particularly safe and user-friendly removal of bearings, gears, and disks.
Advantage :
・The movable puller jaws that glide on the crossbar allow for the removal of eccentric components as well.
・Through the knurl, a tool-free, quick solution or movement of the jaws is made possible.
If you have any questions, please do not hesitate to contact us!
