Description
Wide range of available as Japanese high quality products
Equipment : KUKKO – Quick Adjustable Extremely Narrow Jaws for replacement
KMVL P/N & Description : Below
| Parts number |
Jaw Length (mm) |
Jaw Width (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Suitable for |
| 1-95-P | 100 | 127 | 3 | 24 | 7 | 12 | 3 | 20-1+S-T,20-10+S-T |
| 1-195-P | 200 | 227 | 3 | 24 | 7 | 12 | 3 | 20-1+S-T,20-10+S-T |
| 1-255-P | 250 | 277 | 3 | 24 | 7 | 12 | 3 | 20-1+S-T,20-10+S-T |
| 1-95-S | 100 | 127 | 3 | 24 | 7 | 12 | 3 | 30-1+S-T,30-10+S-T |
| 1-195-S | 200 | 227 | 3 | 24 | 7 | 12 | 3 | 30-1+S-T,30-10+S-T |
| 1-255-S | 250 | 277 | 3 | 24 | 7 | 12 | 3 | 30-1+S-T,30-10+S-T |

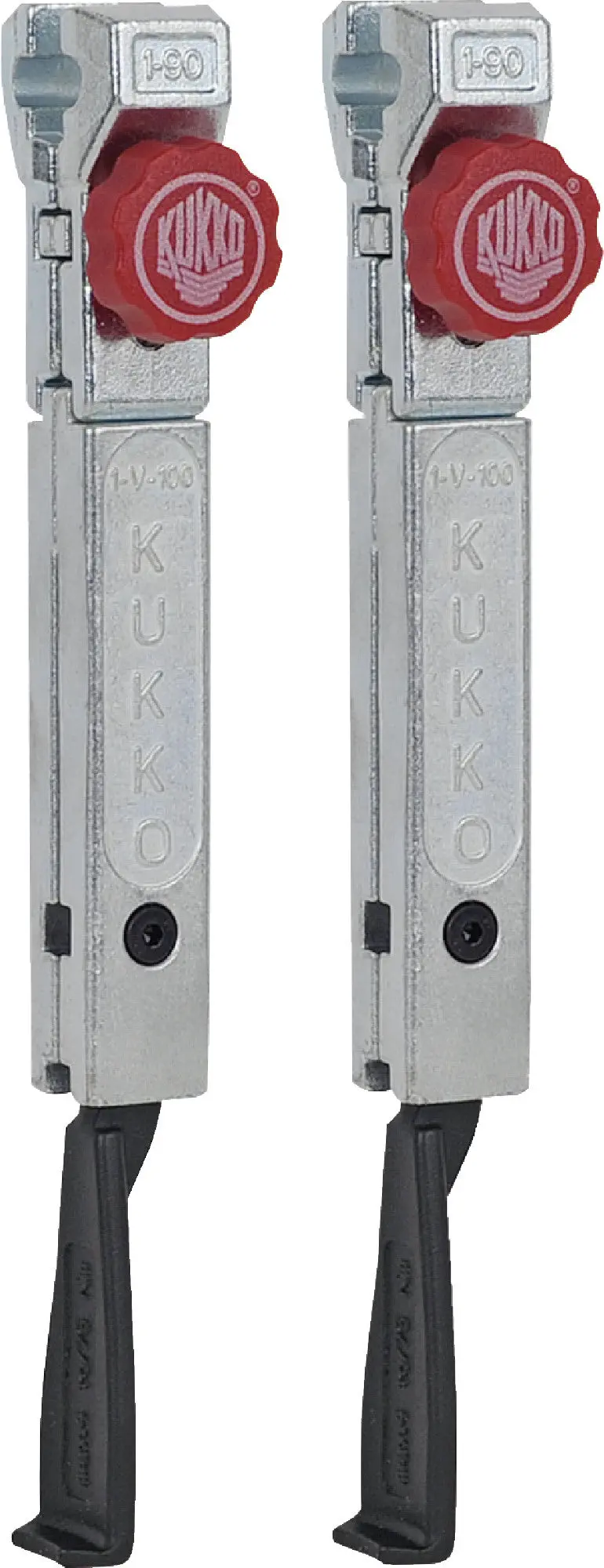

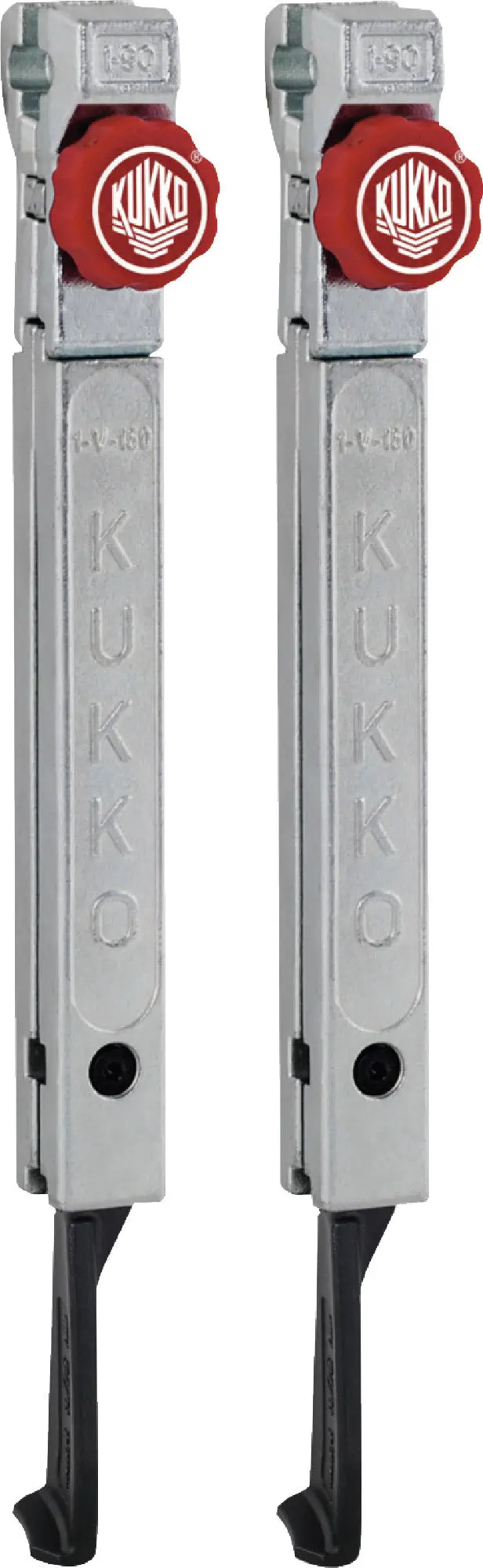

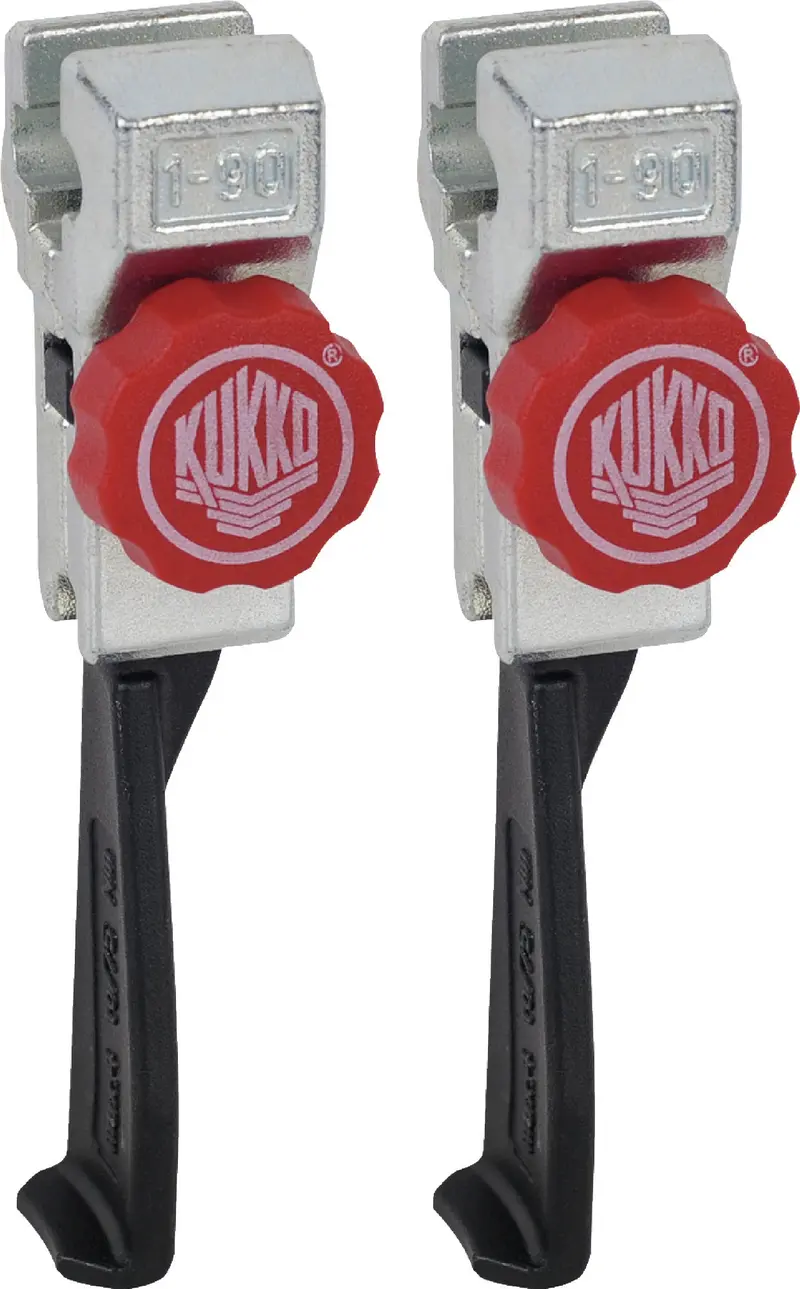

* -P = For 2-jaws (2 jaws are included per 1pc)

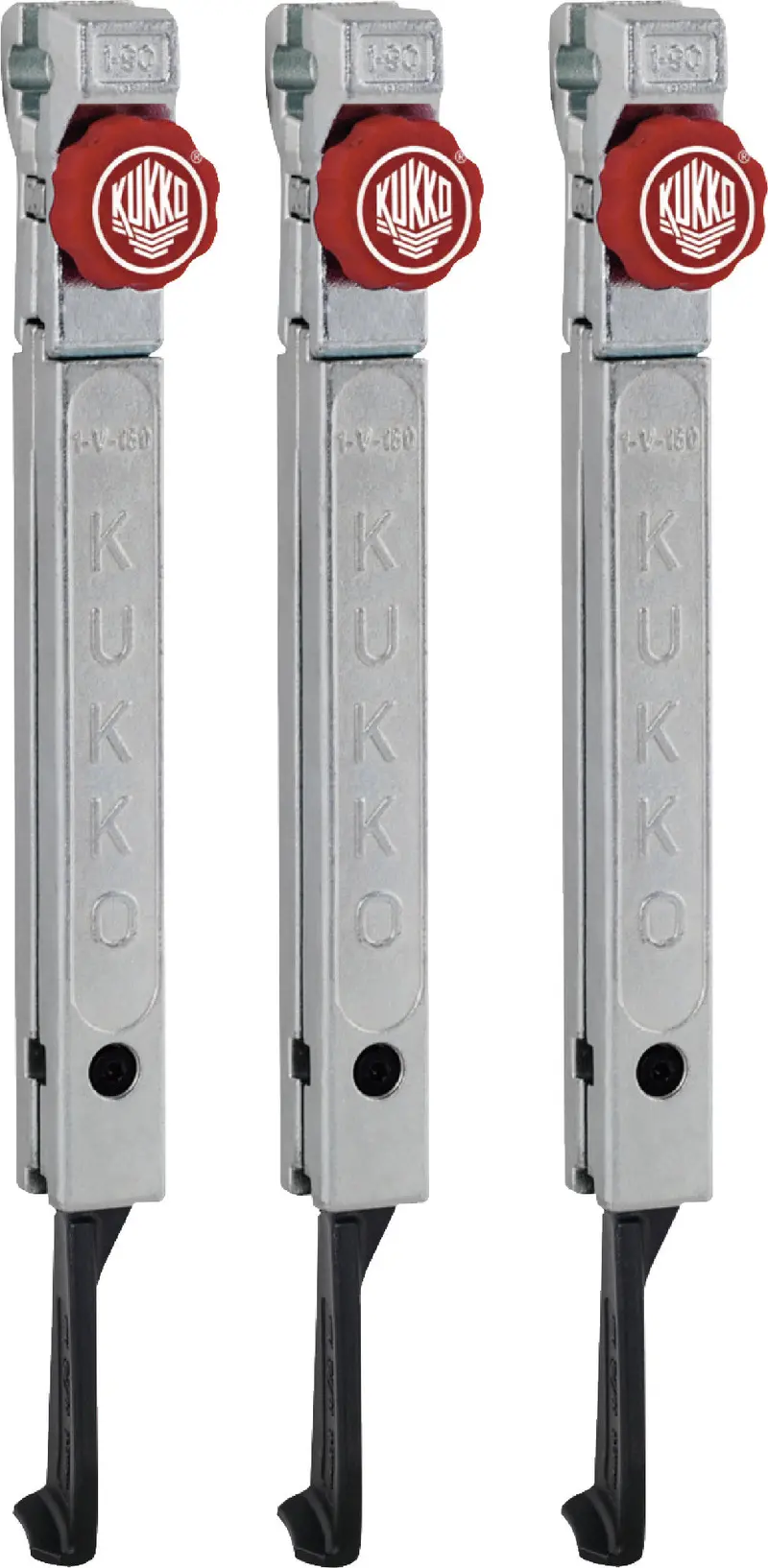

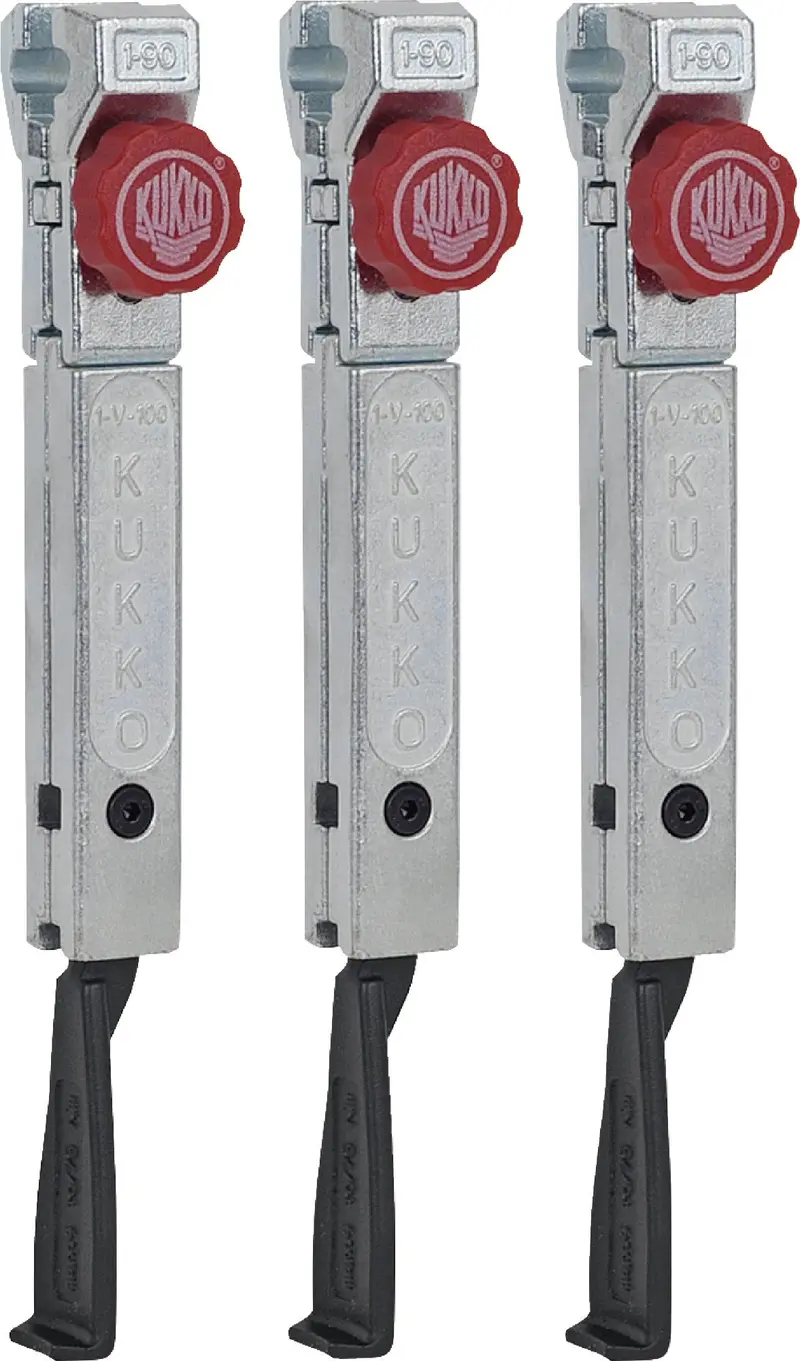

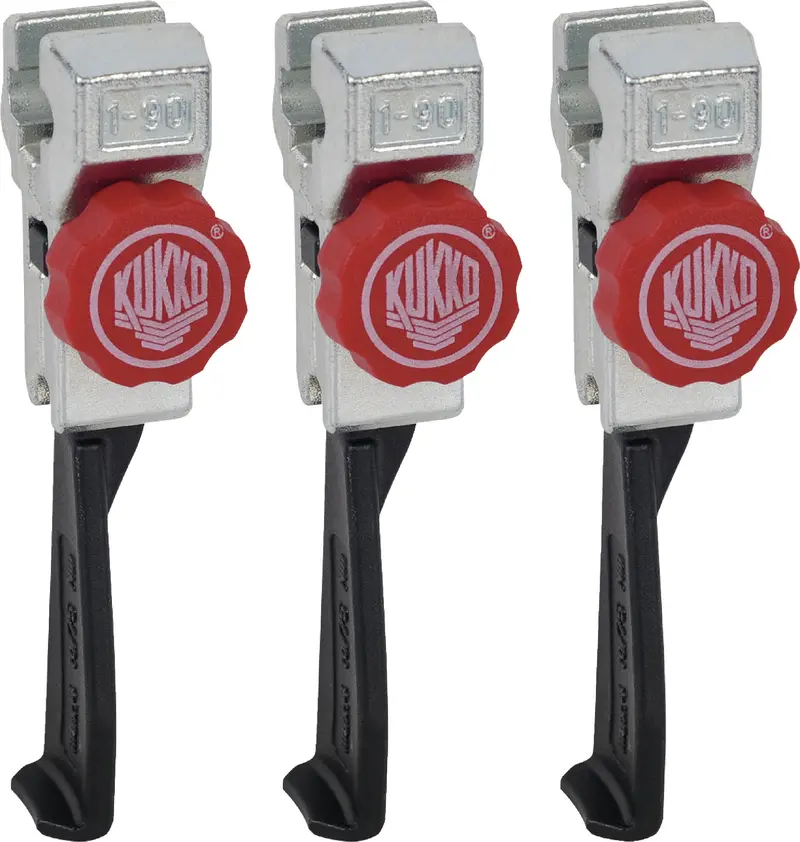

* -S = For 3-jaws (3 jaws are included per 1pc)
Description :
The trapezoidal support surfaces of the claw ensure that even very tight and hard-to-reach gaps are accessible.
Advantage :
・The movable, sliding extraction jaws on the crossbar can also be used to extract eccentric components.
・Thanks to the knurl, a tool-free, quick release or movement of the trigger hooks is made possible.
If you have any questions, please do not hesitate to contact us!
