Description
Wide range of available as Japanese high quality products
Equipment : KUKKO – Standard Jaws for replacement
KMVL P/N & Description : Below
| Parts number |
Jaw Length (mm) |
Jaw Width (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Suitable for |
| 0-75-P | 75 | 76 | 1.5 | 15 | 13 | 16 | 5 | 201-0 |
| 1-90-P | 100 | 132 | 3 | 20 | 15 | 31 | 10 | 20-1,20-10 |
| 1-190-P | 200 | 232 | 3 | 20 | 15 | 31 | 10 | 20-1,20-10 |
| 1-250-P | 250 | 282 | 3 | 20 | 15 | 31 | 10 | 20-1,20-10 |
| 1-400-P | 400 | 432 | 3 | 20 | 15 | 31 | 10 | 20-1,20-10 |
| 2-150-P | 150 | 193 | 4 | 24 | 18 | 40 | 9 | 20-2,20-20 |
| 2-300-P | 300 | 343 | 4 | 24 | 18 | 40 | 9 | 20-2,20-20 |
| 3-200-P | 200 | 255 | 4 | 35 | 37 | 67 | 20 | 20-3,20-30 20-4,20-40 |
| 3-250-P | 250 | 300 | 4 | 35 | 37 | 67 | 20 | 20-3,20-30 20-4,20-40 |
| 3-300-P | 300 | 350 | 4 | 35 | 37 | 67 | 20 | 20-3,20-30 20-4,20-40 |
| 3-400-P | 400 | 450 | 4 | 35 | 37 | 67 | 20 | 20-3,20-30 20-4,20-40 |
| 3-500-P | 500 | 550 | 4 | 35 | 37 | 67 | 20 | 20-3,20-30 20-4,20-40 |
| 0-75-S | 75 | 76 | 1.5 | 15 | 13 | 16 | 5 | 201-0 |
| 1-90-S | 100 | 132 | 3 | 20 | 15 | 31 | 10 | 30-1,30-10 |
| 1-190-S | 200 | 232 | 3 | 20 | 15 | 31 | 10 | 30-1,30-10 |
| 1-250-S | 250 | 282 | 3 | 20 | 15 | 31 | 10 | 30-1,30-10 |
| 1-400-S | 400 | 432 | 3 | 20 | 15 | 31 | 10 | 30-1,30-10 |
| 2-150-S | 150 | 193 | 4 | 24 | 18 | 40 | 9 | 30-2,30-20 |
| 2-300-S | 300 | 343 | 4 | 24 | 18 | 40 | 9 | 30-2,30-20 |
| 3-200-S | 200 | 255 | 4 | 35 | 37 | 67 | 20 | 11-0,11-1 11-2,30-3 |
| 3-250-S | 250 | 300 | 4 | 35 | 37 | 67 | 20 | 11-0,11-1 11-2,30-3 |
| 3-300-S | 300 | 350 | 4 | 35 | 37 | 67 | 20 | 11-0,11-1 11-2,30-3 |
| 3-400-S | 400 | 450 | 4 | 35 | 37 | 67 | 20 | 11-0,11-1 11-2,30-3 |
| 3-500-S | 500 | 550 | 4 | 35 | 37 | 67 | 20 | 11-0,11-1 11-2,30-3 |

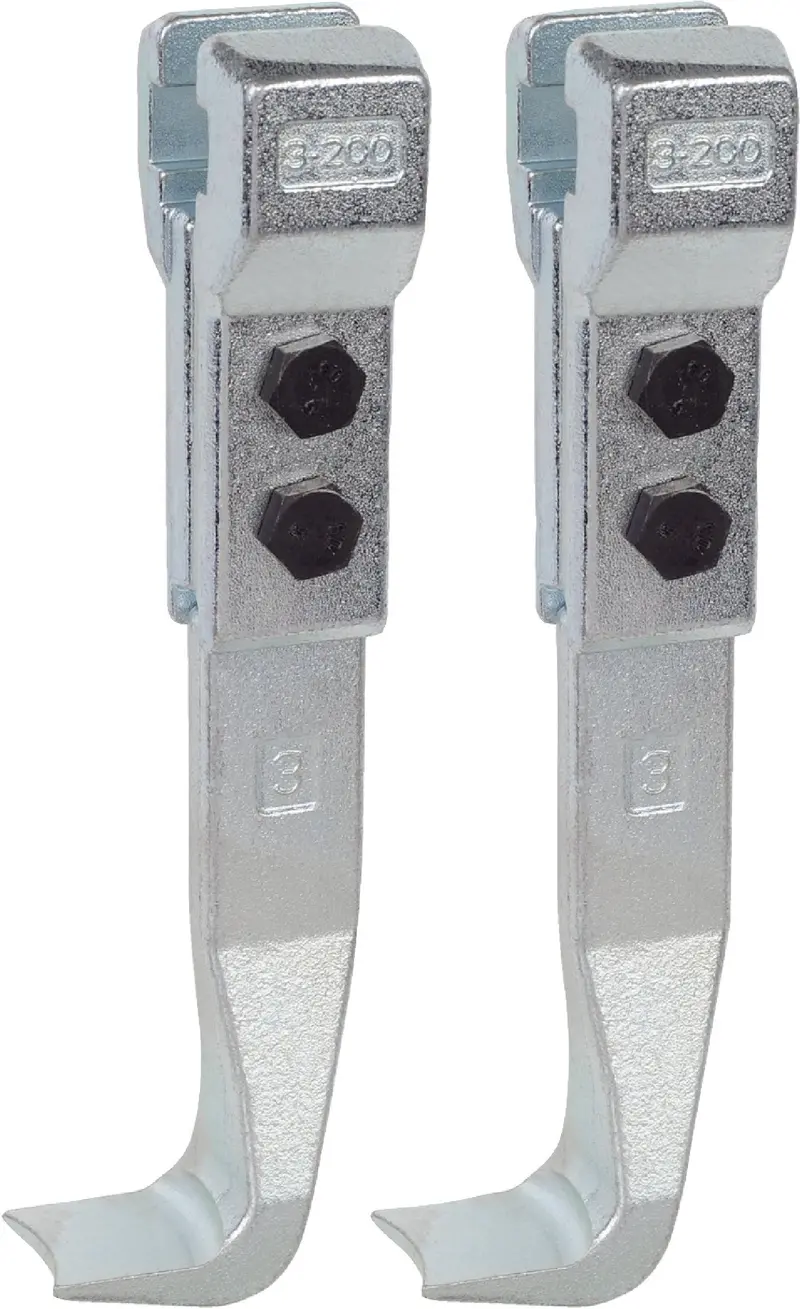

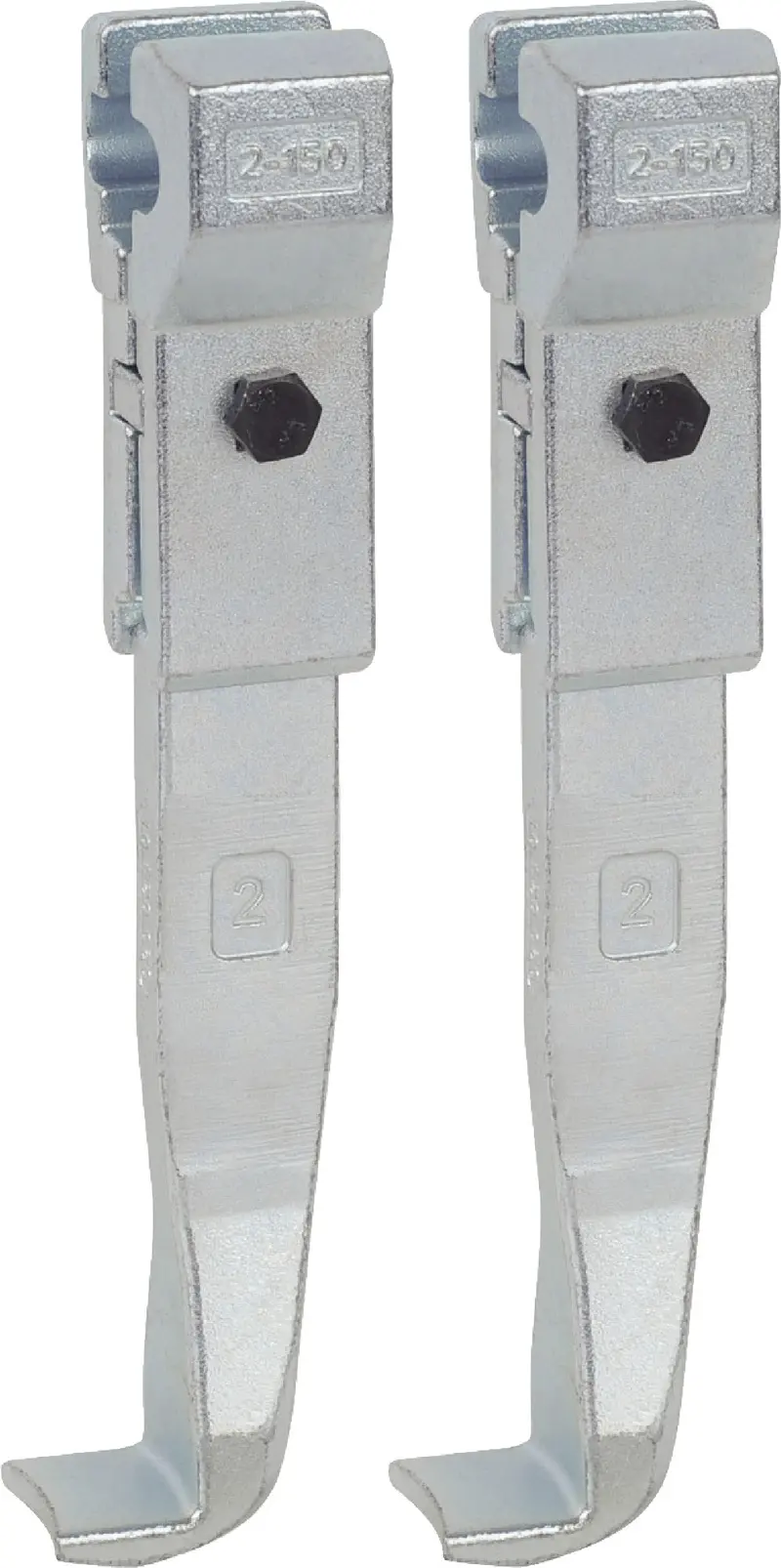

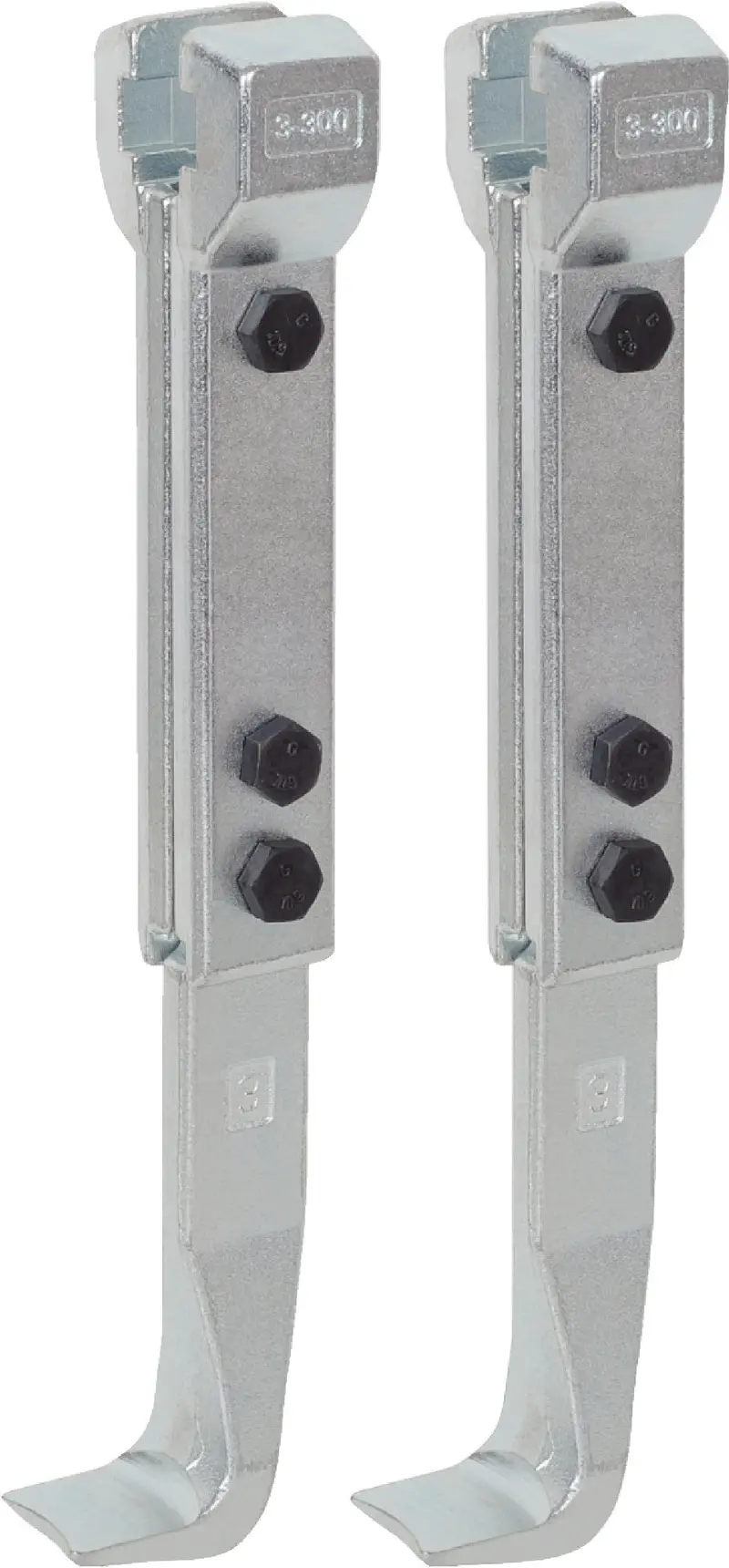

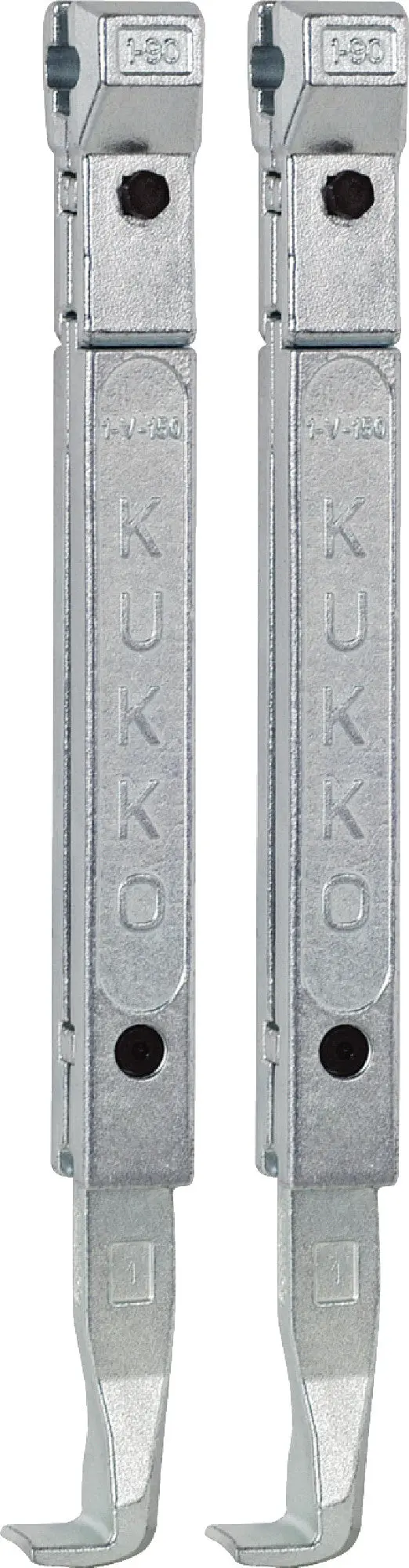

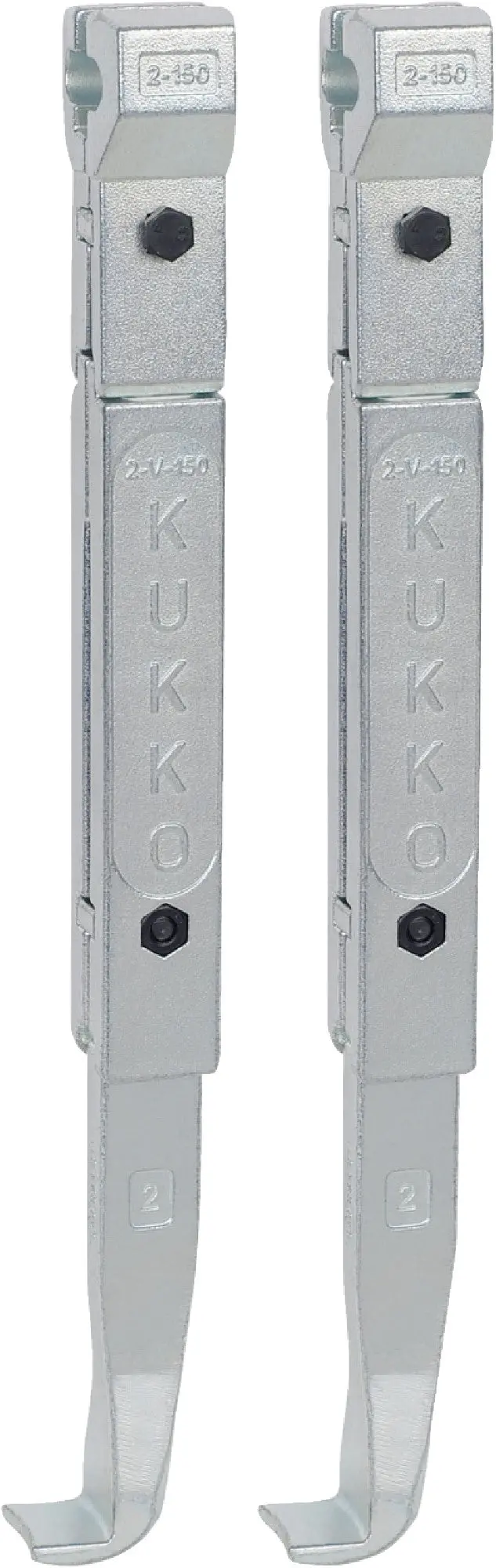

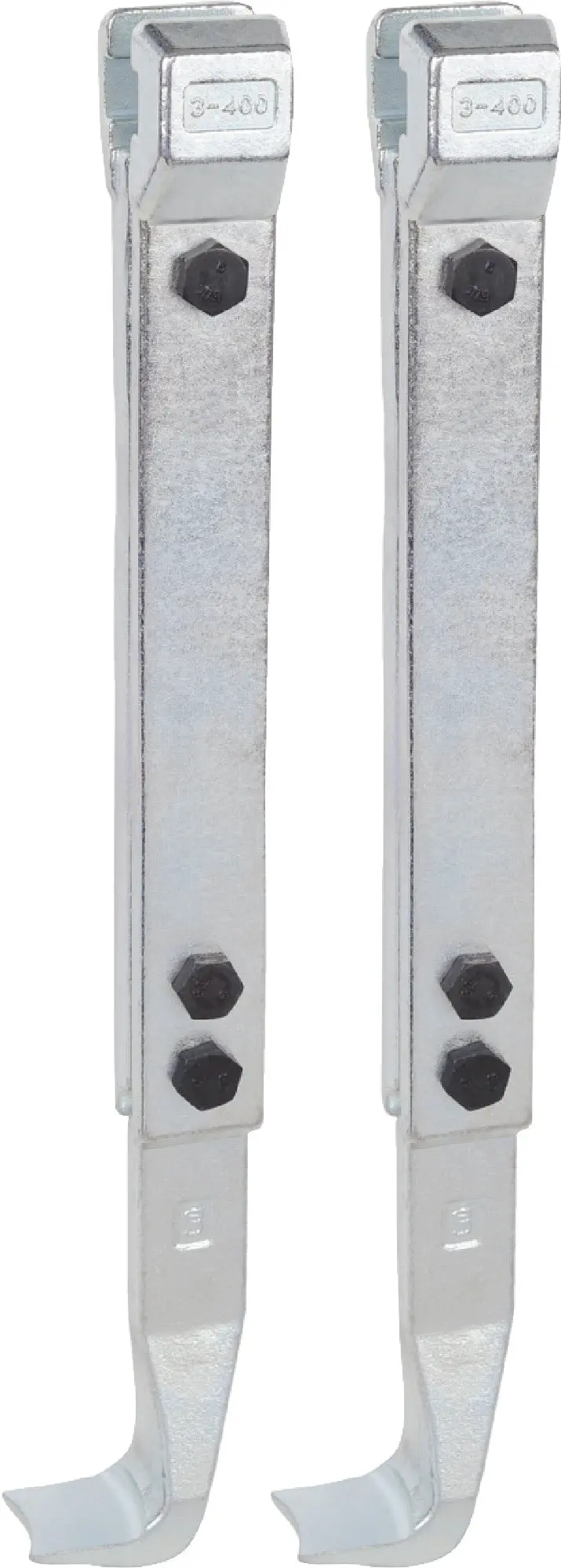

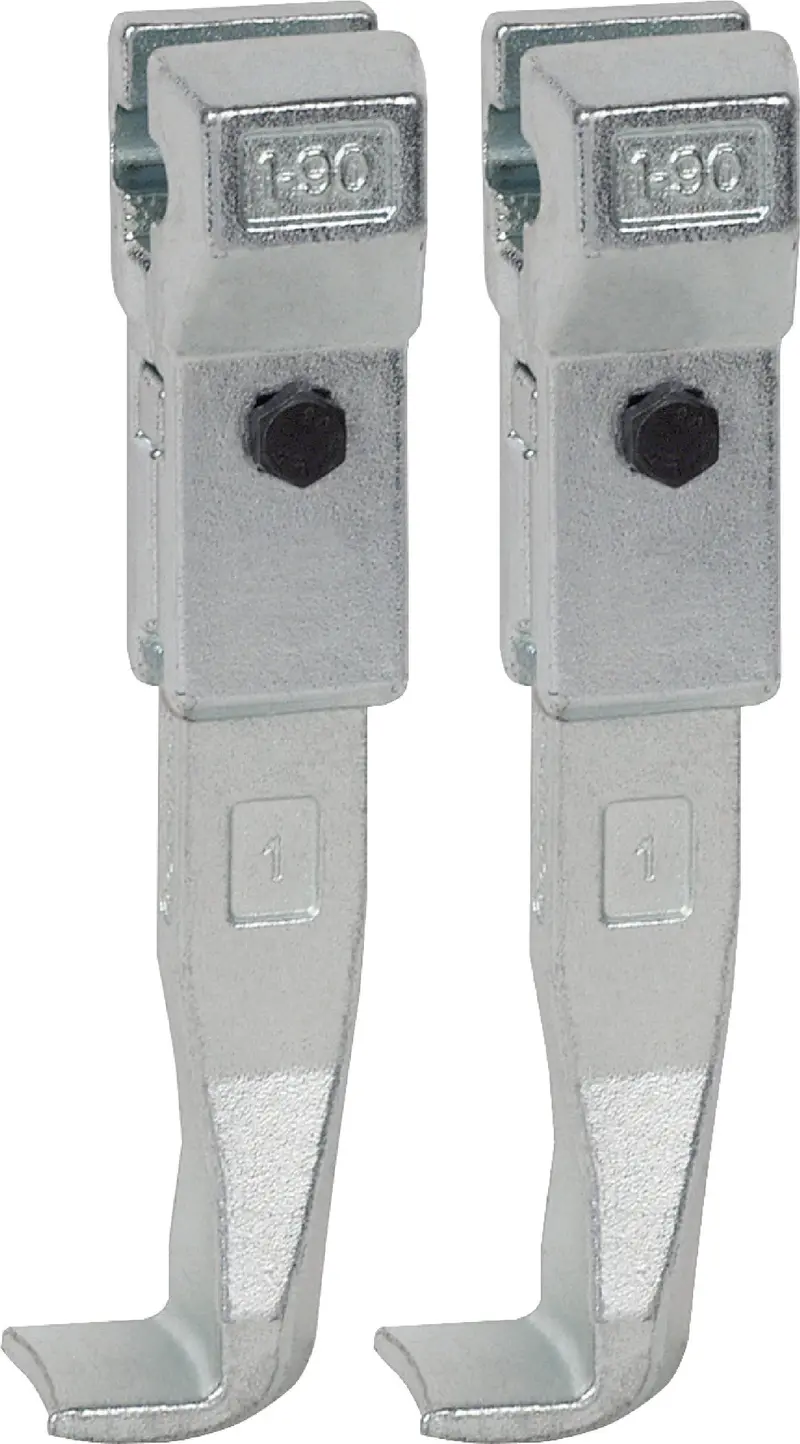

* -P = For 2-jaws (2 jaws are included per 1pc)

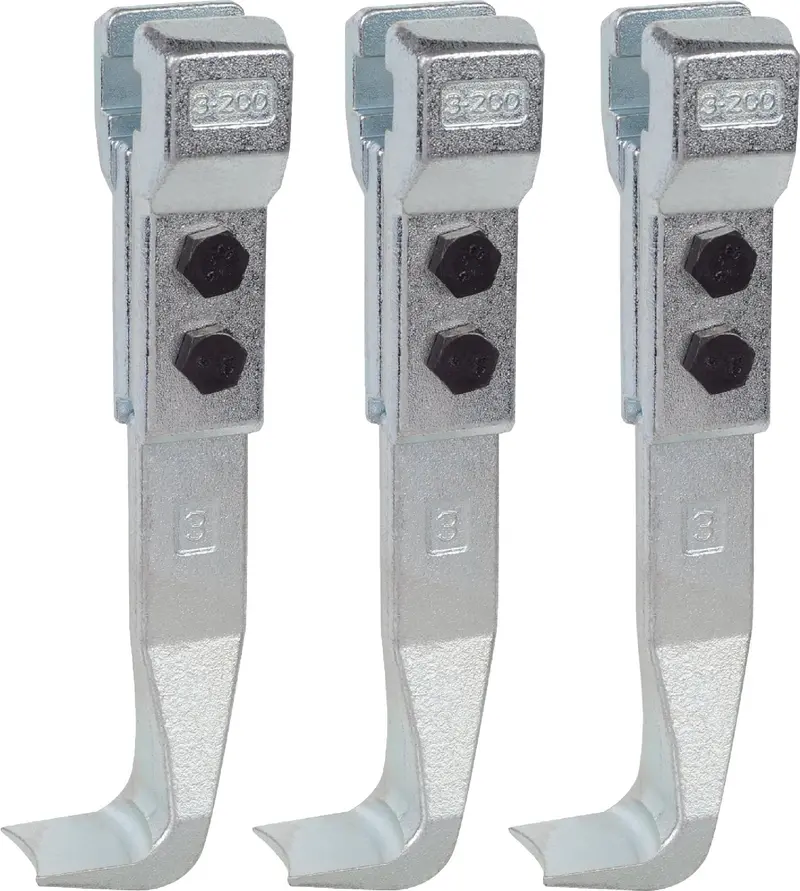

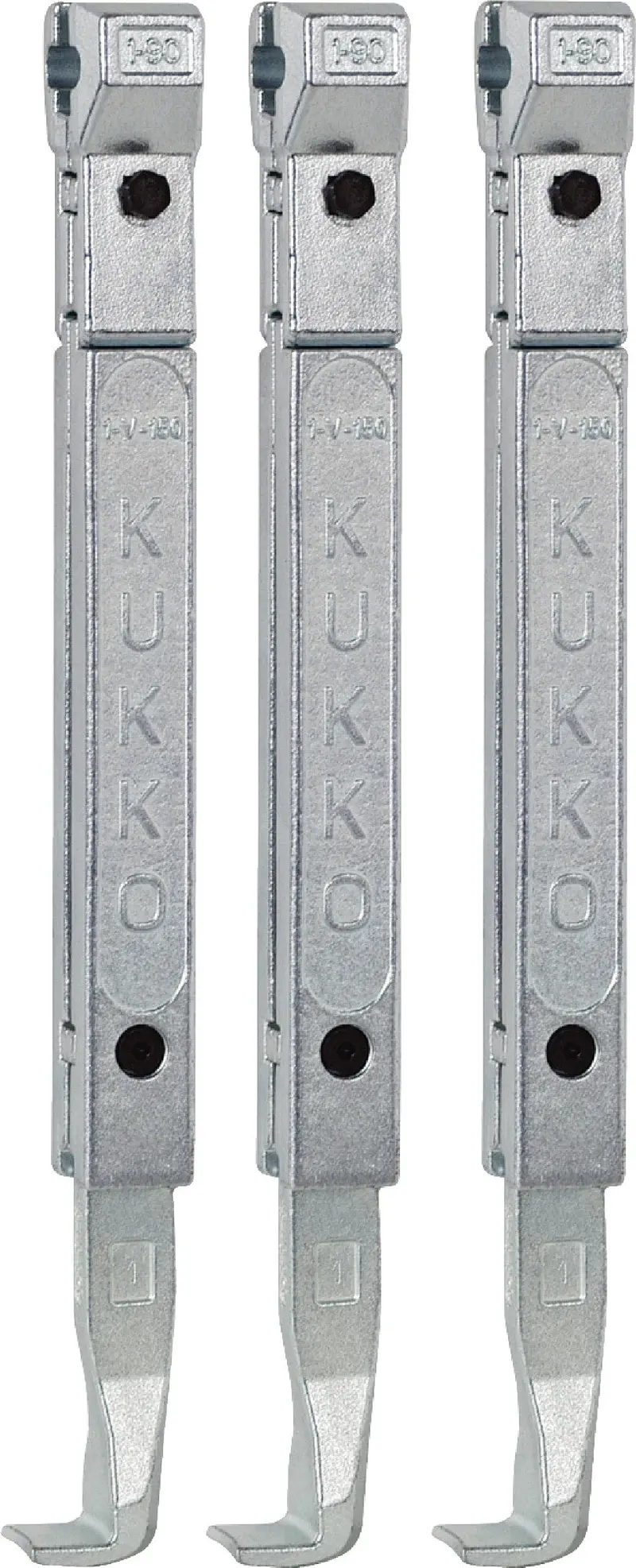

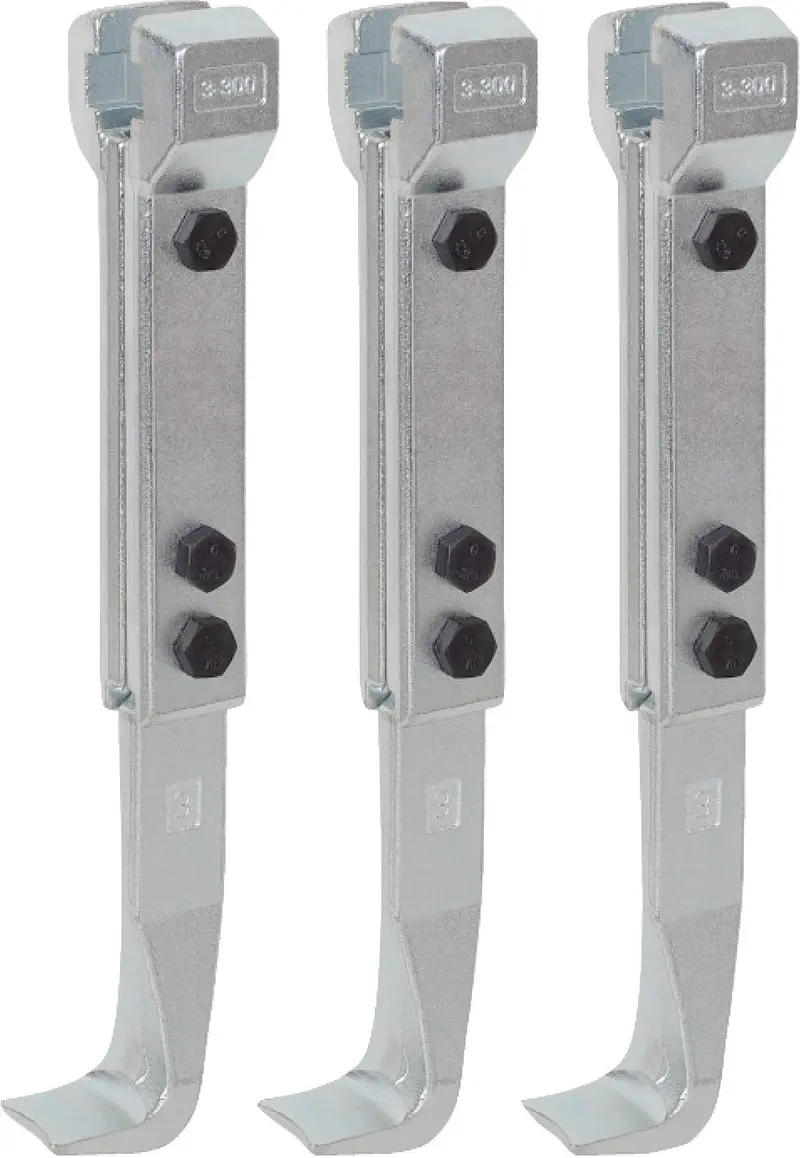

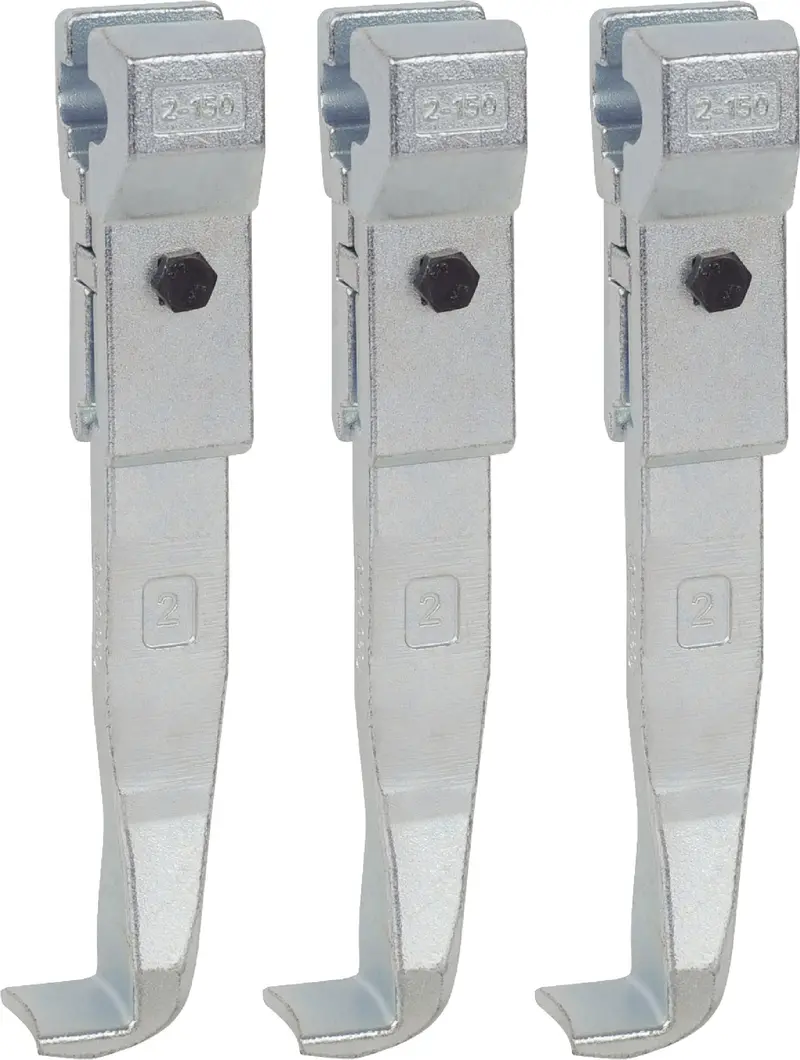

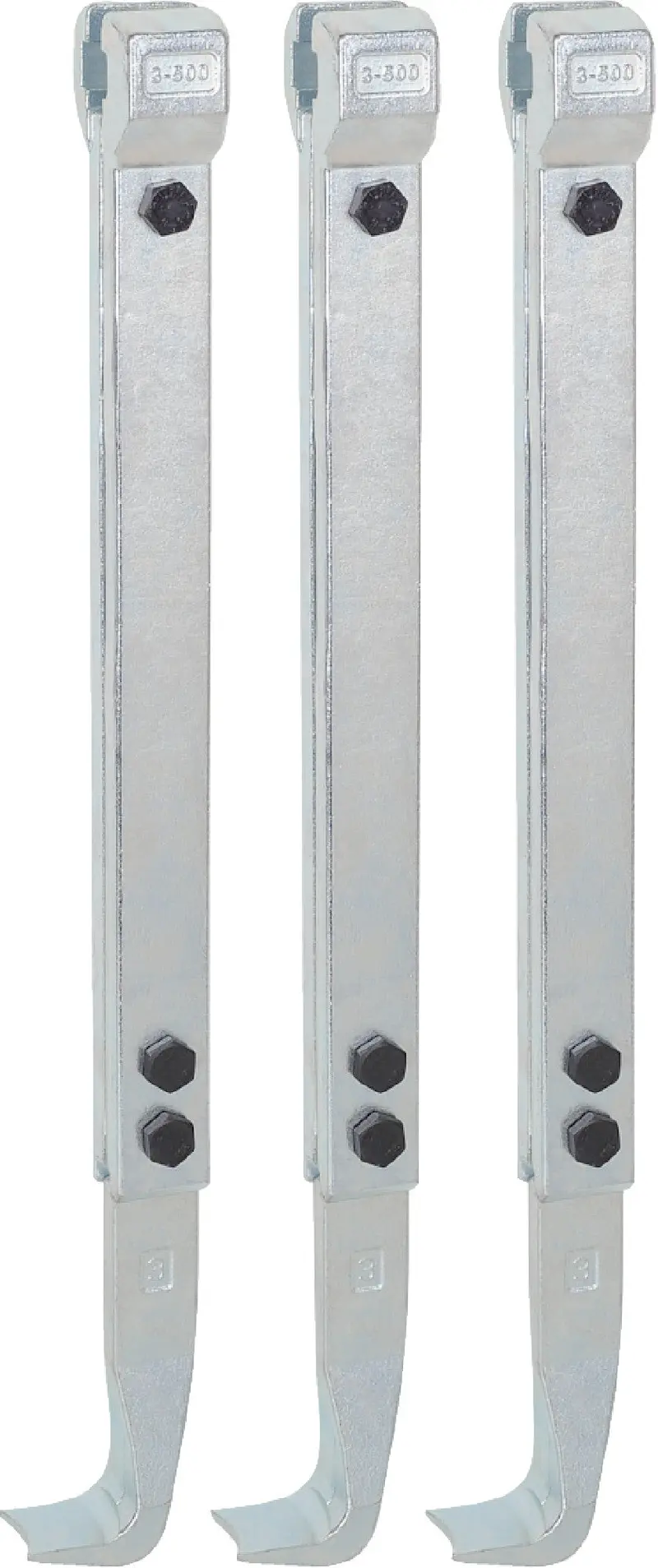

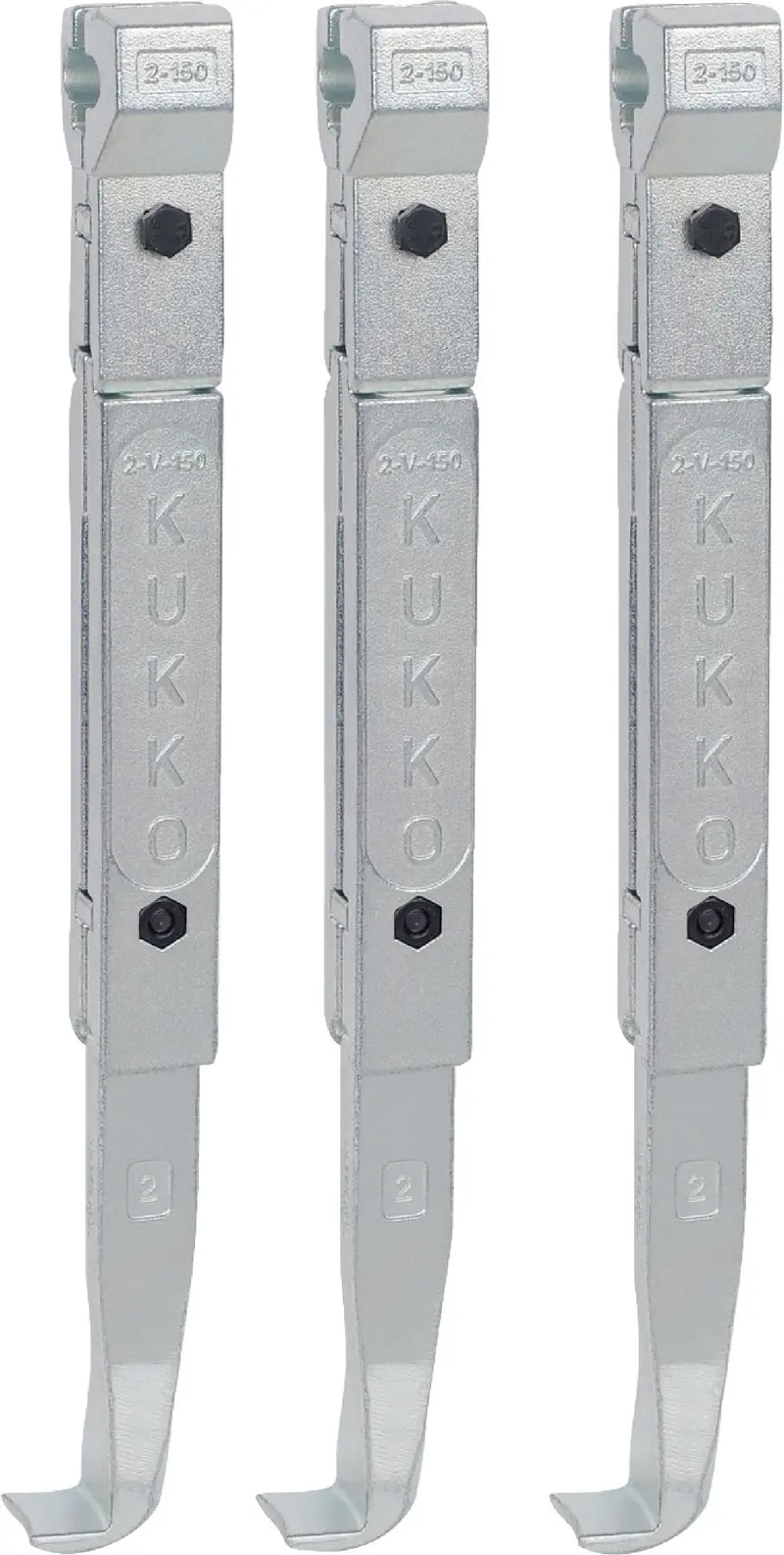

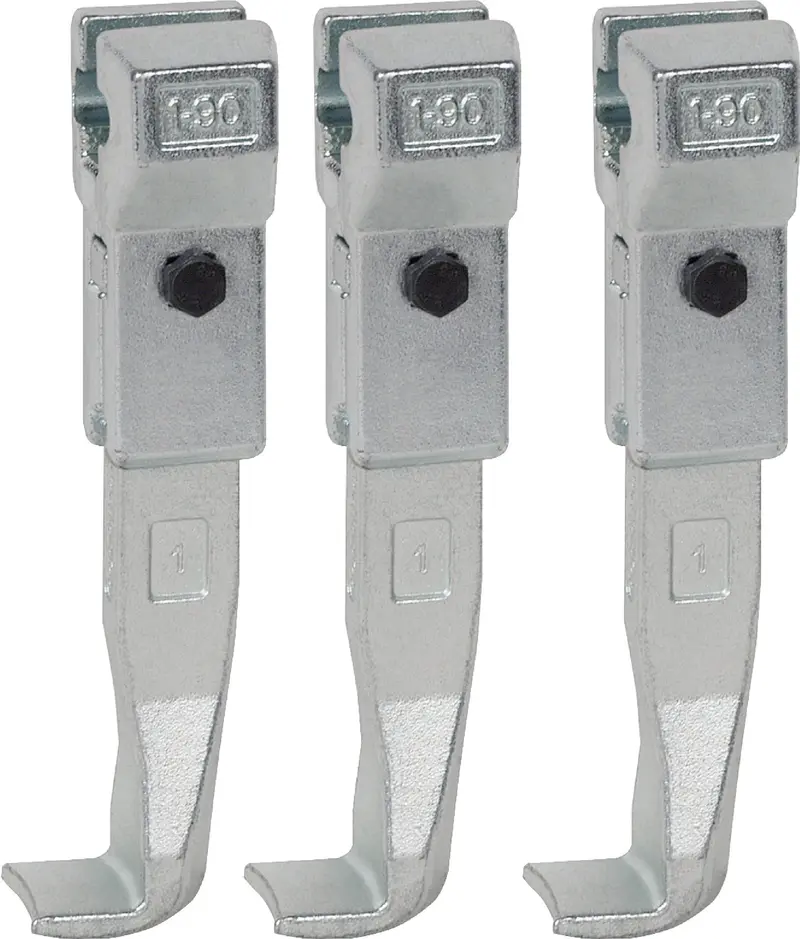

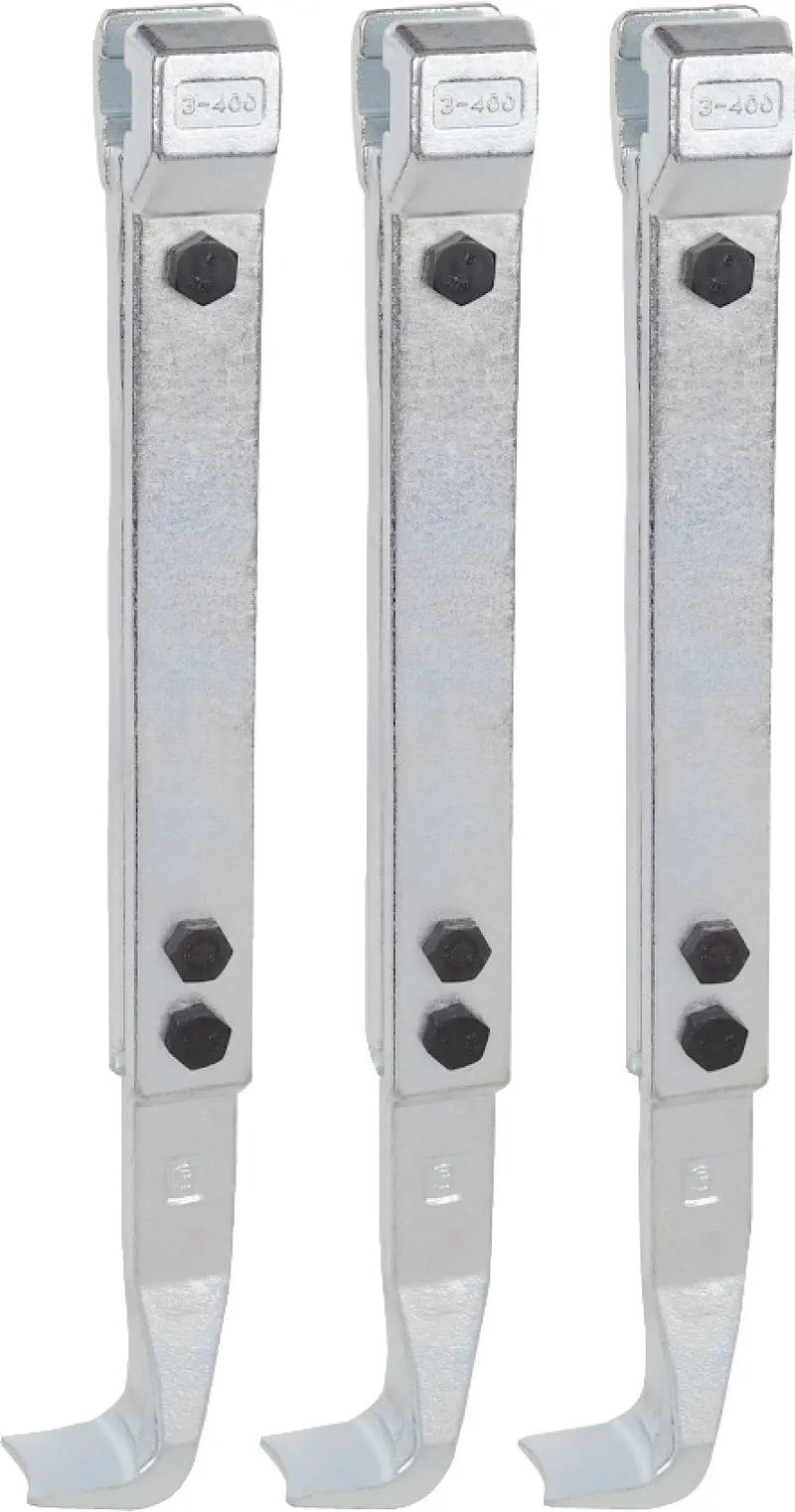

* -S = For 3-jaws (3 jaws are included per 1pc)
Description :
The robust jaws guarantee a particularly secure removal of bearings, gears, and discs.
Advantage :
The movable, sliding jaws on the crossbar allow for the extraction of eccentric components.
