Description
Wide range of available as Japanese high quality products

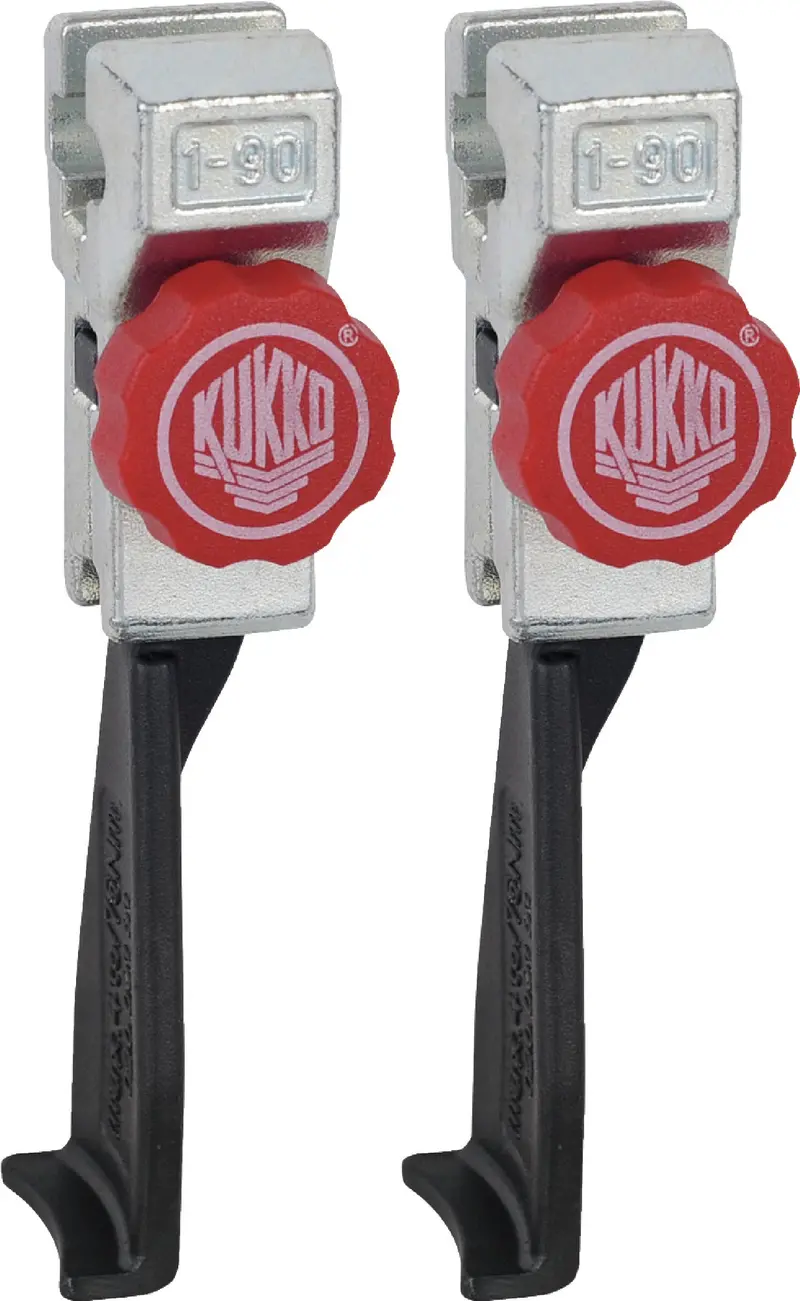

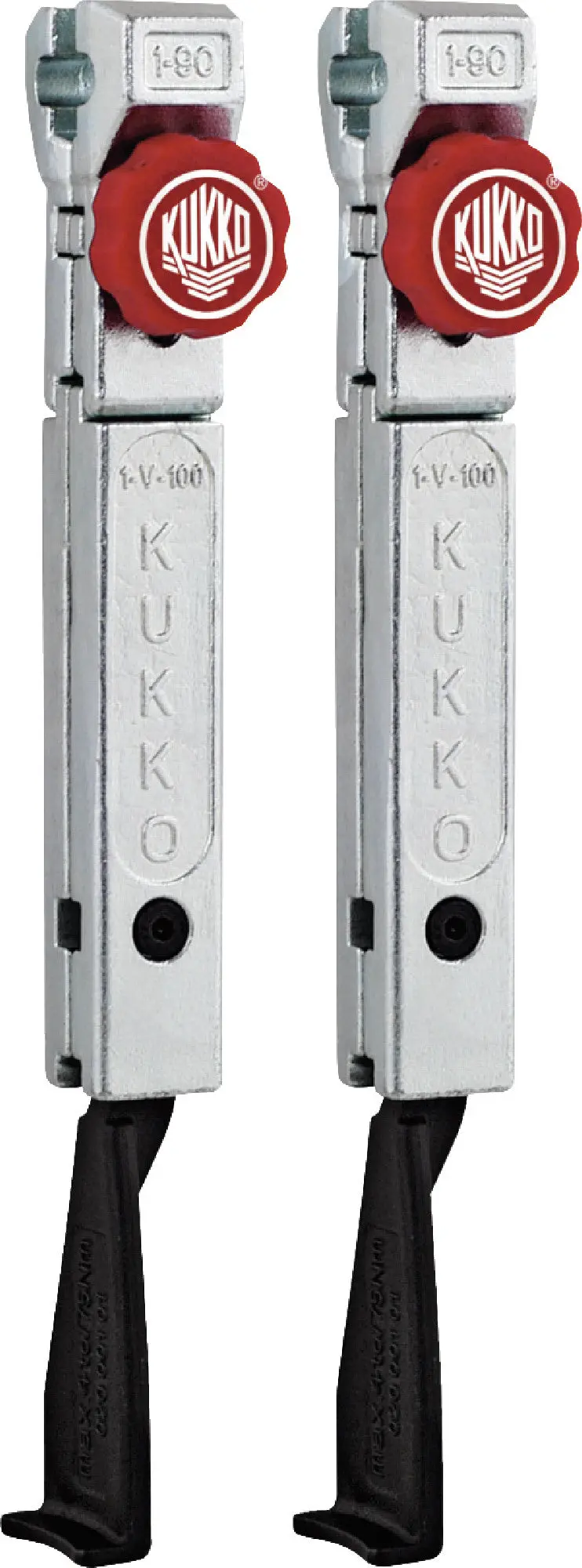

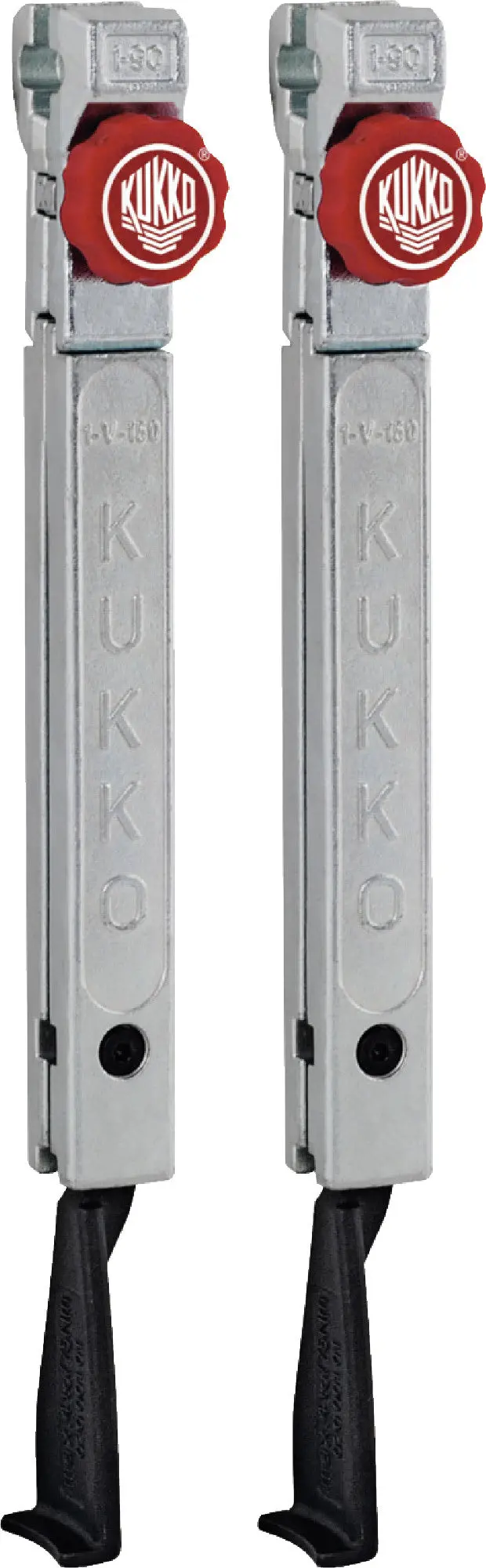

Equipment : KUKKO – Quick Adjustable Narrow Jaws for replacement
KMVL P/N & Description : Below
| Parts number |
Jaw Length (mm) |
Jaw Width (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Suitable for |
| 1-93-P | 100 | 127 | 3 | 30 | 7 | 14 | 3 | 20-1+S,20-10+S |
| 1-193-P | 200 | 227 | 3 | 30 | 7 | 14 | 3 | 20-1+S,20-10+S |
| 1-253-P | 250 | 277 | 3 | 30 | 7 | 14 | 3 | 20-1+S,20-10+S |
| 2-153-P | 150 | 186 | 4 | 32 | 8 | 19 | 4 | 20-2+S,20-20+S |
| 2-303-P | 300 | 336 | 4 | 32 | 8 | 19 | 4 | 20-2+S,20-20+S |
| 3-203-P | 200 | 244 | 6.5 | 35 | 17 | 52 | 6.5 | 20-3+S,20-30+S |
| 3-303-P | 300 | 340 | 6.5 | 35 | 17 | 52 | 6.5 | 20-3+S,20-30+S |
| 3-403-P | 400 | 440 | 6.5 | 35 | 17 | 52 | 6.5 | 20-3+S,20-30+S |
| 3-503-P | 500 | 500 | 6.5 | 35 | 17 | 52 | 6.5 | 20-3+S,20-30+S |
| 1-93-S | 100 | 127 | 3 | 30 | 7 | 14 | 3 | 30-1+S,30-10+S |
| 1-193-S | 200 | 227 | 3 | 30 | 7 | 14 | 3 | 30-1+S,30-10+S |
| 1-253-S | 250 | 277 | 3 | 30 | 7 | 14 | 3 | 30-1+S,30-10+S |
| 2-153-S | 150 | 186 | 4 | 32 | 8 | 19 | 4 | 30-2+S,30-20+S |
| 2-303-S | 300 | 336 | 4 | 32 | 8 | 19 | 4 | 30-2+S,30-20+S |
| 3-203-S | 200 | 244 | 6.5 | 35 | 17 | 52 | 6.5 | 30-3+S,30-30+S |
| 3-203-S | 200 | 244 | 6.5 | 35 | 17 | 52 | 6.5 | 30-3+S,30-30+S |
| 3-303-S | 300 | 340 | 6.5 | 35 | 17 | 52 | 6.5 | 30-3+S,30-30+S |
| 3-403-S | 400 | 440 | 6.5 | 35 | 17 | 52 | 6.5 | 30-3+S,30-30+S |
| 3-503-S | 500 | 500 | 6.5 | 35 | 17 | 52 | 6.5 | 30-3+S,30-30+S |

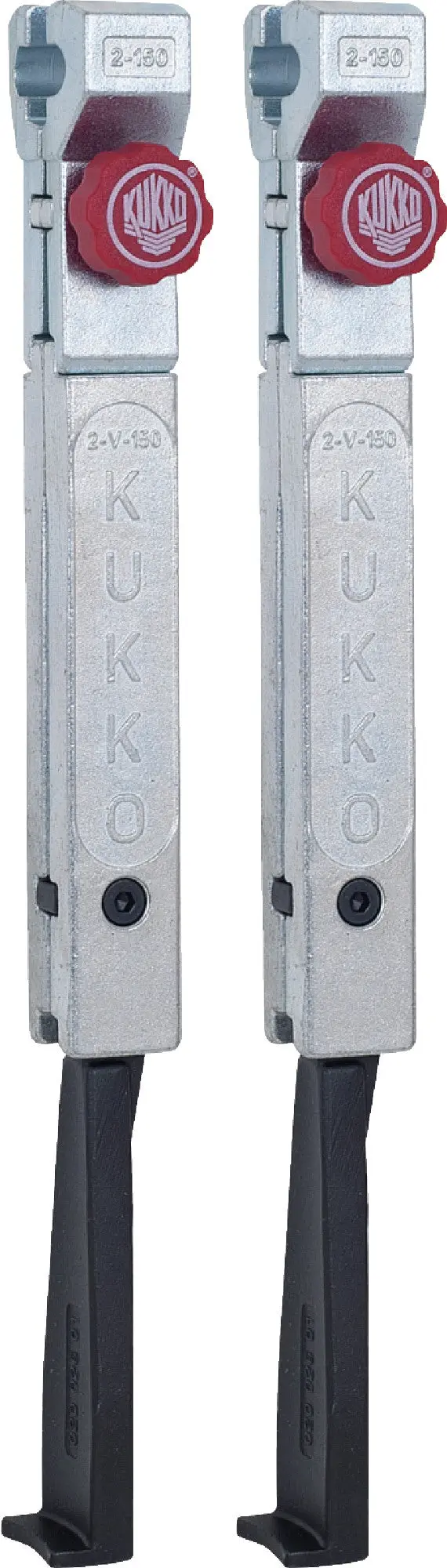

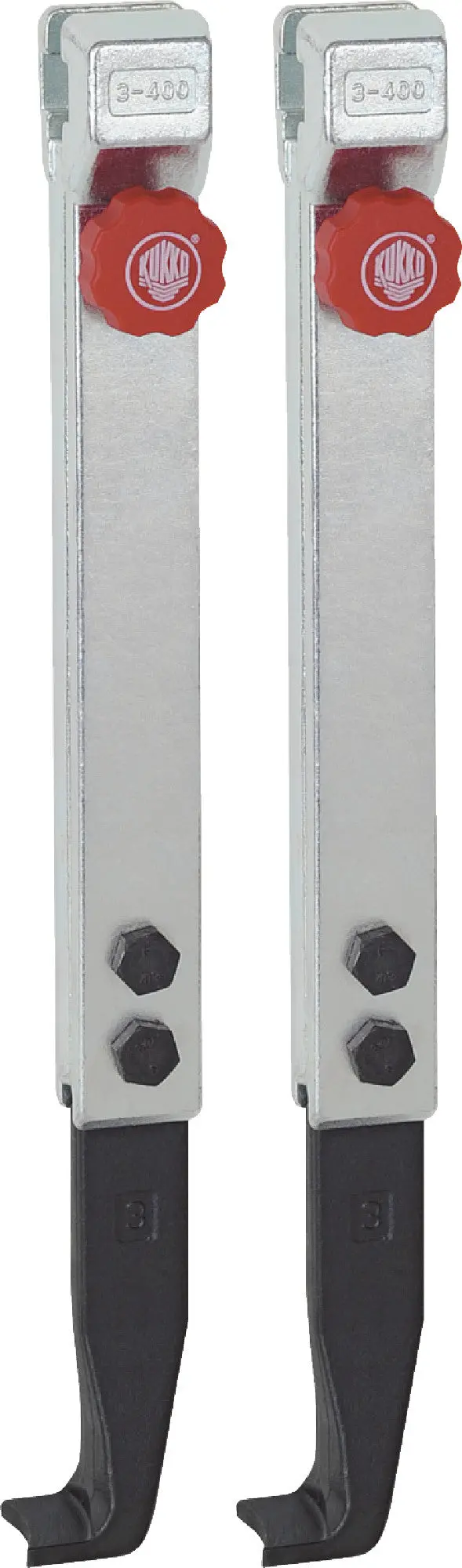

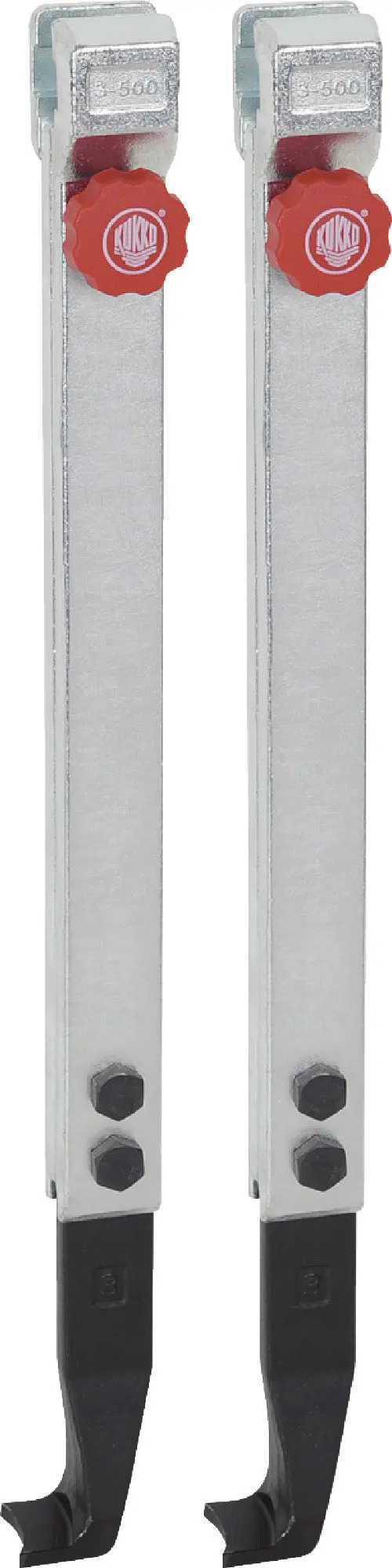

* -P = For 2-jaws (2 jaws are included per 1pc)

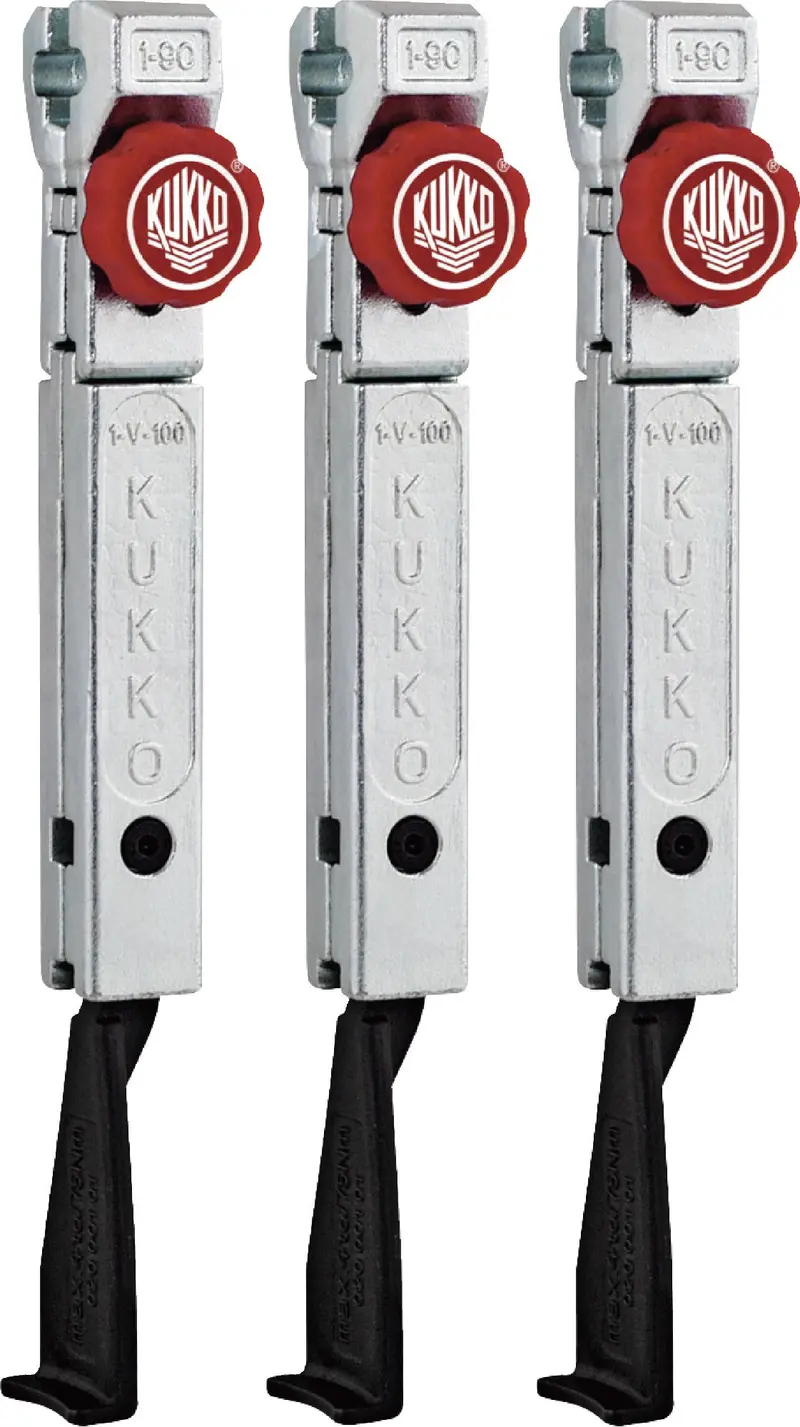

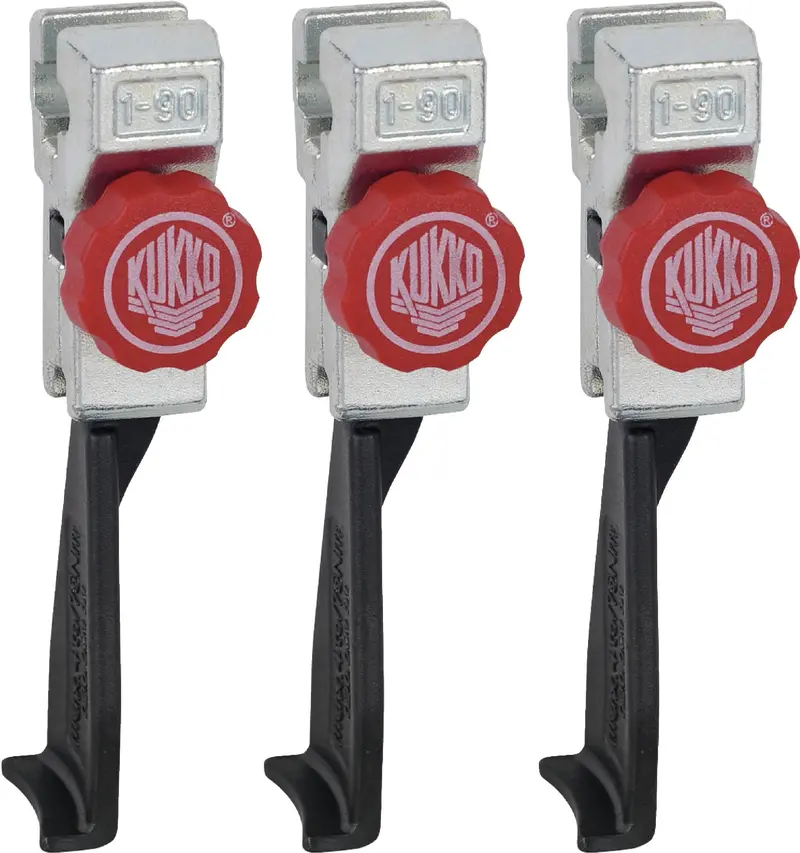

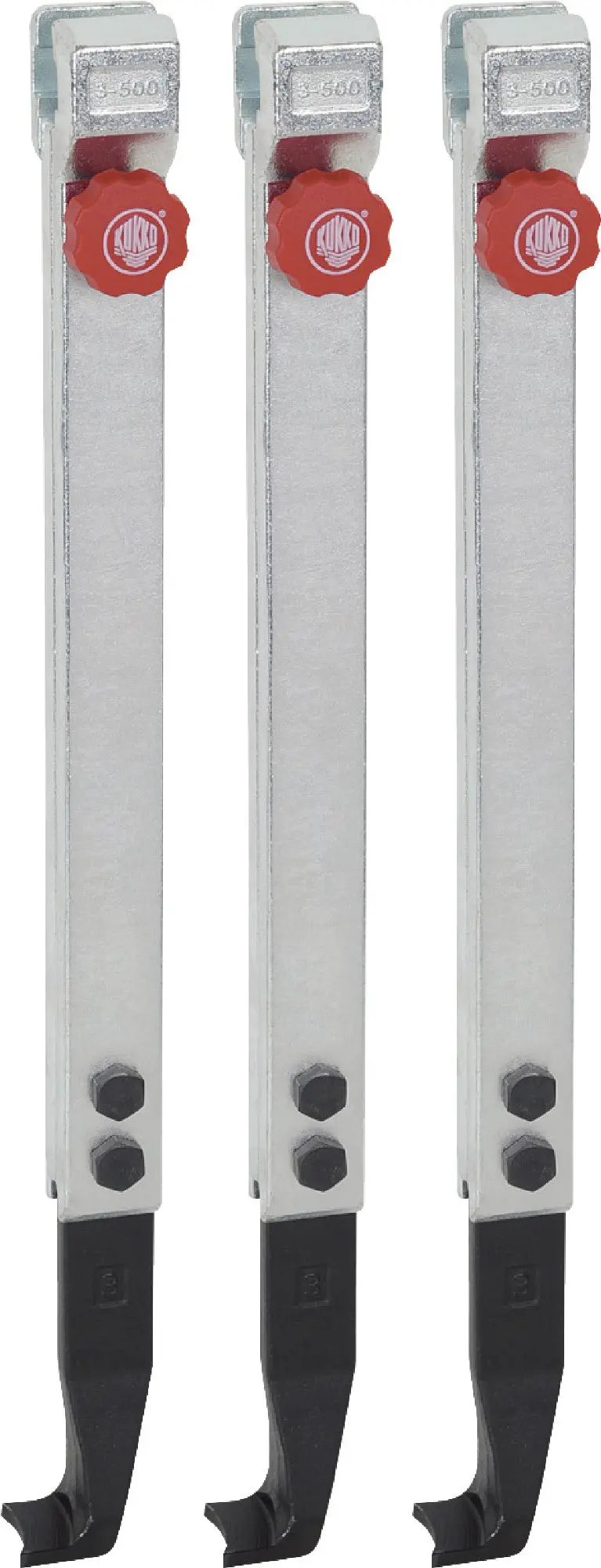

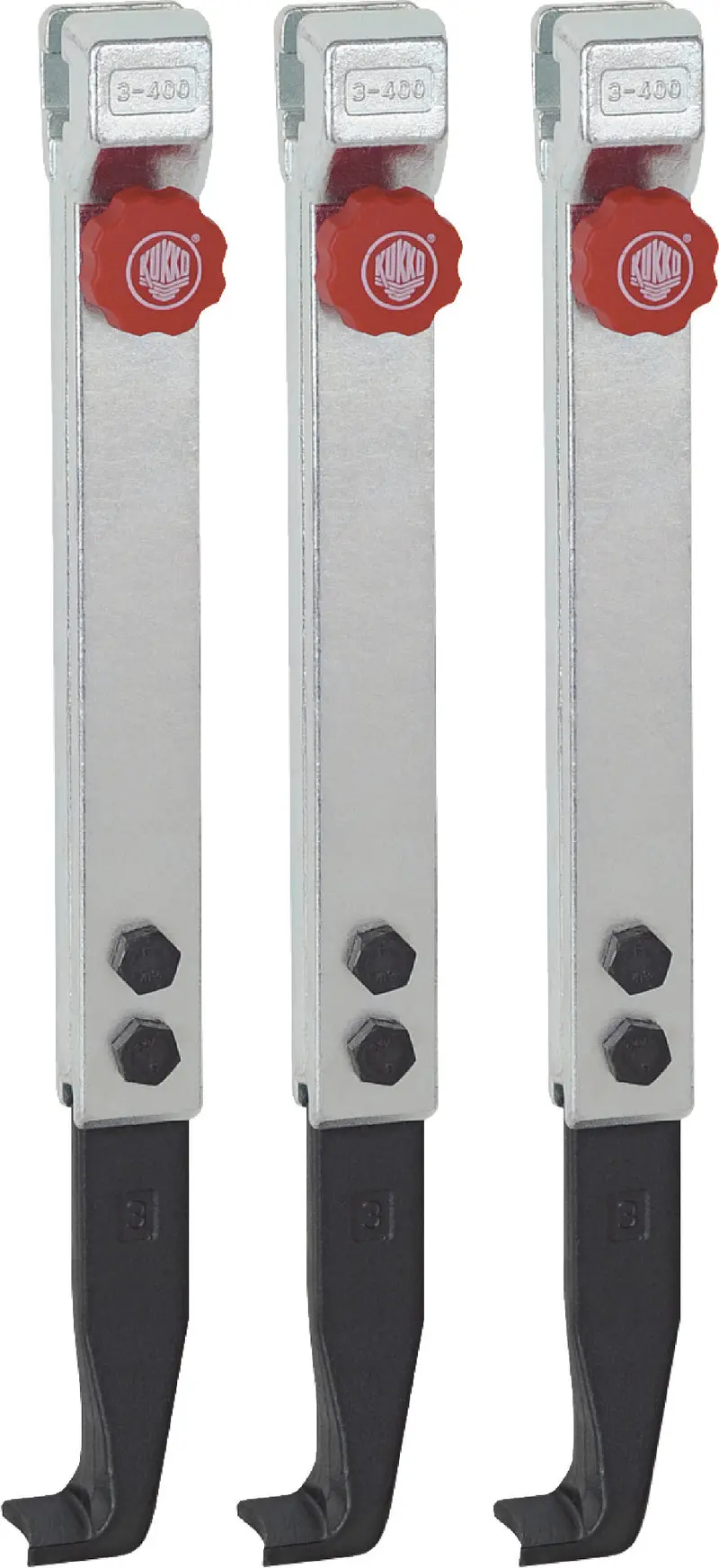

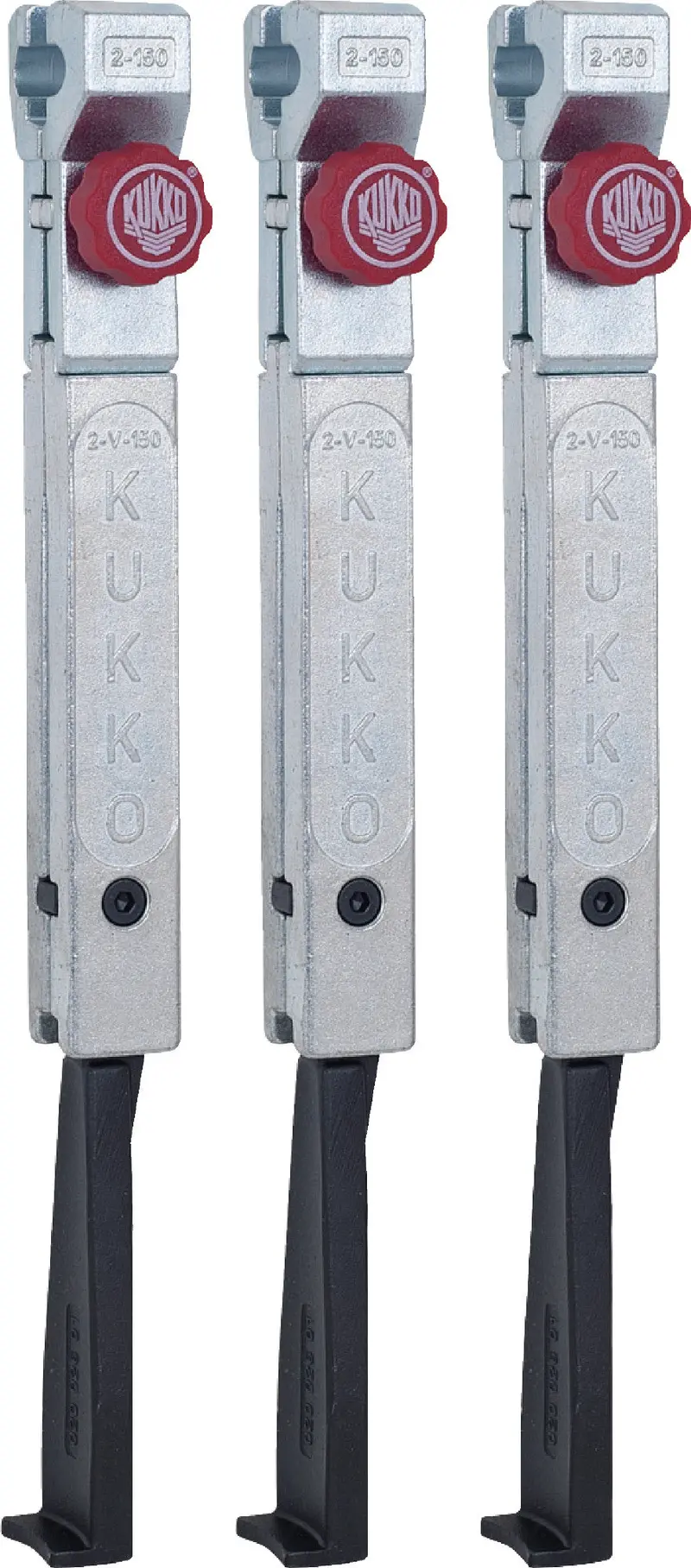

* -S = For 3-jaws (3 jaws are included per 1pc)
Description :
The narrow jaws ensure that even tight and hard-to-reach spaces can be accessed.
Advantage :
・Through the freely movable, sliding jaws on the crossbar, even eccentric components can be pulled off.
・Thanks to the knurling, tool-free, quick loosening or moving of the jaws is made possible.
