Description
Wide range of available as Japanese high quality products
Equipment : KUKKO – Hydraulic Spindle
KMVL P/N & Description : Below
【STANDARD】
| Parts number |
Bolt size (mm) |
Bolt Head (mm) |
Max. Tensile force (kN) |
Max. Tractive force (t) |
Suitable for |
| 8-01 | G1/2″ | T-handle | 100 | 10 | 12-4,12-5,18-2 20-2,20-20 20-20-3,30-2 30-2-3,30-20 41-5,42-5 205-02,206-02 207-02 |
| 8-02 | G3/4″ | T-handle | 120 | 12 | 12-6,12-7 18-3,20-3 20-30,30-3 205-1,205-2 205-3,206-1 206-2,206-3 207-1,207-2 207-3 |
【LONG】
| Parts number |
Bolt size (mm) |
Bolt Head (mm) |
Max. Tensile force (kN) |
Max. Tractive force (t) |
Suitable for |

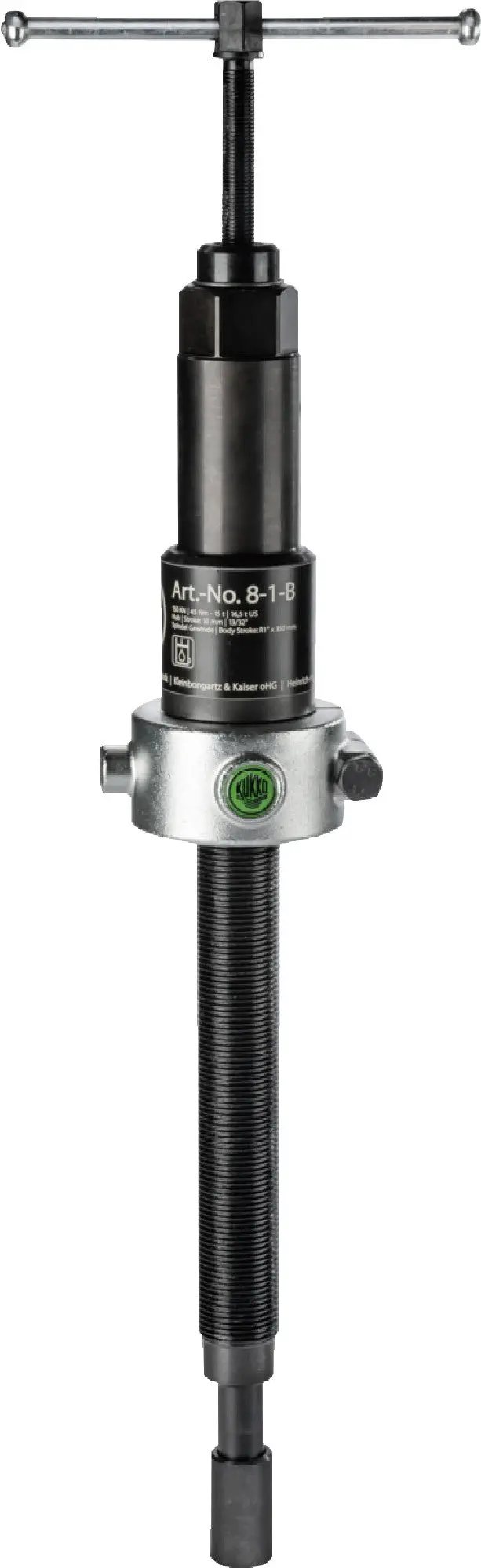

| 8-1-B | G1″ | T-handle | 150 | 15 | 11-0,18-4 20-4,20-40 |
| 8-1-F | G1″ | T-handle | 150 | 15 | 46-1,46-2 47-1,47-2 |
| 8-2-K | G1″ 1/8 | T-handle | 200 | 20 | 11-1A,11-2A |
| 8-2-M | G1″ 1/8 | T-handle | 200 | 20 | 18-5,20-5 |
【SHORT】
| Parts number |
Bolt size (mm) |
Bolt Head (mm) |
Max. Tensile force (kN) |
Max. Tractive force (t) |
Suitable for |

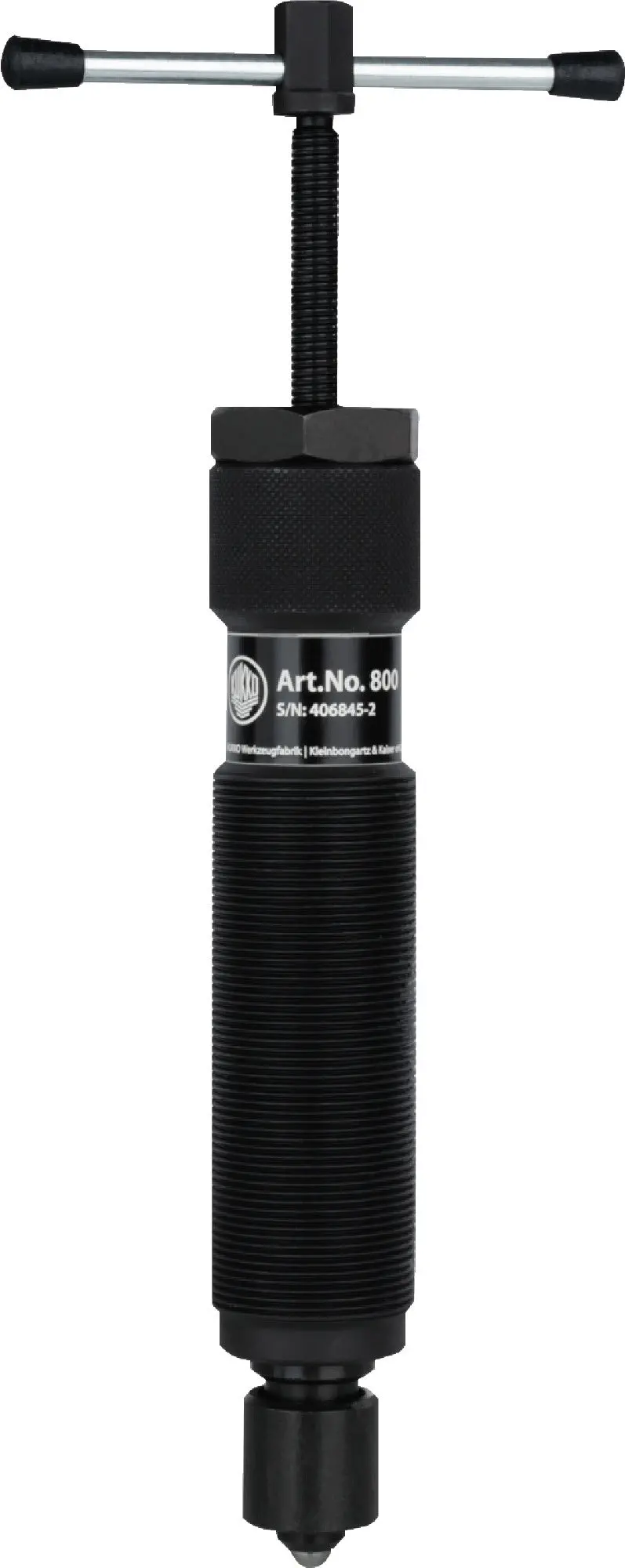

| 800 | W1.1/2″-16 | 13 | 100 | 10 | |
| 801 | W1.1/2″-16 | 19 | 150 | 15 | |
| 802 | M40-1.5 | 19 | 200 | 20 |
Description :
The hydraulic spindle is the motor of the Puller and achieves a high tension force. The hydraulic spindle is suitable for pulling particularly stubborn bearings, gears, and discs that cannot be loosened with pure muscle power.
Advantage :
• The hydraulic spindle enables easy and controlled removal of particularly stubborn parts with minimal effort.
