Description
Wide range of available as Japanese high quality products

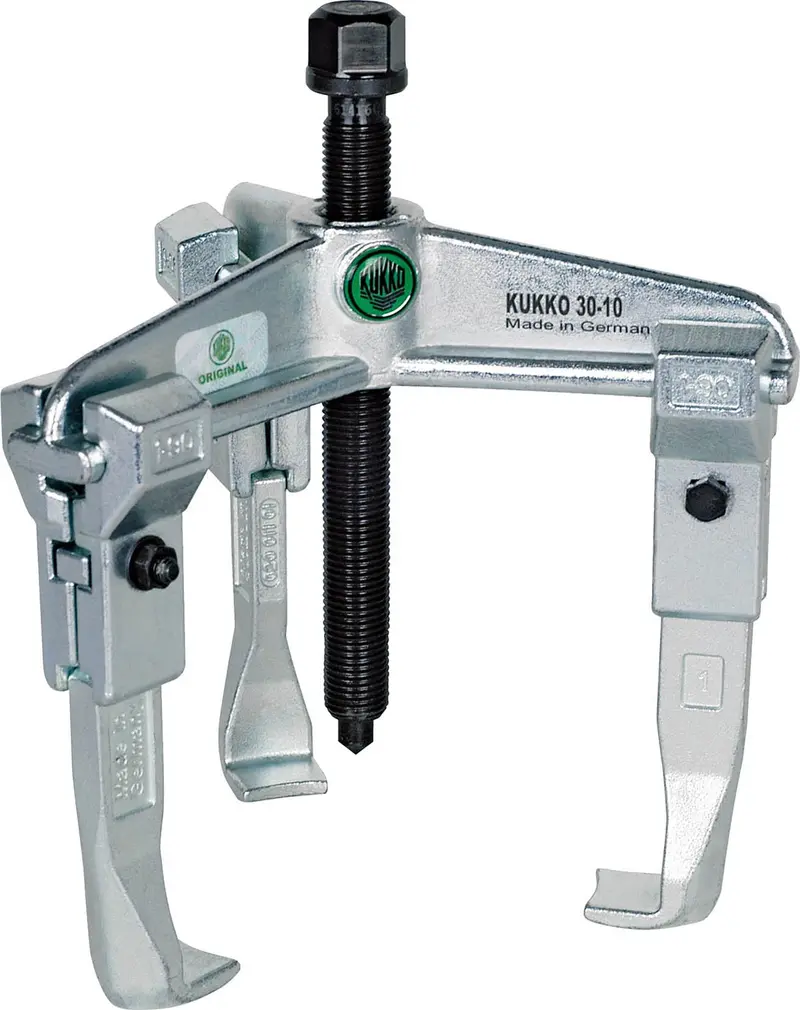

Equipment : KUKKO – 3-jaw Pullers
KMVL P/N & Description : Below
| Parts number |
External Pulling Capacity (mm) |
Arm Length (mm) |
Maximum Load (t) |
Spindle Parts Number |
| 30-1 | 27-90 | 100 | – | 614135 |
| 30-1-2 | 27-90 | 200 | – | 614160 |
| 30-10 | 27-130 | 100 | – | 614135 |
| 30-10-2 | 27-130 | 200 | – | 614160 |
| 30-2 | 35-160 | 150 | – | 621220 |
| 30-2-3 | 35-160 | 300 | – | 621220 |
| 30-20 | 35-200 | 150 | – | 621220 |
| 30-20-3 | 35-200 | 300 | – | 621220 |
| 30-3 | 46-250 | 200 | – | 626300 |
| 30-3-25 | 35-250 | 250 | – | 626300 |
| 30-3-3 | 46-250 | 300 | – | 626300 |
| 30-3-4 | 46-250 | 400 | – | 626300 |
| 30-3-5 | 46-250 | 500 | – | 626300 |
| 30-30 | 350 | 200 | – | 633400 |
| 30-4 | 170-375 | 200 | – | 633400 |
| 30-40 | 190-520 | 200 | – | 637350 |
Description :

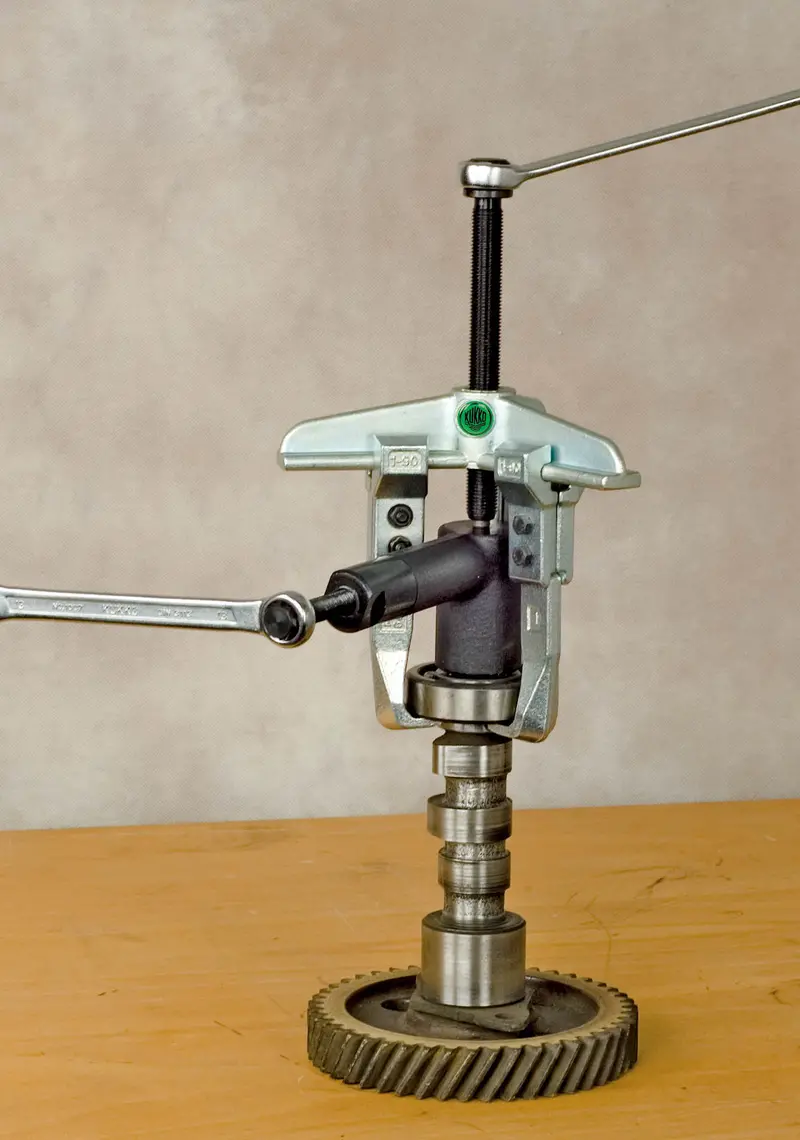

• For removing bearings, gears, discs, etc
• Standard pulling hook.
• Parallel pulling hooks in every position, even with full load.
• Pulling hooks with infinitely variable adjustment on the cross-beam.
• Optimal adjustment of the spindle to the shaft with 2-sided spindle tip.
• Mechanical pressure screw.
Advantage :
• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
• Turning the pulling hooks enables them to be used both internally and externally.
• Suitable for pulling asymmetric workpieces.
• Spindle head band prevents the wrench from slipping off.
• almost all components available as replacement parts, time-saving order process thanks to numbering system.
If you have any questions, please do not hesitate to contact us!
