Description
Wide range of available as Japanese high quality products

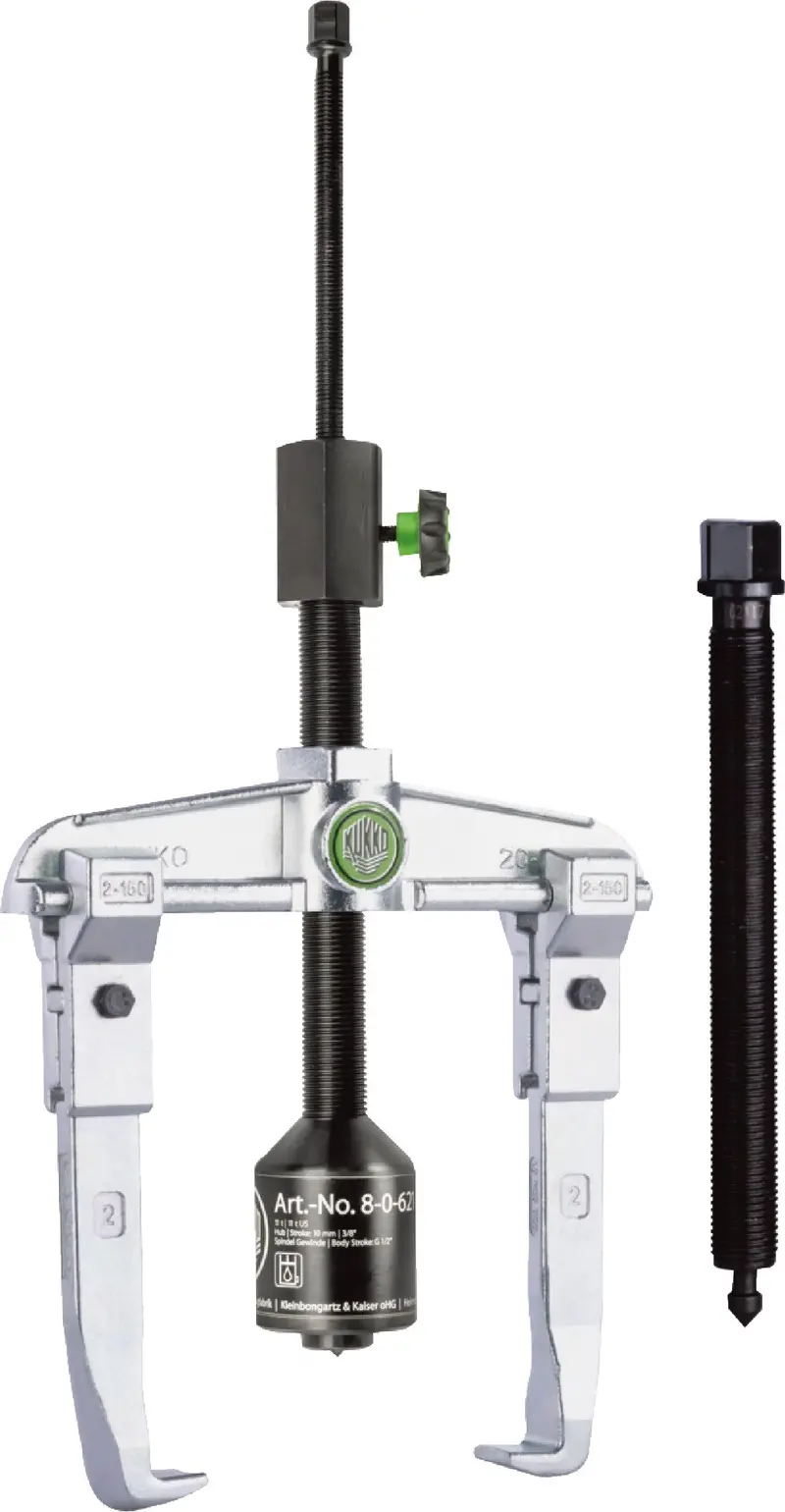

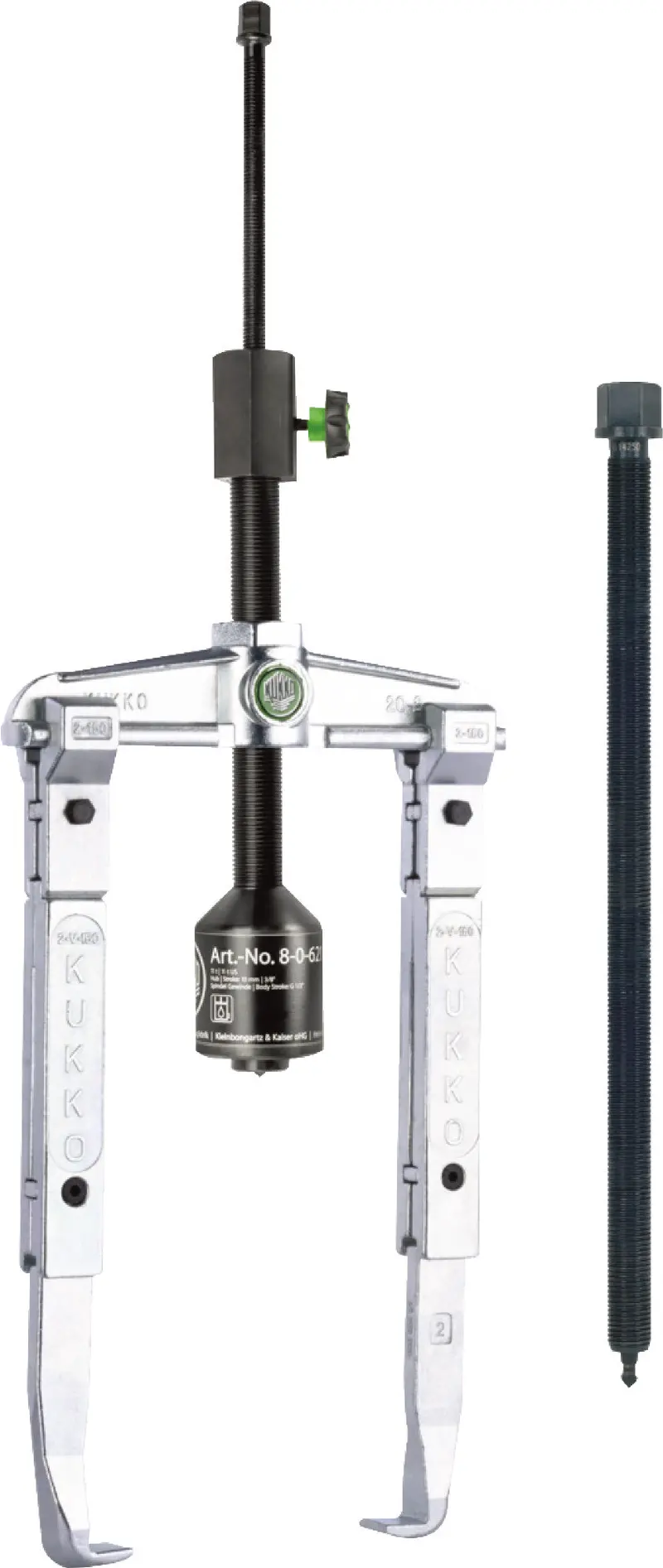

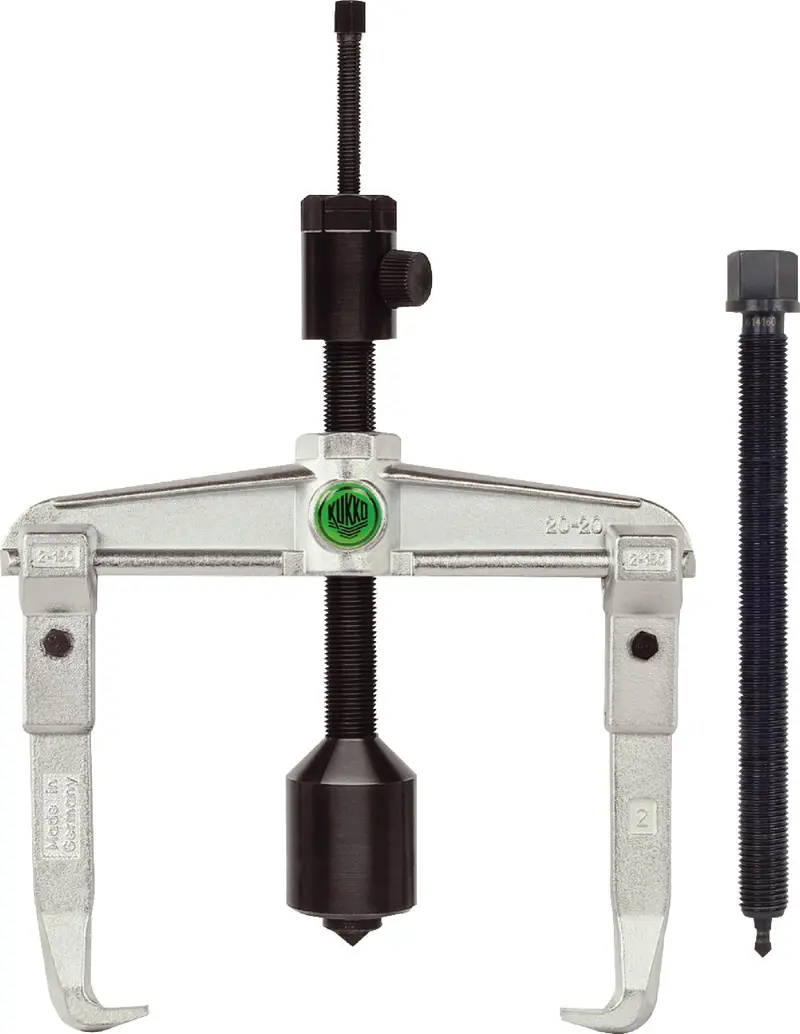

Equipment : KUKKO – 2-jaw Pullers with Long Hydraulic Spindle
KMVL P/N & Description : Below
| Parts number |
External Pulling Capacity (mm) |
Arm Length (mm) |
Maximum Load (t) |
Spindle Parts Number |
| 20-2-B | 40-160 | 150 | 7 | 8-01 |
| 20-20-B | 40-200 | 200 | 7 | 8-01 |
| 20-3-B | 65-250 | 200 | 10 | 8-02 |
| 20-30-B | 65-350 | 200 | 10 | 8-02 |
| 20-4-B | 80-520 | 300 | 15 | 8-1-B |
| 20-40-B | 80-650 | 200 | 15 | 8-1-B |
Description :
• For removing bearings, gears, discs, etc
• Grease hydraulics.
• Standard pulling hook.
• Parallel pulling hooks in every position, even with full load.
• Pulling hooks with infinitely variable adjustment on the cross-beam.
• Hydraulic and mechanical pressure screw.
Advantage :
• Easy and even pulling for particularly tight parts.
• Variable reach thanks to jaw extensions, available up to a puller size of -30.
• Optional conversion to various jaw types for mechanical use.
• Turning the pulling hooks enables them to be used both internally and externally.
• Suitable for pulling asymmetric workpieces.
If you have any questions, please do not hesitate to contact us!
