Description
Wide range of available as Japanese high quality products
Equipment : KUKKO – 3-jaw Pullers with Quickly Adjustable Jaws
KMVL P/N & Description : Below
| Parts number |
External Pulling Capacity (mm) |
Internal Pulling Capacity (mm) |
Arm Length (mm) |
Maximum Load (t) |
| 30-1+ | 15-90 | 70-140 | 100 | 6 |
| 30-10+ | 20-130 | 70-180 | 100 | 6 |
| 30-2+ | 25-160 | 100-220 | 150 | 9 |
| 30-20+ | 25-200 | 100-260 | 150 | 9 |
| 30-3+ | 50-250 | 180-340 | 200 | 11 |
| 30-30+ | 50-350 | 180-440 | 200 | 11 |
Description :

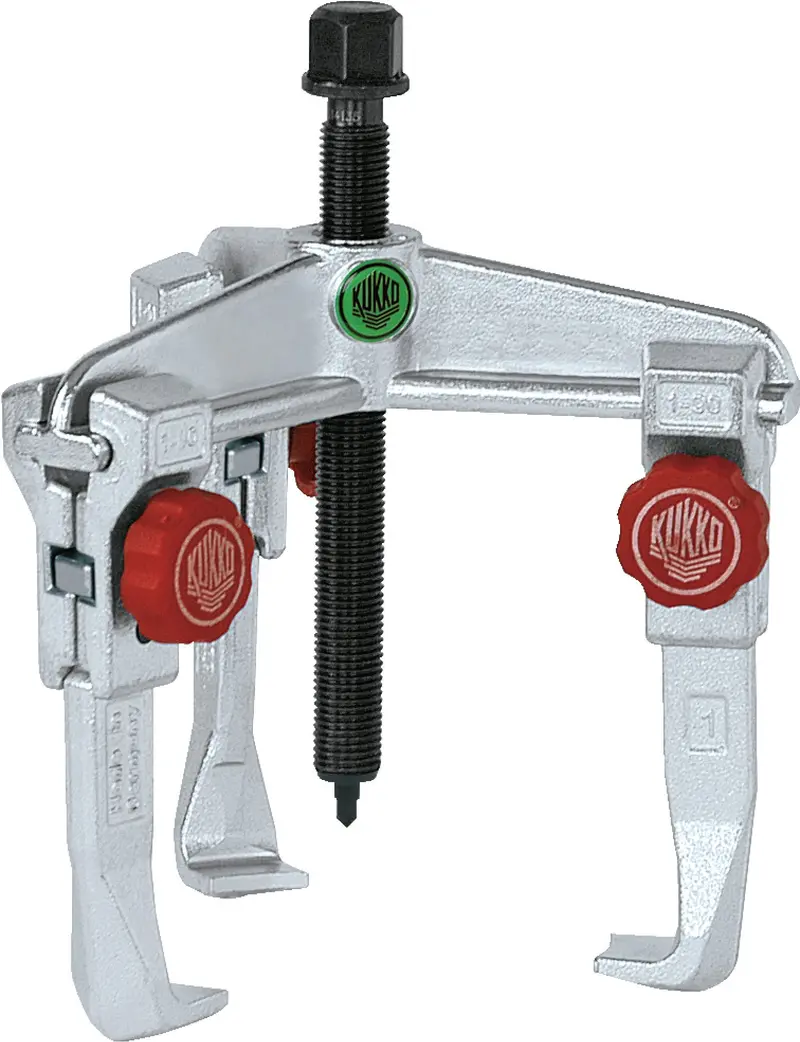

The 3-jaw universal puller with quickly adjustable jaws is used for removing bearings, gears, and discs in all common sizes. This allows for loosening any component that is mounted on a shaft and freely accessible from the outside.
Advantage :
• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
• Simple manual release of the jaws using hand knobs (Quick Adjust Technology).
• 3-jaw ensures an even distribution of force and allows for greater pulling forces.
• Application also for eccentric components through freely movable, sliding puller jaws on the crossbar.
• Hexagonal profile on the crossbar for secure counterholding.
• Quick-adjustable jaws guarantee immediate adjustment to any spread between 0 mm – 375 mm.
If you have any questions, please do not hesitate to contact us!
