Description
Wide range of available as Japanese high quality products
Equipment : KUKKO – 3-jaw Pullers with Hydraulic Spindle / Extra Strong
KMVL P/N & Description : Below
| Parts number |
External Pulling Capacity (mm) |
Internal Pulling Capacity (mm) |
Arm Length (mm) |
Maximum Load (t) |
| 11-0-B | 105-375 | 220-500 | 200 | 15 |
| 11-1-B | 125-520 | 280-600 | 200 | 20 |
| 11-2-B | 155-650 | 290-740 | 200 | 20 |
| 11-3-B | 155-650 | 290-740 | 500 | 20 |
Description :

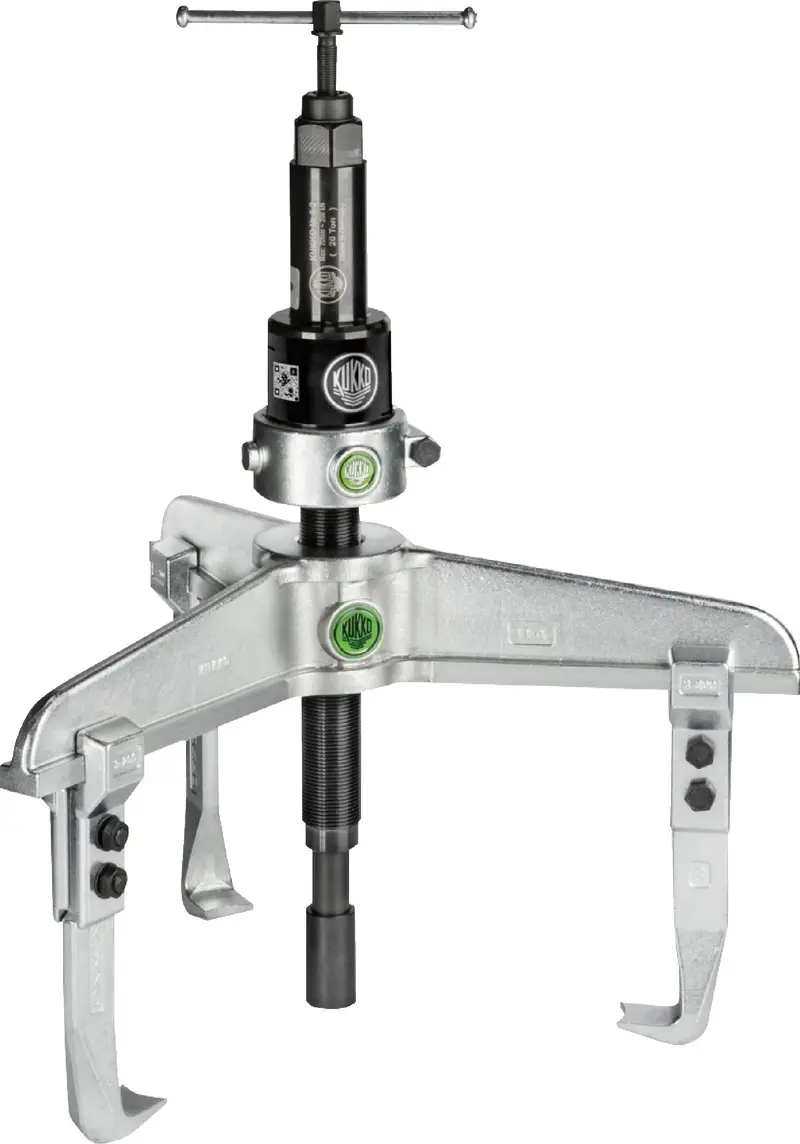

The extra powerful, 3-jaw universal pullers with hydraulic spindle are used for pulling heavy, particularly stuck components. The hydraulic spindle achieves an average tension force of up to 20 t. Thanks to the massive construction, the series 11-B guarantees a particularly powerful, nondestructive disassembly.
Advantage :
• The screw connection allows easy loosening and particularly tight fastening of the jaws with an allen key.
• The hydraulic spindle ensures an easy and controlled withdrawal of particularly stubborn parts with minimal effort.
• 3-jaw provides an even distribution of force and allows for greater pulling forces.
• Application also for eccentric components through freely movable, sliding puller jaws on the crossbar.
• Variable adjustment to any span between 105 mm – 650 mm.
If you have any questions, please do not hesitate to contact us!
