Description
Wide range of available as Japanese high quality products

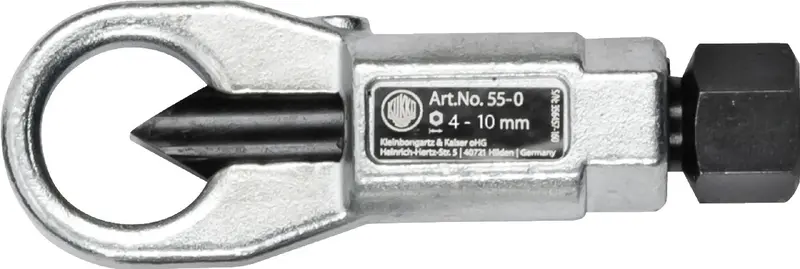

Equipment : KUKKO – Mechanic Nut Splitters / Single-edged
KMVL P/N & Description : Below
| Parts number | Applicable Nut Size (mm) |
Permissible Torque (Nm) |
Blade Width (mm) |
Overall Length (mm) |
| 55-0 | 4~10 | 15 | 8 | 58 |
| 55-1 | 10-18 | 25 | 12 | 80 |
| 55-2 | 19-27 | 75 | 14 | 105 |
| 55-3 | 27-36 | 200 | 16 | 125 |
| 55-4 | 32-50 | 900 | 26 | 203 |

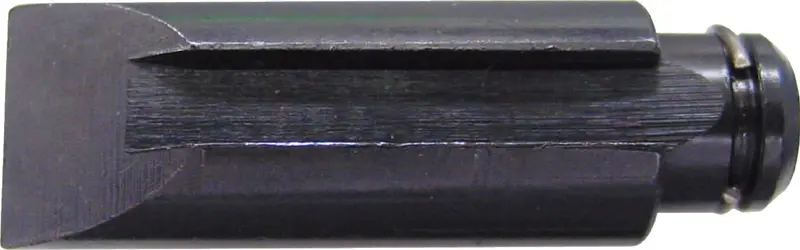

● Replacement Chisel
For 55-0 : 55-0-M
For 55-1 : 55-1-M
For 55-2 : 55-2-M
For 55-3 : 55-3-M
For 55-4 : 55-4-M
Description :
• For splitting tight or over-twisted nuts without damaging the bolt thread of quality grades 5, 6.
• Hardened chisel cutting edge.
• Gently turn the chisel in the other direction by pulling back.
• The blade can be easily replaced if it becomes dull, chipped, or cracked.
• Designed exclusively for steel (carbon steel) nuts.
Advantage :
• The nut splitter’s band provides additional support when turning the chisel back.
• Chisel available as a replacement part, time-saving order process thanks to numbering system.
Note :
※ Not suitable for use with carbon steel nuts that have been heat-treated (hardened and tempered).
※ Damage to the chisel is not covered under warranty.
