Description
Wide range of available as Japanese high quality products
Equipment : KUKKO – Mechanic Nut Splitters / Double-edged
KMVL P/N & Description : Below
| Parts number | Applicable Nut Size (mm) |
Blade Width (mm) |
Overall Length (mm) |
Wrench Size (mm) |

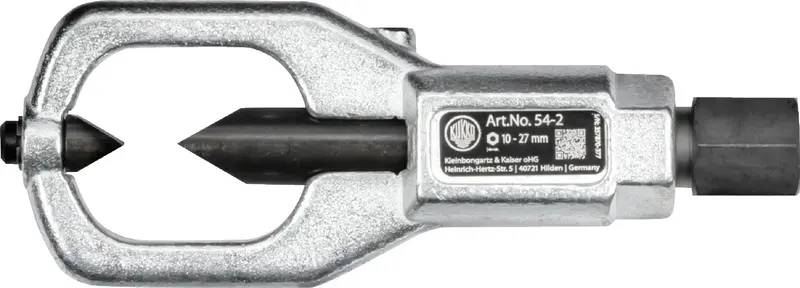

| 54-2 | 10~27 | 14 | 109 | 17 |
| 54-3 | 17-36 | 16 | 134 | 19 |
● Replacement Chisel
For 54-2 : 54-2-M
For 54-3 : 54-3-M
| Parts number | Description | Set Contents (mm) |

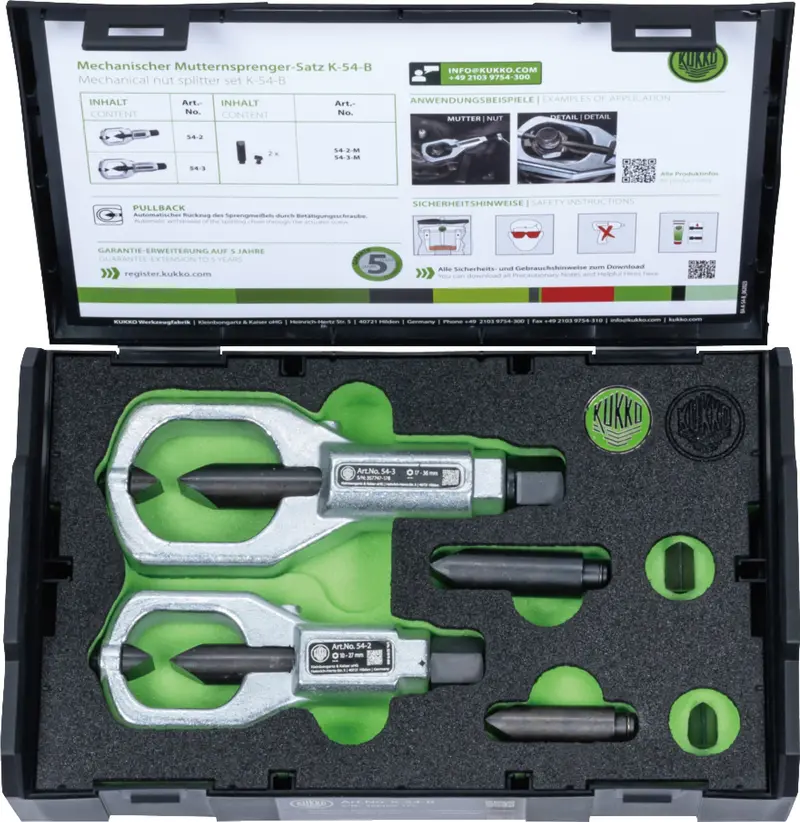

| K-54-B | Mechanical Nut Splitter Set Set : 6PCS |
1) Mechanic Nut Splitters ・54-2 x 1pc ・54-3 x 1pc 2) Replacement Chisel ・54-2-M x 1pc ・54-3-M x 1pc 3) Spanner ・1007-17 x 1pc ・1007-19 x 1pc 4) Mini-Tool Box |
Description :
• Double-edged models exerting twice the normal splitting force on irretrievable nuts in quality classes 5, 6 and 8.
• Two hardened chisel cutting edges.

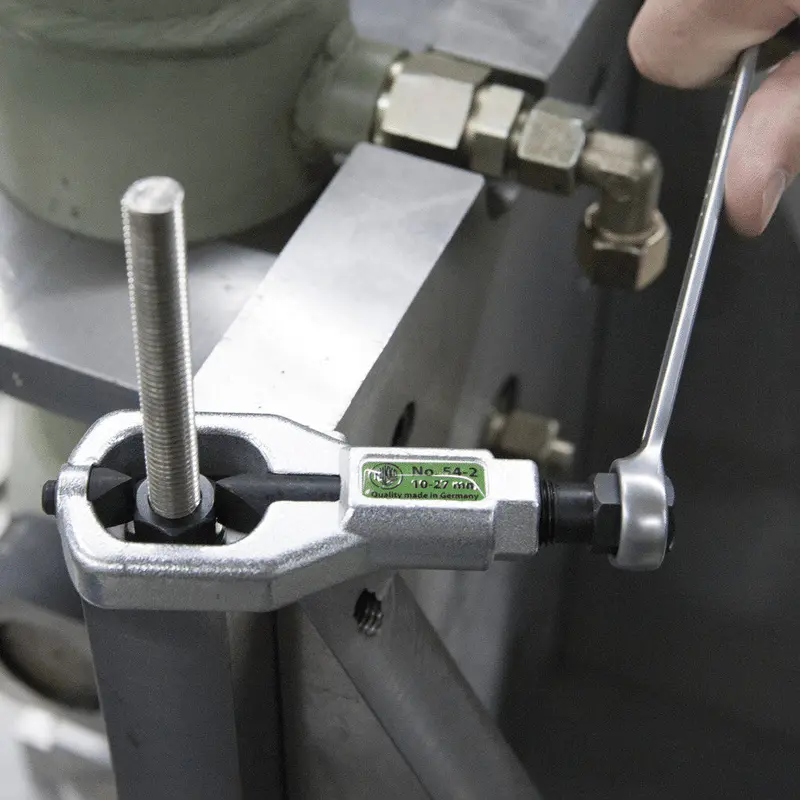

• Gently turn the chisel in the other direction by pulling back.
• The blade can be easily replaced if it becomes dull, chipped, or cracked.
• Designed exclusively for steel (carbon steel) nuts.
Advantage :
• One operation through double cutting action.

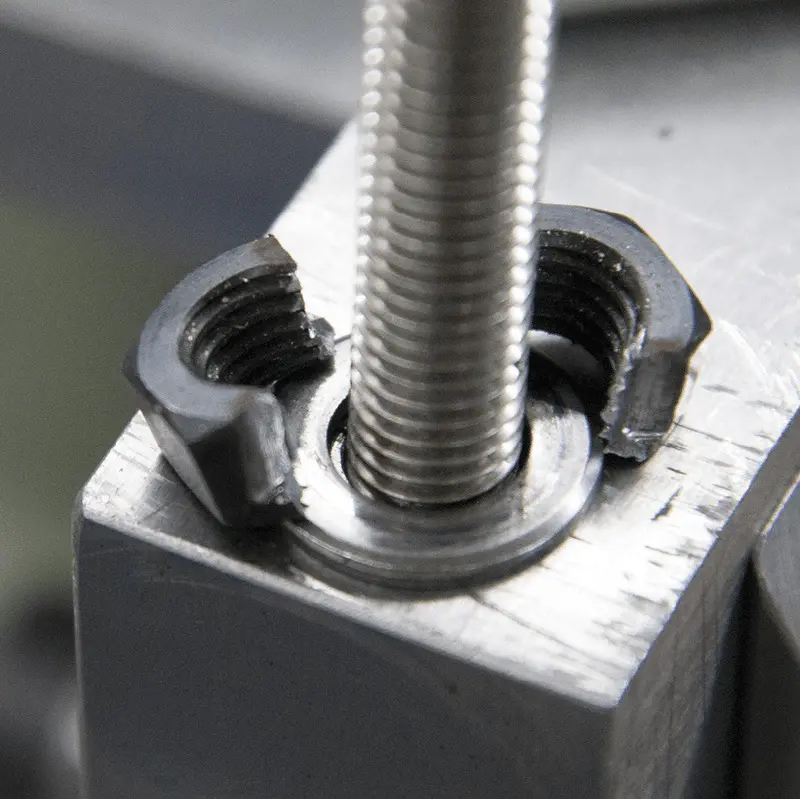

• Splitting nuts can be done without damaging the threaded bolt.
• The nut splitter’s band provides additional support when turning the chisel back.
• Chisel available as a replacement part, time-saving order process thanks to numbering system.
Note :
※ Not suitable for use with carbon steel nuts that have been heat-treated (hardened and tempered).
※ Damage to the chisel is not covered under warranty.
If you have any questions, please do not hesitate to contact us!
