Description
Wide range of available as Japanese high quality products
Equipment : KUKKO – 2-jaw Pullers with Adjustable Reach
KMVL P/N & Description : Below
| Parts number |
External Pulling Capacity (mm) |
Internal Pulling Capacity (mm) |
Arm Length (mm) |
Maximum Load (t) |
| 20-4-AV | 100-520 | 200-590 | 300-500 | 12 |
| 20-40-AV | 100-650 | 200-500 | 300-500 | 12 |
Description :

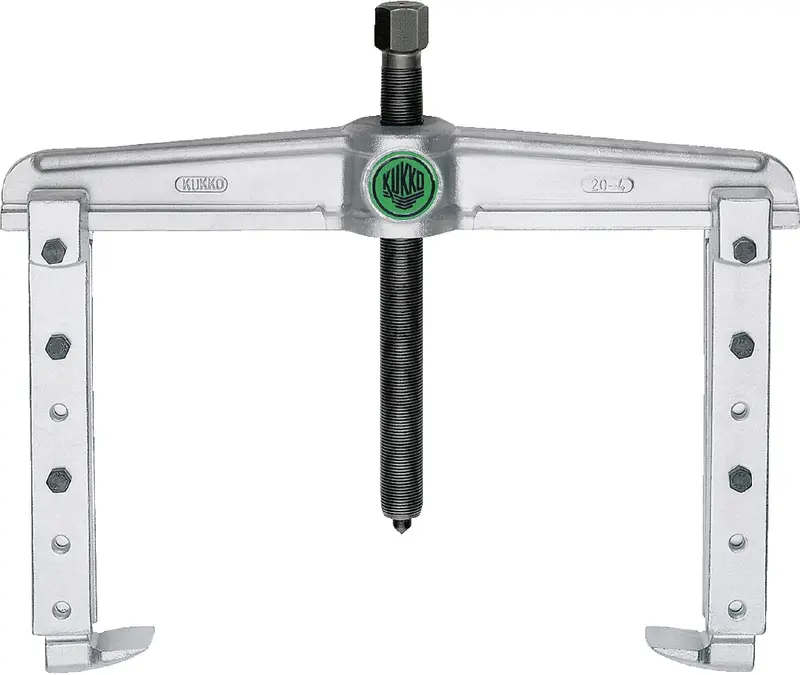

The 2-jaw universal puller with adjustable reach is used to pull bearings, gears, and discs in all common sizes. It can be used to loosen parts that sit on shafts and are freely accessible from the outside.
Advantage :
• Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
• The screw connection allows for easy loosening and particularly tight fastening of the jaws with an allen key.
• Application also for eccentric components through freely movable jaws gliding on the crossbar.
• Variable adjustment for any span between 0 mm – 650 mm as well as reach depth 500 mm.
• Secure attachment of the spindle through a rotatable spindle tip on both smooth surfaces and during centering (Switch Technology)
• Optional convertible from an external puller to an internal extractor by reversing the extractor jaws.
If you have any questions, please do not hesitate to contact us!
