Switch-Pros Bezel-Mount 8-Circuit Smart Power Distribution Panel

Description

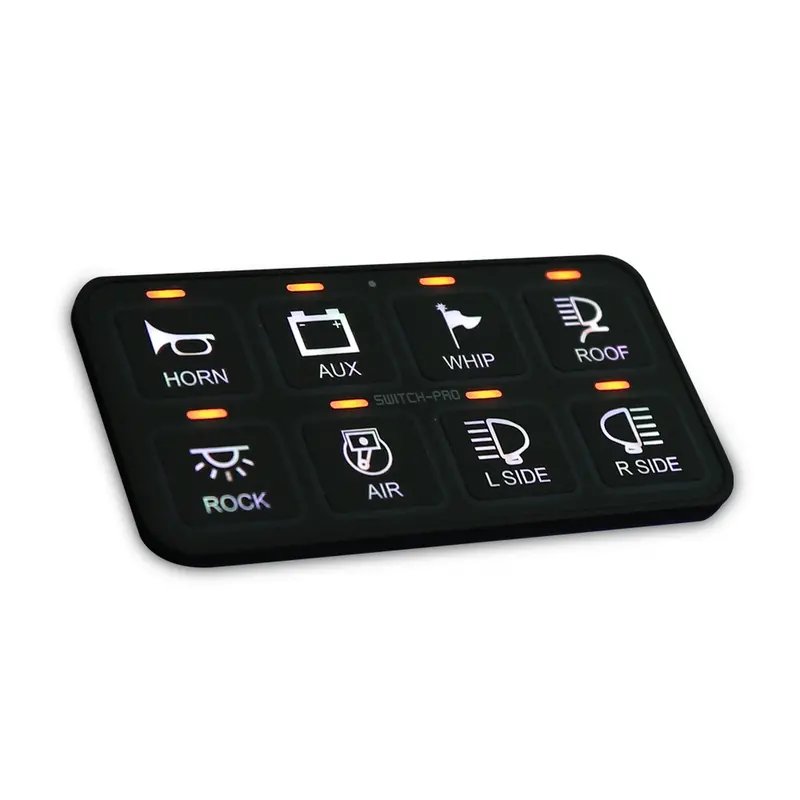

The Switch Pros Bezel Style 8-Switch Panel Power System is equipped with eight programmable switches that you as the user can customize. This durable blue-tooth compatible switch panel is waterproof, has a memory function, and you may select from 100 different selectable legends. Utilize the blue-tooth function by downloading a free app on your Apple or Android cellular device. To save on power the switch panel is equipped with a sleep mode and may be started again automatically upon vehicle start up.
Power Module Specs:

• Built-In Bezel Style Switch Panel includes concealed mounting hardware for factory-look installation.
• Orange LED switch indicators
• Four 35A circuits and four 18A circuits
• Solid State 125A Power Module
• RGB Backlighting provides unlimited color options, using Color Picker on App.
• Daisy Chain up to 3 Switch Panels to One Power Module.
• Switches can be programmed for: On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
• Master Mode, with the ability to turn multiple outputs On AND Off with one-touch
• Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Lighting outputs can dim from 100% to 10%, with the ability to dim during Flash or Strobe patterns
• Color-Coded circuit wires
• LED Input Status Indicators for easy troubleshooting
• Time Delay Off function available for all circuits
• Splash proof switch panel with Polycarbonate overlay faceplate
• Program and control the system from switch panel pad or smartphone
• Battery Voltage Readout on App screen
• No Fuses or Bulky Relay box

Switch Panel Specs:

• RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
• 8 Outputs: 4 rated @ 35A, 4 rated @ 18A
• 125A maximum rating
• Waterproof and Solid State
• LED Input Status Indicators for easy troubleshooting
• Underhood rated 125° to -40°C

 Kit Also Includes:

• 11 feet of Communication Cable between Switch Panel and Power Module
• Color-Coded Output wires
• Wire harness with Waterproof, sealed automotive grade connectors
• Power Cable with 125A inline fuse

Dimensions:

• Excluding Connectors
• Length: 6”
• Width: 3”
• Height: 0.5”

• Enclosure Measurements:
• Length: 4”
• Width: 2”
• Height: 0.375”
