Bulldog Winch 145 PSI On-Board Air System Kit – Constant Duty Rated

Description

The Bulldog Winch 145 PSI Constant Duty On-Board Kit has multiple purposes such as, tire inflation, use for power lockers, air horns, and small air tools. Complete with a 2.5-gallon air tank, this kit includes all the essentials needed to install a premium onboard air system to your vehicle.
Features:

• 145 PSI Maximum Working Pressure
• 1.8 CFM Constant Duty Compressor with IP67 rating for under-body mounting
• Air Tank with air line and quick connect
• In-Cab Gauge and ON/OFF switch

Compressor and related parts:

• 1.8 CFM/200 PSI air constant duty compressor IP67
• Air filter elements
• Remote inlet air filter assembly with 6.5ft air hose
• Air hose clips and lead hose clip
• 20ft power wire with in-line fuse
• 60A relay
• Mounting hardware

Tank and Related Parts:

• 2.5 Gallon/200 PSI rated air tank with 10 bungs (8×1/4NPT, 2×3/8NPT)
• Air hose
• Sealed pressure switch 110 PSI ON / 145 PSI OFF
• 1/4NPT Drain Cock
• 1/4NPT Safety Valve 180 PSI
• 1/4NPT Quick Connect stud(F)
• 1/4NPT Quick Connect stud(M)
• 1/4NPT Compression Fitting
• 1/4NPT Quick Connect Coupler(F)

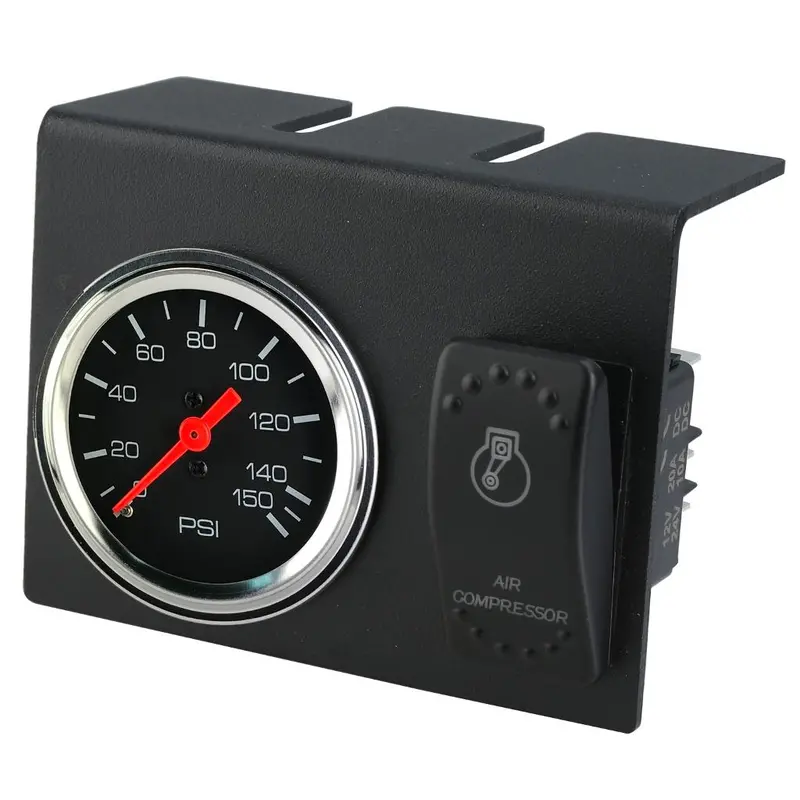

• 150 PSI In-Cab Analog Pressure Gauge, mechanical with ON/OFF Switch and Mounting Bracket
• Mounting Hardware

Dimensions:

• Air Hose:
• Length: 19.7 ft
• Air Tank:
• Capacity: 2.5 gallon
