Description

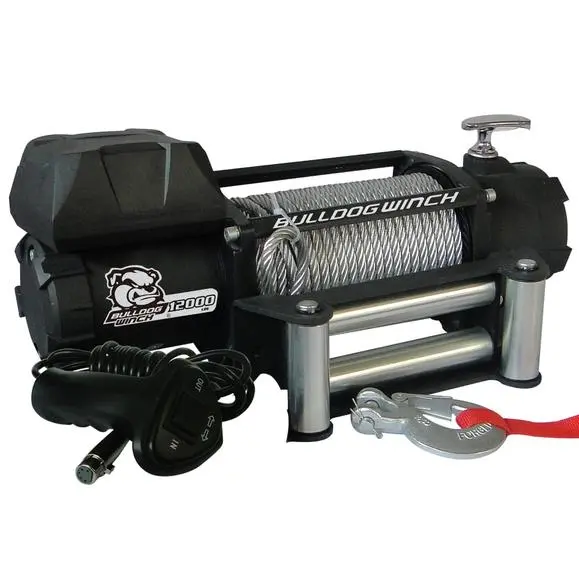

The Bulldog Winch 12,000lb Winch w/ Wire Rope has a premium 6.0HP 12vDC series wound motor and a three-stage planetary gear train with a gear ratio of 265:1. The Contactor 450A switch is sealed for waterproofing and increased protection from the elements. In addition, the controller has a corded remote control with a wireless remote option.
The battery leads have (high) heat and abrasion-resistant sheathing. It is recommended that a 650CCA battery be used to power this winch.
Features:
- Power Unit Is Remote Mountable.
- Gear Box Clockable To Rotate Shifter. (Contact for Instructions).
- Clutch Freespooling
- Brake Automatic Load Hold In Drum.
- Premium Synthetic Rope
- CNC Machined Aluminum Hawse Fairlead
- Limited 2-Year Warranty.
Dimensions:
- Length: 21.7 in
- Width: 6.3 in
- Height: 8.6 in
- Rope Dimensions:
- Length: 100 ft
- Diameter: 9 mm
- Battery Leads: 6 ft
- Drum Diameter: 2.5 in
- Drum Length: 8.8 in
- Mounting Bolt Pattern: 10 in x 4.5 in
