Description

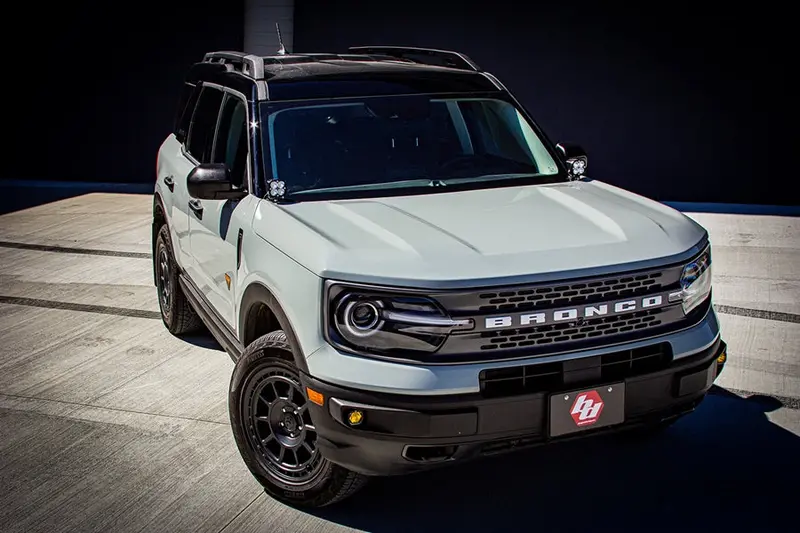

The Bronco Sport is a great platform to plan your next adventure around which is why we thought it might be necessary to offer enthusiasts a superior lighting solution. This lighting kit includes a pair of S2 Pro LED auxiliary lights in spot, along with a set of wide cornering, and Driving/Combo lenses in the case you would like to change the pattern to a more near-field orientation. The accessories included in this kit are a relay-style harness with the toggle switch and Bronco sport-specific a-pillar brackets. The installation process of this kit is extremely simple and does not require any cutting or drilling.
Baja Designs Features: • uService® – Replaceable Lenses And Optics • ClearView® – All The Light, Right Where You Need It. • MoistureBlock™ – Waterproof, Rain Proof, Submersible • CopperDrive® – Only LED Driven At 100% • 5000K Daylight – Less Driver Fatigue, Natural Color
Specifications (per light): • Lumens: 2,450 Utilizing 2 LEDs • Wattage/Amps: 24W / 1.70A • LED Life Expectancy: 49,930 Hours • Front Lens: Hard Coated Polycarbonate • Housing: Hard Anodized & Powder Coated Cast Aluminum • Bezel: Billet Machined Aluminum • Hardware & Bracket Material: Stainless Steel • Exceeds MIL-STD810G (Mil-Spec Testing) • Built-In Overvoltage Protection • IP69K (Waterproof up to 9ft & Pressure Washable) • IK10 Compliant (Mechanical Impact Testing)
Includes: • S2, Pair Spot LED • x2 S2 Wide Cornering, Clear Lenses • x2 S2 Driving/Combo, Clear Lenses • Bronco Sport A-Pillar Brackets (PS/DS) • Relay Harness with Red Toggle Switch
Patterns: Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust, and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Dimensions:Per Light:
2.93″ x 1.76″ x 1.68″ Weight: 8 ounces
