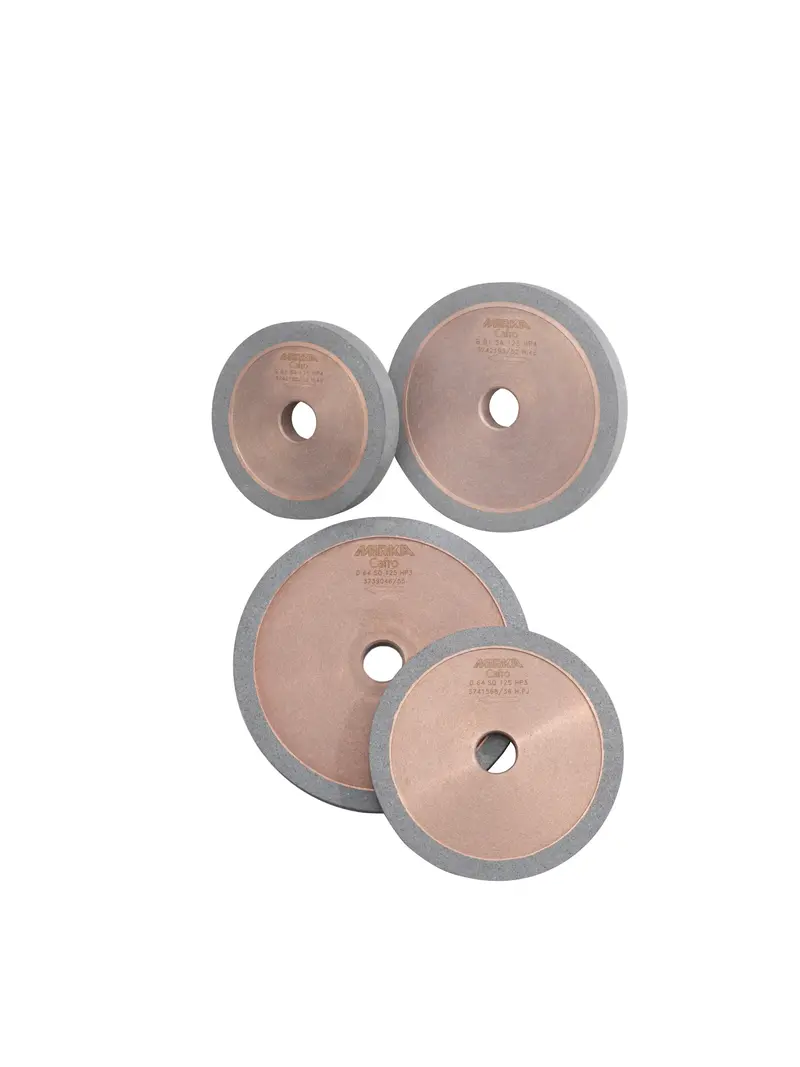

1A1 Straight Grinding Wheel – 100mm Diameter × 12mm Thickness × 10mm Bore, D64 Grit, Sq125 Concentration, Hybrid Bond M404

Description

• Imperial: 1A1 4″x.472″x.393″ T=.472″ Bore 1.25″ Grit D280 Concentration SQ125 Hybrid Bond M404 (Approx.)
• Metric: 1A1 100x12x10 T=12 Bore 31.75 Grit D64 Concentration SQ125 Hybrid Bond M404
• Most Common Application: Fluting on CNC grinding machine, with good coolant delivery lines. Excellent corner retention, better option for manufacturing and reconditioning.
• Recommended workpiece: Carbide round tools around 5/16″ OD or larger.
• Working parameters: 15 to 18 m/s = 2,953 to 3,543 ft/min
• Package dimension (mm): 134x56x134
